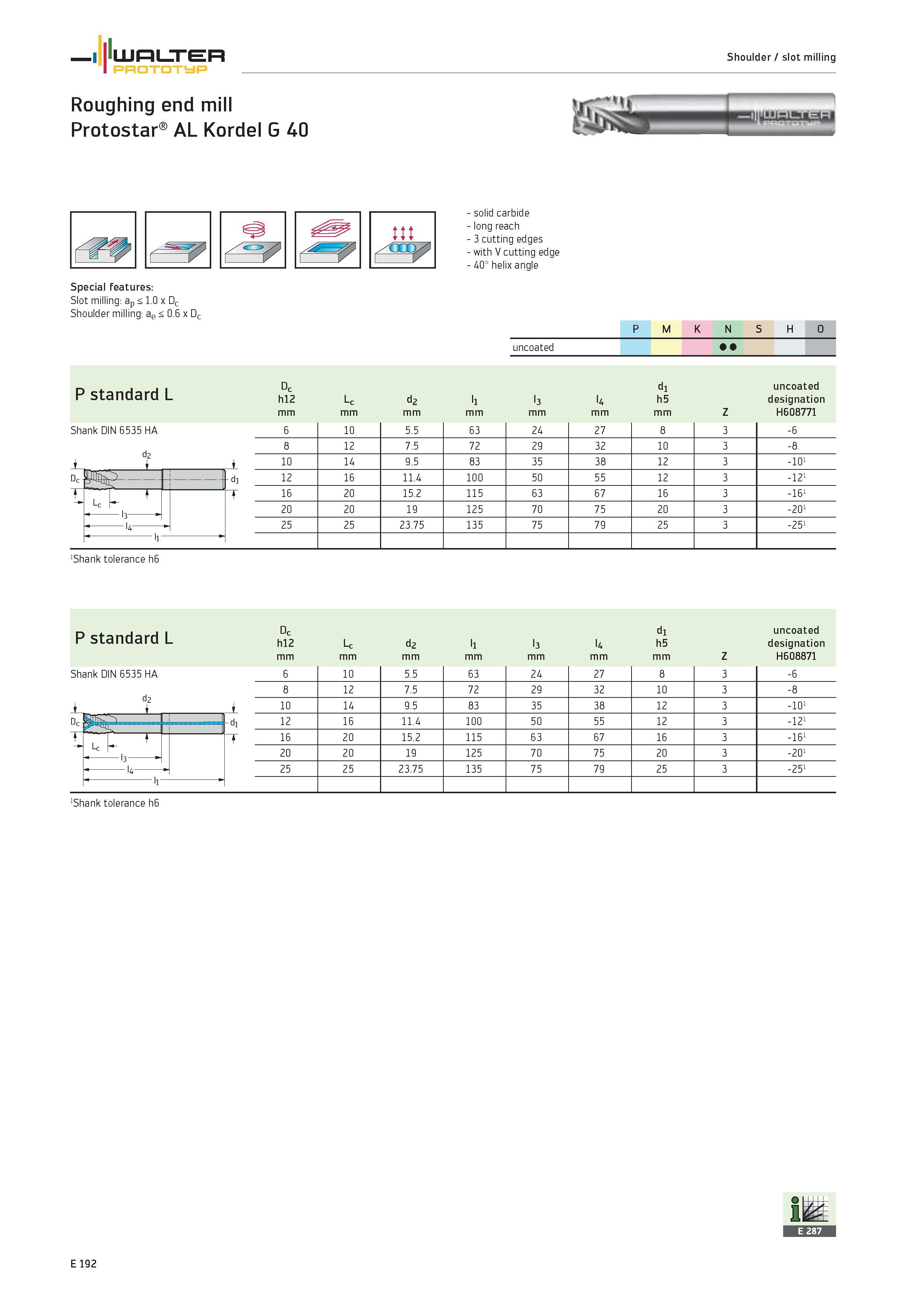

WALTER PROTOTYP Shoulder / slot milling Roughing end mill Protostar AL Kordel G 40 Special features Slot milling ap < 1.0 x Dc Shoulder milling ae < 0.6 x Dc solid carbide long reach 3 cutting edges with V cutting edge 40° helix angle 1 P M K N S H O uncoated P standard L di uncoated h12 Lc d2 li l3 U h5 designation mm Z H608771 6 10 5.5 63 24 27 8 3 -6 8 12 7.5 72 29 32 10 3 -8 10 14 9.5 83 35 38 12 3 -101 12 16 11.4 100 50 55 12 3 -121 16 20 15.2 115 63 67 16 3 -161 20 20 19 125 70 75 20 3 -201 25 25 23.75 135 75 79 25 3 -251 1Shank tolerance h6 D c P standard L Dc h12 mm Lc mm d2 mm li mm l3 mm l4 mm 15 m dhm Z uncoated designation H608871 Shank DIN 6535 HA d2 6 10 5.5 63 24 27 8 3 -6 8 12 7.5 72 29 32 10 3 -8 10 14 9.5 83 35 38 12 3 -101 Dc -d1 12 16 11.4 100 50 55 12 3 -121 t Lc t T 16 20 15.2 115 63 67 16 3 -161 20 20 19 125 70 75 20 3 -201 14 25 25 23.75 135 75 79 25 3 -251 ll 1Shank tolerance h6
