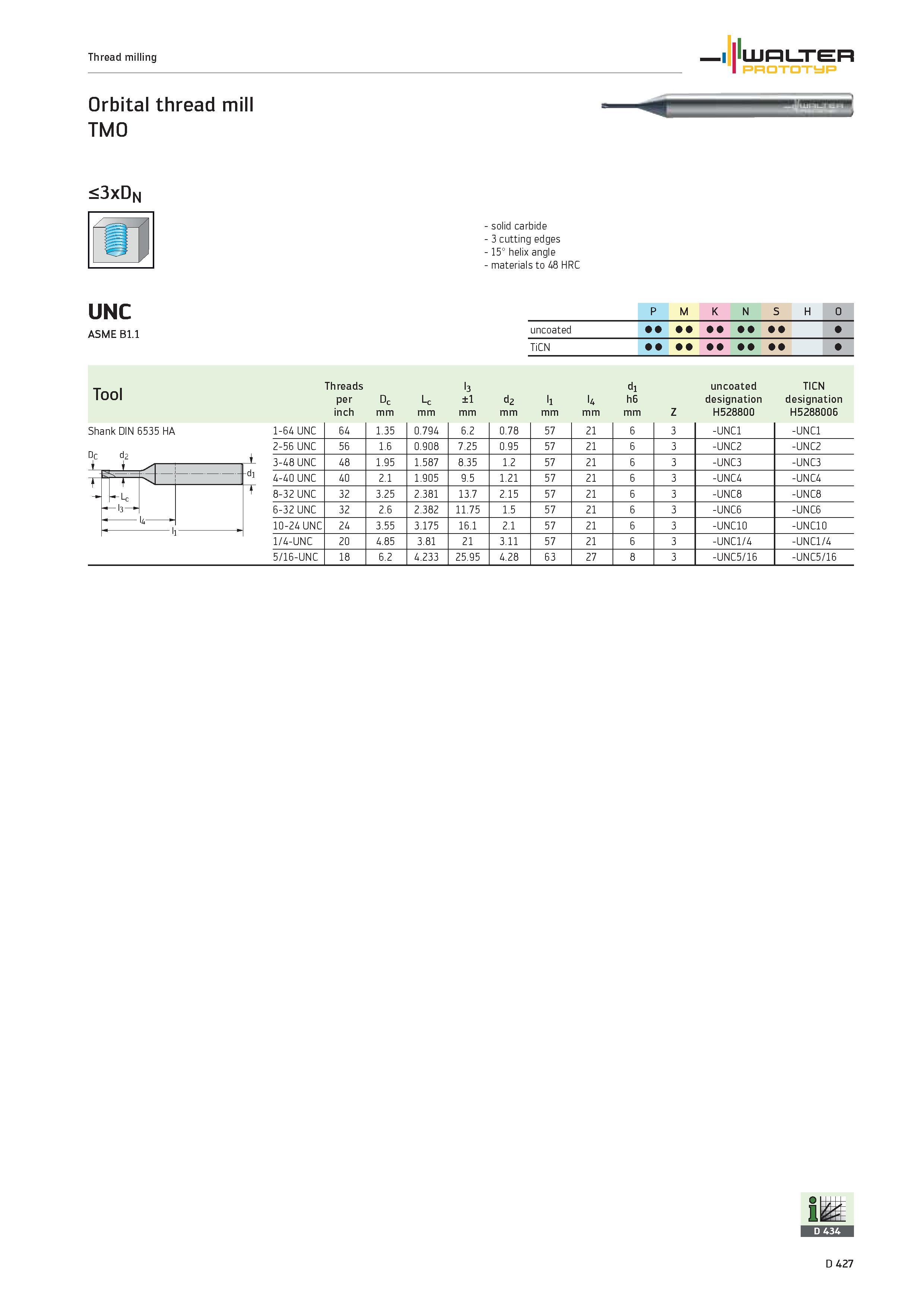

WALTER PROTOTYP Thread milling Orbital thread mill TMO <3xDn solid carbide 3 cutting edges 15° helix angle materials to 48 HRC UNC 1 P M K N S H O ASME B1.1 uncoated TiCN Tool Threads per inch Dc mm Lc mm l3 ±1 mm d2 mm l1 mm U mm d1 h6 mm Z uncoated designation H528800 TICN designation H5288006 Shank DIN 6535 HA 1-64 UNC 64 1.35 0.794 6.2 0.78 57 21 6 3 -UNC1 -UNC1 Dc d2 2-56 UNC 56 1.6 0.908 7.25 0.95 57 21 6 3 -UNC2 -UNC2 3-48 UNC 48 1.95 1.587 8.35 1.2 57 21 6 3 -UNC3 -UNC3 -di 4-40 UNC 40 2.1 1.905 9.5 1.21 57 21 6 3 -UNC4 -UNC4 t t Lc 1 8-32 UNC 32 3.25 2.381 13.7 2.15 57 21 6 3 -UNC8 -UNC8 6-32 UNC 32 2.6 2.382 11.75 1.5 57 21 6 3 -UNC6 -UNC6 4 1 10-24 UNC 24 3.55 3.175 16.1 2.1 57 21 6 3 -UNC10 -UNC10 1/4-UNC 20 4.85 3.81 21 3.11 57 21 6 3 -UNC1/4 -UNC1/4 5/16-UNC 18 6.2 4.233 25.95 4.28 63 27 8 3 -UNC5/16 -UNC5/16
