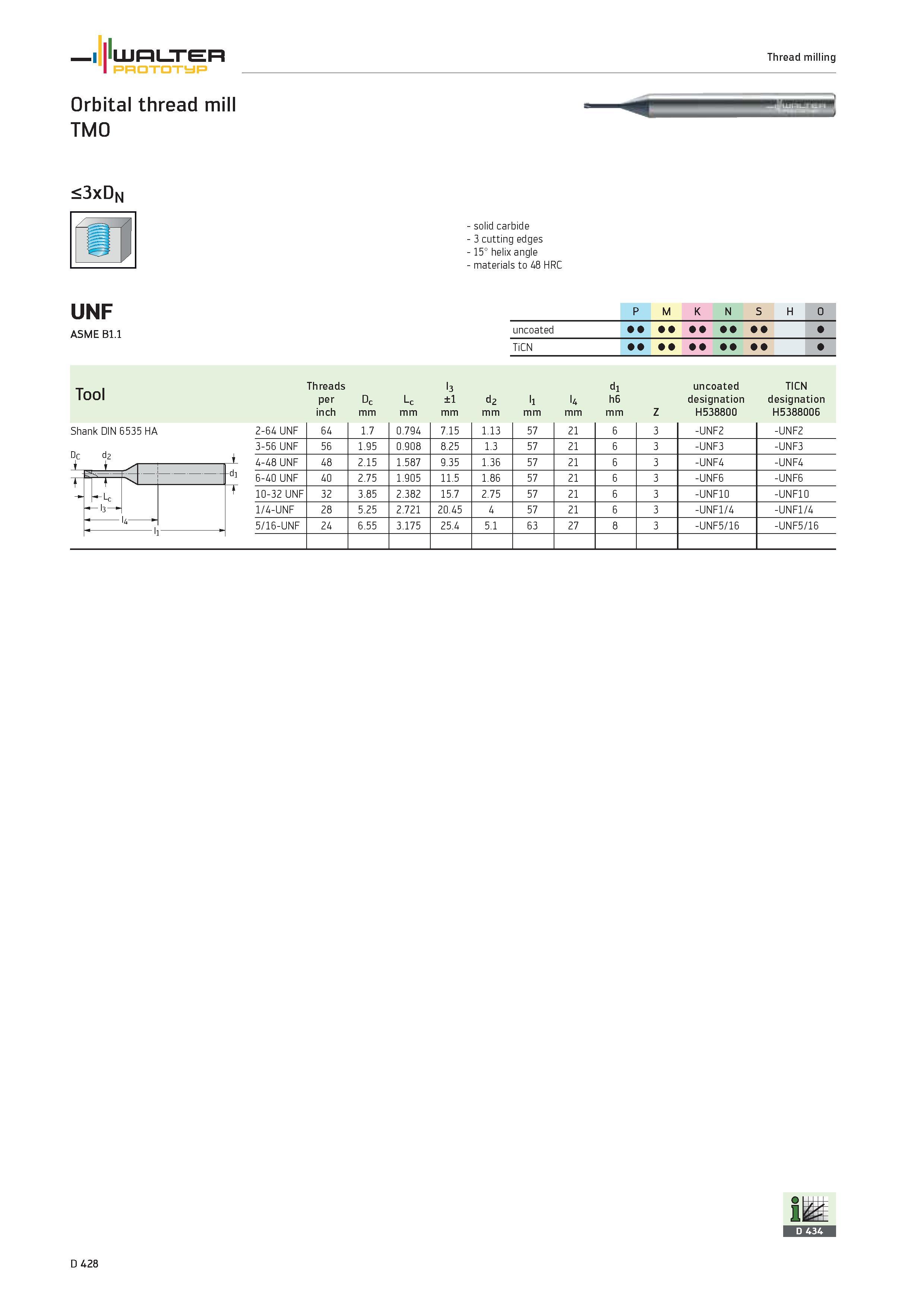

WALTER Prototyp Orbital thread mill TMO Thread milling <3xDn solid carbide 3 cutting edges 15° helix angle materials to 48 HRC UNF P M K N S H O ASME B1.1 uncoated TiCN Threads l3 d1 uncoated TICN per Dc Lc ±1 d2 l1 U h6 designation designation inch mm Z H538800 H5388006 Shank DIN 6535 HA 2-64 UNF 64 1.7 0.794 7.15 1.13 57 21 6 3 -UNF2 -UNF2 3-56 UNF 56 1.95 0.908 8.25 1.3 57 21 6 3 -UNF3 -UNF3 1 4 48 UNF 48 2.15 1.587 9.35 1.36 57 21 6 3 -UNF4 -UNF4 dl 6-40 UNF 40 2.75 1.905 11.5 1.86 57 21 6 3 -UNF6 -UNF6 t Jrt- 10-32 UNF 32 3.85 2.382 15.7 2.75 57 21 6 3 -UNF10 -UNF10 1/4-UNF 28 5.25 2.721 20.45 4 57 21 6 3 -UNF1/4 -UNF1/4 1 5/16-UNF 24 6.55 3.175 25.4 5.1 63 27 8 3 -UNF5/16 -UNF5/16 MilW
