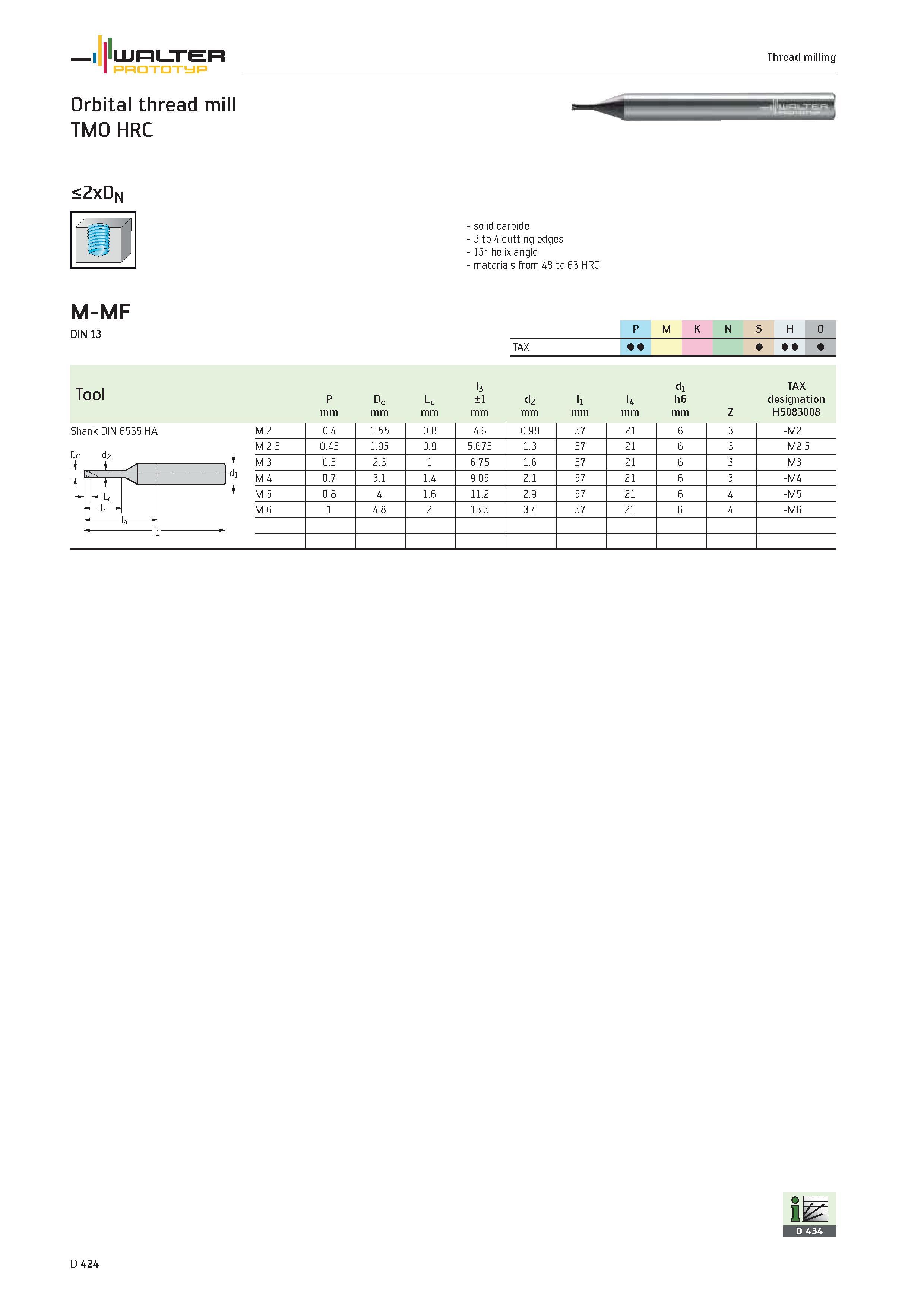

WALTER Prototyp Thread milling Orbital thread mill TMO HRC <2xDn solid carbide 3 to 4 cutting edges 15° helix angle materials from 48 to 63 HRC M-MF DIN 13 Shank DIN 6535 HA Dc jL d2 P M K N S H 1 O TAX 1 Tool P Dc Lc l3 ±1 d2 l1 l4 d1 h6 TAX designation mm Z H5083008 M 2 0.4 1.55 0.8 4.6 0.98 57 21 6 3 -M2 M 2.5 0.45 1.95 0.9 5.675 1.3 57 21 6 3 -M2.5 M 3 0.5 2.3 1 6.75 1.6 57 21 6 3 -M3 M 4 0.7 3.1 1.4 9.05 2.1 57 21 6 3 -M4 M 5 0.8 4 1.6 11.2 2.9 57 21 6 4 -M5 M 6 1 4.8 2 13.5 3.4 57 21 6 4 -M6 L MilW
