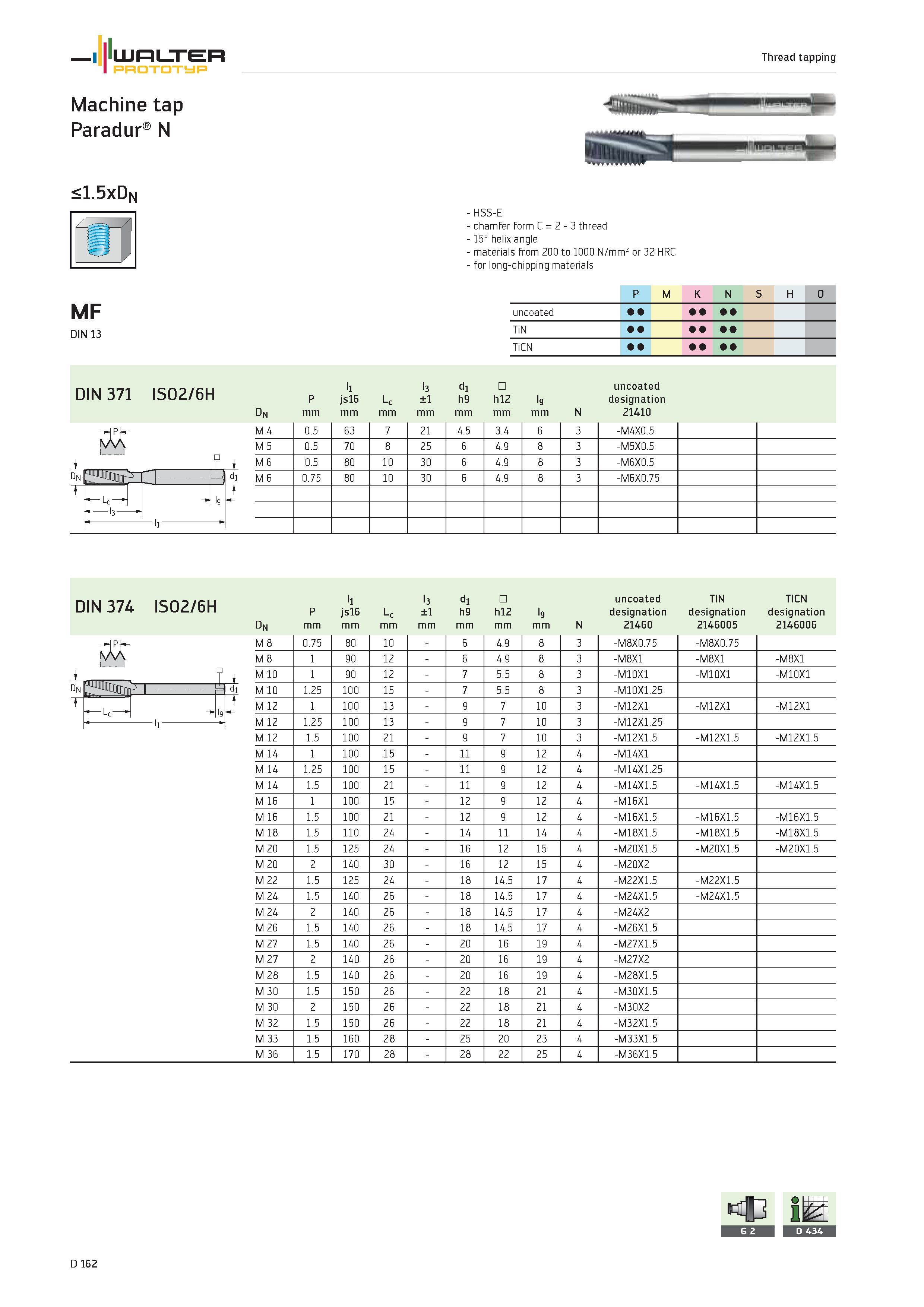

WALTER Prototyp Thread tapping Machine tap Paradur N <1.5xDn -HSS-E chamfer form C 2 3 thread 15° helix angle materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials MF DIN 13 P M K N S H O uncoated TiN TiCN din 371 ISO2/6H p mm ll jsl6 mm -c mm l3 ±l di h9 hl2 mm l9 mm uncoated designation 21410 \Ph- M 4 0.5 63 7 21 4.5 3.4 6 3 -M4X0.5 M 5 0.5 70 8 25 6 4.9 8 3 -M5X0.5 ± M 6 0.5 80 10 30 6 4.9 8 3 -M6X0.5 Dn 1 ll IlllinnnrTi' 0.75 80 10 30 6 4.9 8 3 -M6X0.75 i t l9 T h ii D N mm N DIN 374 ISO2/6H Dn P mm ll jsl6 mm Lc mm l3 ±l mm di h9 mm hl2 mm l9 mm N uncoated designation 21460 TIN designation 2146005 TICN designation 2146006 iXK z j M 8 0.75 80 10 6 4.9 8 3 -M8X0.75 -M8X0.75 M 8 1 90 12 6 4.9 8 3 -M8X1 -M8X1 -M8X1 M 10 1 90 12 7 5.5 8 3 -M10X1 -M10X1 -M10X1 Dn r1 -di M 10 1.25 100 15 7 5.5 8 3 -M10X1.25 1 L t M 12 1 100 13 9 7 10 3 -M12X1 -M12X1 -M12X1 ii M 12 1.25 100 13 9 7 10 3 -M12X1.25 M 12 1.5 100 21 9 7 10 3 -M12X1.5 -M12X1.5 -M12X1.5 M 14 1 100 15 11 9 12 4 -M14X1 M 14 1.25 100 15 11 9 12 4 -M14X1.25 M 14 1.5 100 21 11 9 12 4 -M14X1.5 -M14X1.5 -M14X1.5 M 16 1 100 15 12 9 12 4 -M16X1 M 16 1.5 100 21 12 9 12 4 -M16X1.5 -M16X1.5 -M16X1.5 M 18 1.5 110 24 14 11 14 4 -M18X1.5 -M18X1.5 -M18X1.5 M 20 1.5 125 24 16 12 15 4 -M20X1.5 -M20X1.5 -M20X1.5 M 20 2 140 30 16 12 15 4 -M20X2 M 22 1.5 125 24 18 14.5 17 4 -M22X1.5 -M22X1.5 M 24 1.5 140 26 18 14.5 17 4 -M24X1.5 -M24X1.5 M 24 2 140 26 18 14.5 17 4 -M24X2 M 26 1.5 140 26 18 14.5 17 4 -M26X1.5 M 27 1.5 140 26 20 16 19 4 -M27X1.5 M 27 2 140 26 20 16 19 4 -M27X2 M 28 1.5 140 26 20 16 19 4 -M28X1.5 M 30 1.5 150 26 22 18 21 4 -M30X1.5 M 30 2 150 26 22 18 21 4 -M30X2 M 32 1.5 150 26 22 18 21 4 -M32X1.5 M 33 1.5 160 28 25 20 23 4 -M33X1.5 M 36 1.5 170 28 28 22 25 4 -M36X1.5 D 162
