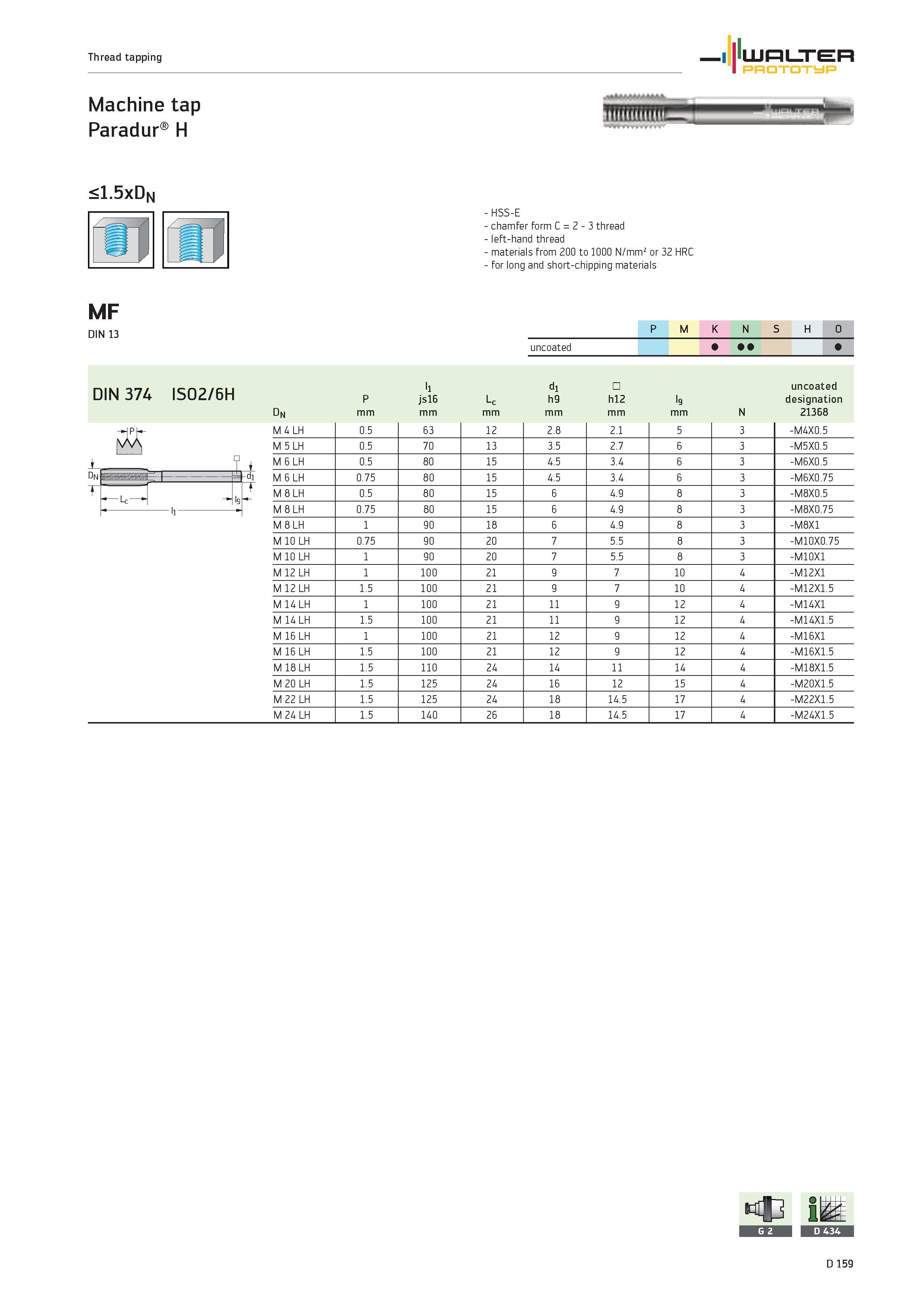

Thread tapping WALTER PROTOTYP Machine tap Paradur H <1.5xDn HSS-E chamfer form C 2 3 thread left-hand thread materials from 200 to 1000 N/mm2 or 32 HRC for long and short-chipping materials MF DIN 13 1 P M K N S H O uncoated DIN 374 ISO2/6H Dn P mm ll jsl6 mm Lc mm dl h9 mm hl2 mm l9 mm N uncoated designation 21368 z M 4 LH 0.5 63 12 2.8 2.1 5 3 -M4X0.5 M 5 LH 0.5 70 13 3.5 2.7 6 3 -M5X0.5 M 6 LH 0.5 80 15 4.5 3.4 6 3 -M6X0.5 Dn -di M 6 LH 0.75 80 15 4.5 3.4 6 3 -M6X0.75 + M 8 LH 0.5 80 15 6 4.9 8 3 -M8X0.5 li M 8 LH 0.75 80 15 6 4.9 8 3 -M8X0.75 M 8 LH 1 90 18 6 4.9 8 3 -M8X1 M 10 LH 0.75 90 20 7 5.5 8 3 -M10X0.75 M 10 LH 1 90 20 7 5.5 8 3 -M10X1 M 12 LH 1 100 21 9 7 10 4 -M12X1 M 12 LH 1.5 100 21 9 7 10 4 -M12X1.5 M 14 LH 1 100 21 11 9 12 4 -M14X1 M 14 LH 1.5 100 21 11 9 12 4 -M14X1.5 M 16 LH 1 100 21 12 9 12 4 -M16X1 M 16 LH 1.5 100 21 12 9 12 4 -M16X1.5 M 18 LH 1.5 110 24 14 11 14 4 -M18X1.5 M 20 LH 1.5 125 24 16 12 15 4 -M20X1.5 M 22 LH 1.5 125 24 18 14.5 17 4 -M22X1.5 M 24 LH 1.5 140 26 18 14.5 17 4 -M24X1.5 D 159
