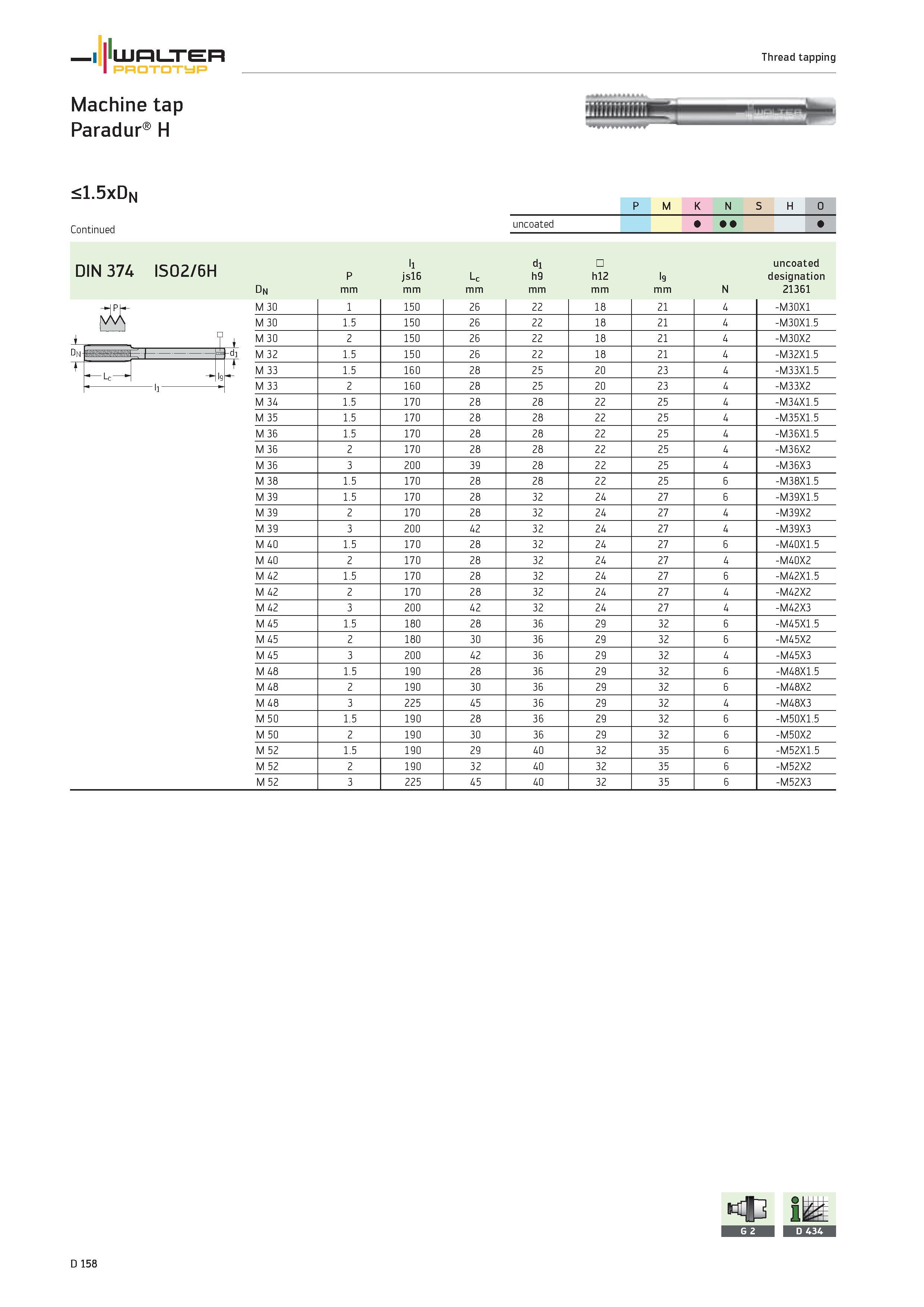

WALTER Prototyp Machine tap Paradur H Thread tapping <1.5xDn Dn T -di t Lc ll l9 P M K N S H O uncoated DIN 374 ISO2/6H P ll jsl6 Lc di h9 hl2 I9 uncoated designation Dn mm N 21361 M 30 1 150 26 22 18 21 4 -M30X1 M 30 1.5 150 26 22 18 21 4 -M30X1.5 M 30 2 150 26 22 18 21 4 -M30X2 M 32 1.5 150 26 22 18 21 4 -M32X1.5 M 33 1.5 160 28 25 20 23 4 -M33X1.5 M 33 2 160 28 25 20 23 4 -M33X2 M 34 1.5 170 28 28 22 25 4 -M34X1.5 M 35 1.5 170 28 28 22 25 4 -M35X1.5 M 36 1.5 170 28 28 22 25 4 -M36X1.5 M 36 2 170 28 28 22 25 4 -M36X2 M 36 3 200 39 28 22 25 4 -M36X3 M 38 1.5 170 28 28 22 25 6 -M38X1.5 M 39 1.5 170 28 32 24 27 6 -M39X1.5 M 39 2 170 28 32 24 27 4 -M39X2 M 39 3 200 42 32 24 27 4 -M39X3 M 40 1.5 170 28 32 24 27 6 -M40X1.5 M 40 2 170 28 32 24 27 4 -M40X2 M 42 1.5 170 28 32 24 27 6 -M42X1.5 M 42 2 170 28 32 24 27 4 -M42X2 M 42 3 200 42 32 24 27 4 -M42X3 M 45 1.5 180 28 36 29 32 6 -M45X1.5 M 45 2 180 30 36 29 32 6 -M45X2 M 45 3 200 42 36 29 32 4 -M45X3 M 48 1.5 190 28 36 29 32 6 -M48X1.5 M 48 2 190 30 36 29 32 6 -M48X2 M 48 3 225 45 36 29 32 4 -M48X3 M 50 1.5 190 28 36 29 32 6 -M50X1.5 M 50 2 190 30 36 29 32 6 -M50X2 M 52 1.5 190 29 40 32 35 6 -M52X1.5 M 52 2 190 32 40 32 35 6 -M52X2 M 52 3 225 45 40 32 35 6 -M52X3 D 158 iH
