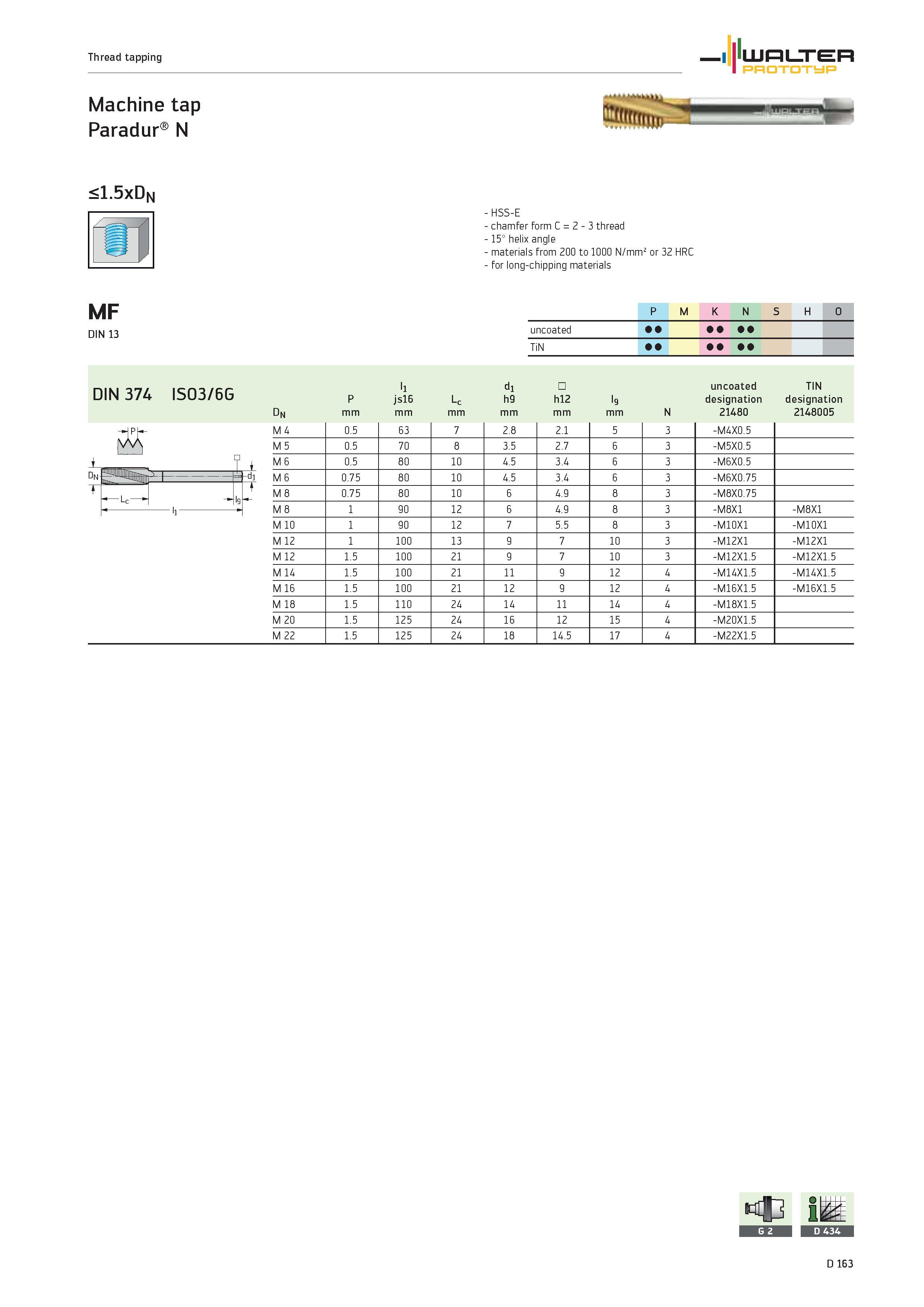

Thread tapping WALTER PROTOTYP Machine tap Paradur N <1.5xDn HSS-E chamfer form C 2 3 thread 15° helix angle materials from 200 to 1000 N/mm2 or 32 HRC for long-chipping materials MF DIN 13 1 P M K N S H O uncoated 1 TiN din 374 ISO3/6G di uncoated TIN Dn -di P jsi6 Lc h9 hi2 designation designation Dn mm N 21480 2148005 M 4 0.5 63 7 2.8 2.1 5 3 -M4X0.5 M 5 0.5 70 8 3.5 2.7 6 3 -M5X0.5 M 6 0.5 80 10 4.5 3.4 6 3 -M6X0.5 M 6 0.75 80 10 4.5 3.4 6 3 -M6X0.75 M 8 0.75 80 10 6 4.9 8 3 -M8X0.75 M 8 1 90 12 6 4.9 8 3 -M8X1 -M8X1 M 10 1 90 12 7 5.5 8 3 -M10X1 -M10X1 M 12 1 100 13 9 7 10 3 -M12X1 -M12X1 M 12 1.5 100 21 9 7 10 3 -M12X1.5 -M12X1.5 M 14 1.5 100 21 11 9 12 4 -M14X1.5 -M14X1.5 M 16 1.5 100 21 12 9 12 4 -M16X1.5 -M16X1.5 M 18 1.5 110 24 14 11 14 4 -M18X1.5 M 20 1.5 125 24 16 12 15 4 -M20X1.5 M 22 1.5 125 24 18 14.5 17 4 -M22X1.5 L D 163
