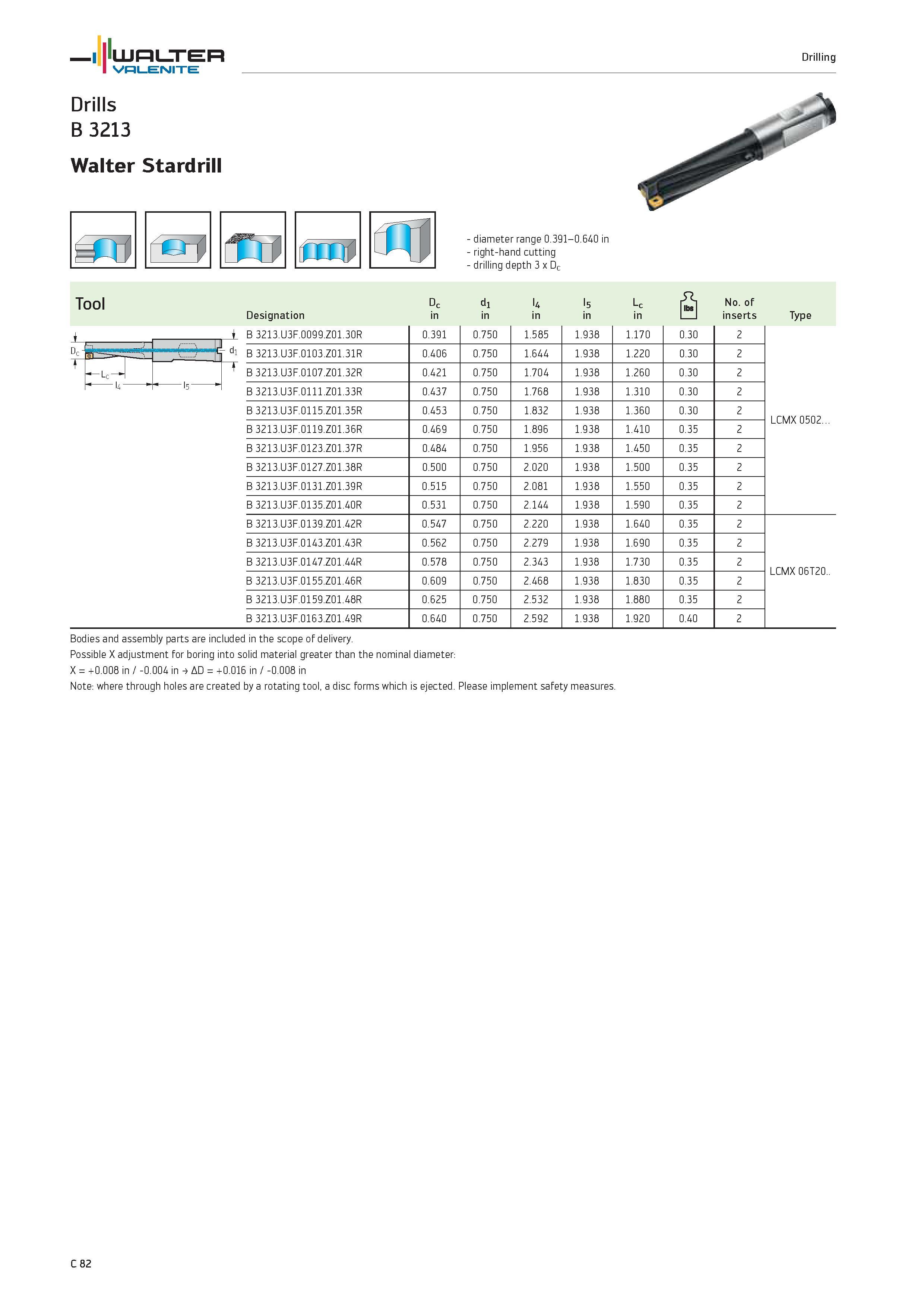

WALTER Valenite Drilling Drills B 3213 Walter Stardrill '1 oxjp diameter range 0.391-0.640 in right-hand cutting drilling depth 3 x Dc Tool Dc di l4 l5 Lc 2 No. of Designation in inserts Type B 3213.U3F.0099.Z01.30R 0.391 0.750 1.585 1.938 1.170 0.30 2 LCMX 0502 B 3213.U3F.0103.Z01.31R 0.406 0.750 1.644 1.938 1.220 0.30 2 B 3213.U3F.0107.Z01.32R 0.421 0.750 1.704 1.938 1.260 0.30 2 B 3213.U3F.0111.Z01.33R 0.437 0.750 1.768 1.938 1.310 0.30 2 B 3213.U3F.0115.Z01.35R 0.453 0.750 1.832 1.938 1.360 0.30 2 B 3213.U3F.0119.Z01.36R 0.469 0.750 1.896 1.938 1.410 0.35 2 B 3213.U3F.0123.Z01.37R 0.484 0.750 1.956 1.938 1.450 0.35 2 B 3213.U3F.0127.Z01.38R 0.500 0.750 2.020 1.938 1.500 0.35 2 B 3213.U3F.0131.Z01.39R 0.515 0.750 2.081 1.938 1.550 0.35 2 B 3213.U3F.0135.Z01.40R 0.531 0.750 2.144 1.938 1.590 0.35 2 B 3213.U3F.0139.Z01.42R 0.547 0.750 2.220 1.938 1.640 0.35 2 LCMX 06T20.. B 3213.U3F.0143.Z01.43R 0.562 0.750 2.279 1.938 1.690 0.35 2 B 3213.U3F.0147.Z01.44R 0.578 0.750 2.343 1.938 1.730 0.35 2 B 3213.U3F.0155.Z01.46R 0.609 0.750 2.468 1.938 1.830 0.35 2 B 3213.U3F.0159.Z01.48R 0.625 0.750 2.532 1.938 1.880 0.35 2 B 3213.U3F.0163.Z01.49R 0.640 0.750 2.592 1.938 1.920 0.40 2 Bodies and assembly parts are included in the scope of delivery. Possible X adjustment for boring into solid material greater than the nominal diameter X +0.008 in / -0.004 in AD +0.016 in / -0.008 in Note where through holes are created by a rotating tool, a disc forms which is ejected. Please implement safety measures. C 82
