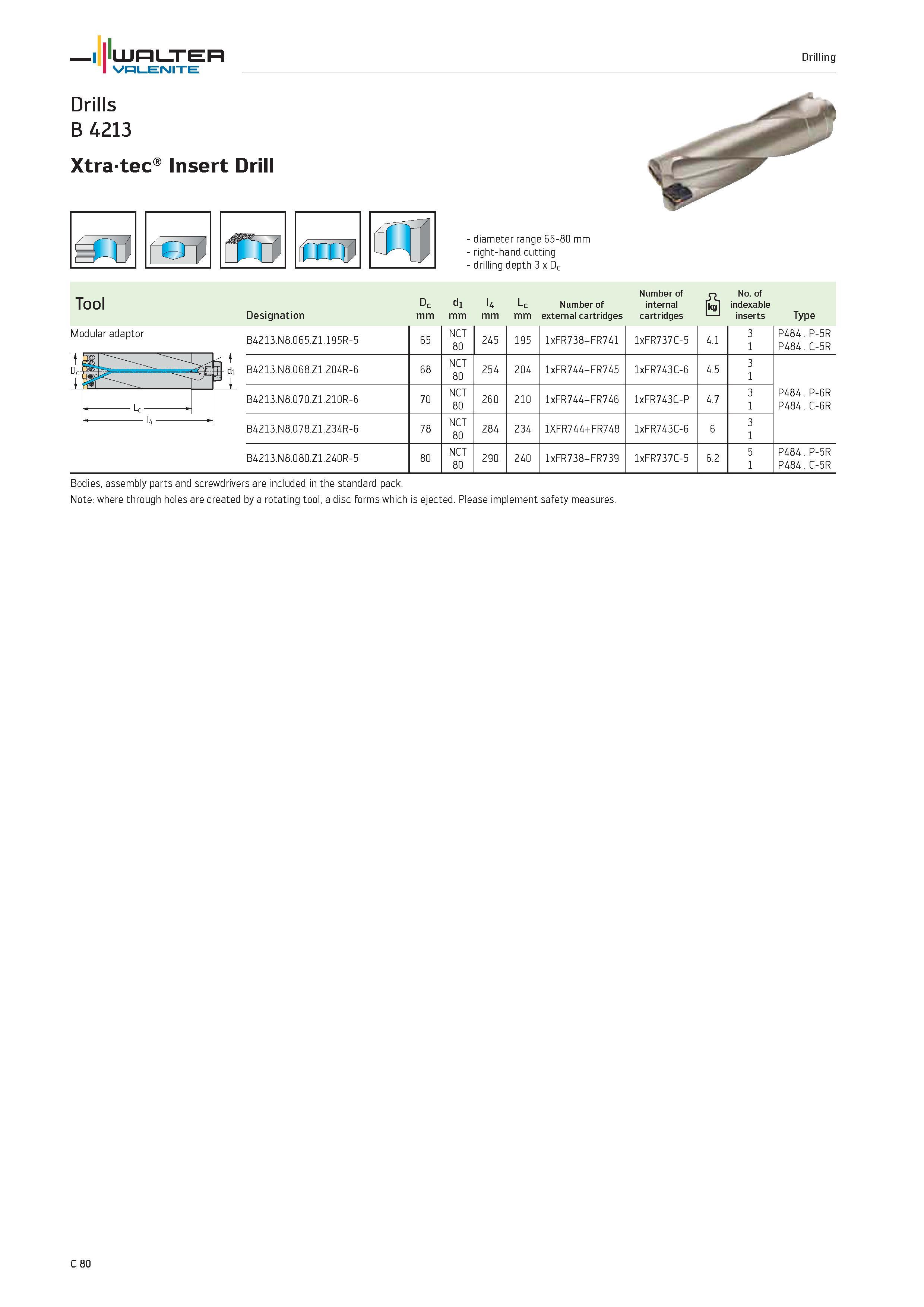

WALTER Valenite Drilling Drills B 4213 Xtra-tec1' Insert Drill re oxjp an diameter range 65-80 mm right-hand cutting drilling depth 3 x Dc Tool Number of rj No. of c D l4 Lc Number of internal tal indexable Designation mm external cartridges cartridges inserts Type Modular adaptor B4213.N8.065.Z1.195R-5 65 NCT 80 245 195 1xFR738+FR741 1xFR737C-5 4.1 3 1 P484 P484 P-5R C-5R B4213.N8.068.Z1.204R-6 68 NCT 80 254 204 1xFR744+FR745 1xFR743C-6 4.5 3 1 B4213.N8.070.Z1.210R-6 70 NCT 80 260 210 1xFR744+FR746 1xFR743C-P 4.7 3 1 P484 P484 P-6R C-6R B4213.N8.078.Z1.234R-6 78 NCT 80 284 234 1XFR744+FR748 1xFR743C-6 6 3 1 B4213.N8.080.Z1.240R-5 80 NCT 80 290 240 1xFR738+FR739 1xFR737C-5 6.2 5 1 P484 P484 P-5R C-5R Bodies, assembly parts and screwdrivers are included in the standard pack. Note where through holes are created by a rotating tool, a disc forms which is ejected. Please implement safety measures. C 80
