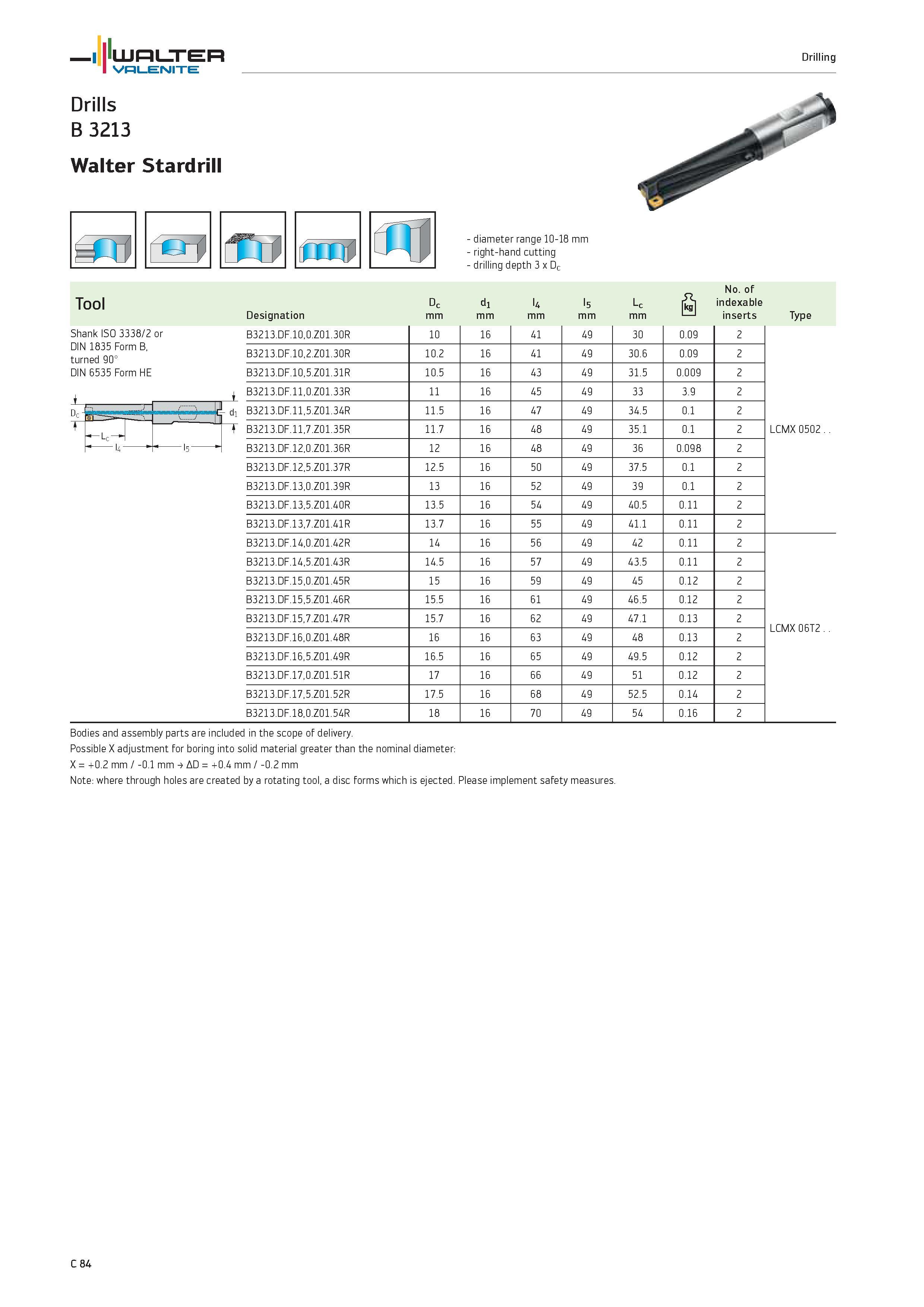

WALTER Valenite Drilling Drills B 3213 Walter Stardrill oxjp diameter range 10-18 mm right-hand cutting drilling depth 3 x Dc Tool Designation Dc II d 1II U II l5 II Lc II S No. of indexable inserts Type Shank ISO 3338/2 or B3213.DF.10,0.Z01.30R 10 16 41 49 30 0.09 2 DIN 1835 Form B, B3213.DF.10,2.Z01.30R 10.2 16 41 49 30.6 0.09 2 DIN 6535 Form HE B3213.DF.10,5.Z01.31R 10.5 16 43 49 31.5 0.009 2 i 1 B3213.DF.11,0.Z01.33R 11 16 45 49 33 3.9 2 d1 B3213.DF.11,5.Z01.34R 11.5 16 47 49 34.5 0.1 2 Tl p Lc r- JJ T B3213.DF.11,7.Z01.35R 11.7 16 48 49 35.1 0.1 2 LCMX 0502 I 14 l5 B3213.DF.12,0.Z01.36R 12 16 48 49 36 0.098 2 B3213.DF.12,5.Z01.37R 12.5 16 50 49 37.5 0.1 2 B3213.DF.13,0.Z01.39R 13 16 52 49 39 0.1 2 B3213.DF.13,5.Z01.40R 13.5 16 54 49 40.5 0.11 2 B3213.DF.13,7.Z01.41R 13.7 16 55 49 41.1 0.11 2 B3213.DF.14,0.Z01.42R 14 16 56 49 42 0.11 2 B3213.DF.14,5.Z01.43R 14.5 16 57 49 43.5 0.11 2 B3213.DF.15,0.Z01.45R 15 16 59 49 45 0.12 2 B3213.DF.15,5.Z01.46R 15.5 16 61 49 46.5 0.12 2 B3213.DF.15,7.Z01.47R 15.7 16 62 49 47.1 0.13 2 LCMX 06T2 B3213.DF.16,0.Z01.48R 16 16 63 49 48 0.13 2 B3213.DF.16,5.Z01.49R 16.5 16 65 49 49.5 0.12 2 B3213.DF.17,0.Z01.51R 17 16 66 49 51 0.12 2 B3213.DF.17,5.Z01.52R 17.5 16 68 49 52.5 0.14 2 B3213.DF.18,0.Z01.54R 18 16 70 49 54 0.16 2 Bodies and assembly parts are included in the scope of delivery. Possible X adjustment for boring into solid material greater than the nominal diameter X +0.2 mm / -0.1 mm AD +0.4 mm / -0.2 mm Note where through holes are created by a rotating tool, a disc forms which is ejected. Please implement safety measures. C 84
