746 Каталог WALTER 2012 Металлорежущий инструмент и оснастка Valenite для станков Стр.B248

Каталог WALTER 2012 Инструмент и оснастка Valenite Стр. B248 0746 ENG Lab2u

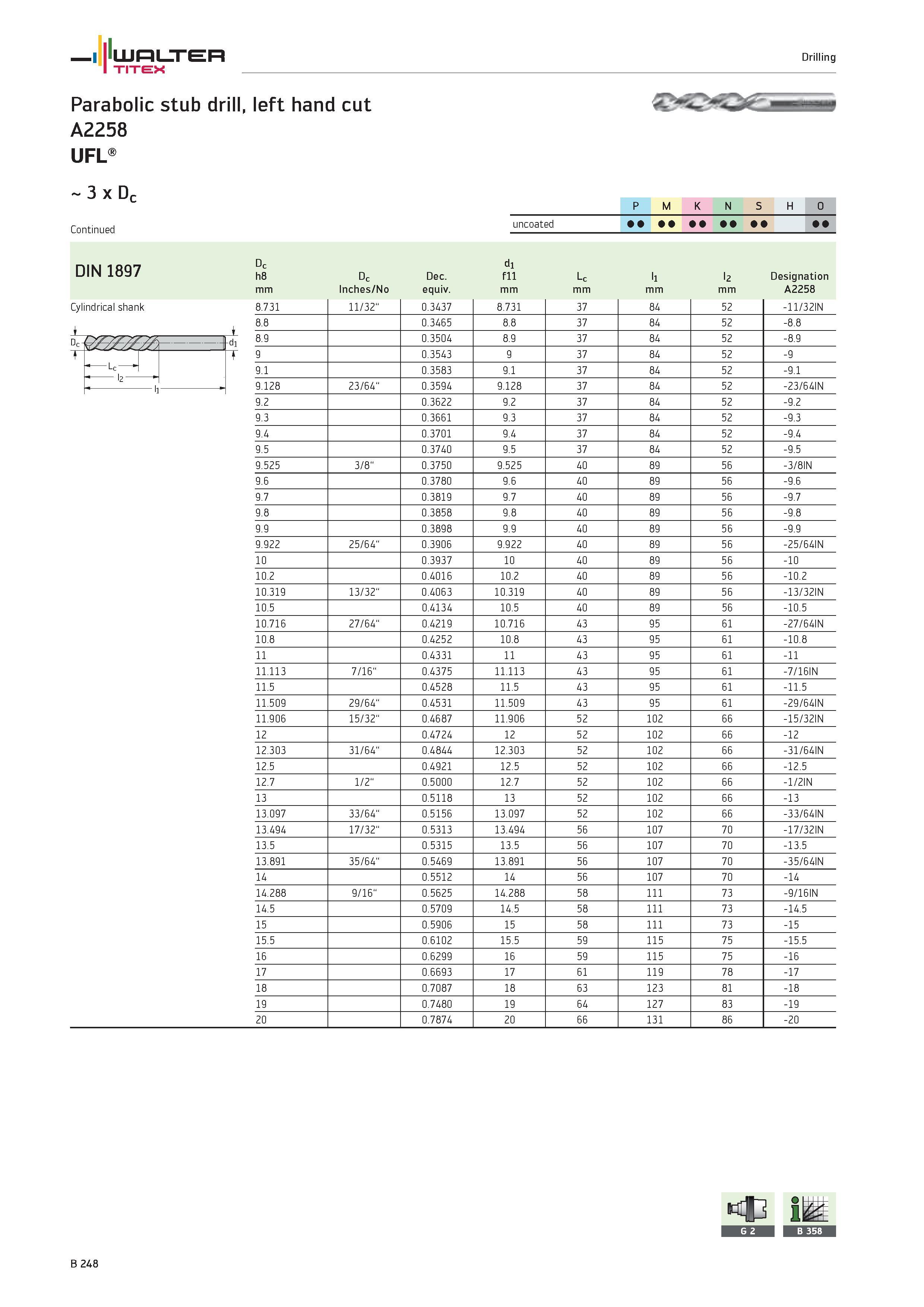

WALTER TITEX Drilling Parabolic stub drill, left hand cut A2258 UFL 3 x Dc P M K N S H O uncoated 1 DIN 1897 Dc h8 mm Dc Inches/No Dec. equiv. di f11 mm Lc mm li mm l2 mm Designation A2258 Cylindrical shank i 8.731 11/32" 0.3437 8.731 37 84 52 -11/32IN 8.8 0.3465 8.8 37 84 52 -8.8 8.9 0.3504 8.9 37 84 52 -8.9 IV d + t 9 0.3543 9 37 84 52 -9 Lc n 9.1 0.3583 9.1 37 84 52 -9.1 l 9.128 23/64" 0.3594 9.128 37 84 52 -23/64IN 9.2 0.3622 9.2 37 84 52 -9.2 9.3 0.3661 9.3 37 84 52 -9.3 9.4 0.3701 9.4 37 84 52 -9.4 9.5 0.3740 9.5 37 84 52 -9.5 9.525 3/8" 0.3750 9.525 40 89 56 -3/8IN 9.6 0.3780 9.6 40 89 56 -9.6 9.7 0.3819 9.7 40 89 56 -9.7 9.8 0.3858 9.8 40 89 56 -9.8 9.9 0.3898 9.9 40 89 56 -9.9 9.922 25/64" 0.3906 9.922 40 89 56 -25/64IN 10 0.3937 10 40 89 56 -10 10.2 0.4016 10.2 40 89 56 -10.2 10.319 13/32" 0.4063 10.319 40 89 56 -13/32IN 10.5 0.4134 10.5 40 89 56 -10.5 10.716 27/64" 0.4219 10.716 43 95 61 -27/64IN 10.8 0.4252 10.8 43 95 61 -10.8 11 0.4331 11 43 95 61 -11 11.113 7/16" 0.4375 11.113 43 95 61 -7/16IN 11.5 0.4528 11.5 43 95 61 -11.5 11.509 29/64" 0.4531 11.509 43 95 61 -29/64IN 11.906 15/32" 0.4687 11.906 52 102 66 -15/32IN 12 0.4724 12 52 102 66 -12 12.303 31/64" 0.4844 12.303 52 102 66 -31/64IN 12.5 0.4921 12.5 52 102 66 -12.5 12.7 1/2" 0.5000 12.7 52 102 66 -1/2IN 13 0.5118 13 52 102 66 -13 13.097 33/64" 0.5156 13.097 52 102 66 -33/64IN 13.494 17/32" 0.5313 13.494 56 107 70 -17/32IN 13.5 0.5315 13.5 56 107 70 -13.5 13.891 35/64" 0.5469 13.891 56 107 70 -35/64IN 14 0.5512 14 56 107 70 -14 14.288 9/16" 0.5625 14.288 58 111 73 -9/16IN 14.5 0.5709 14.5 58 111 73 -14.5 15 0.5906 15 58 111 73 -15 15.5 0.6102 15.5 59 115 75 -15.5 16 0.6299 16 59 115 75 -16 17 0.6693 17 61 119 78 -17 18 0.7087 18 63 123 81 -18 19 0.7480 19 64 127 83 -19 20 0.7874 20 66 131 86 -20 B 248
