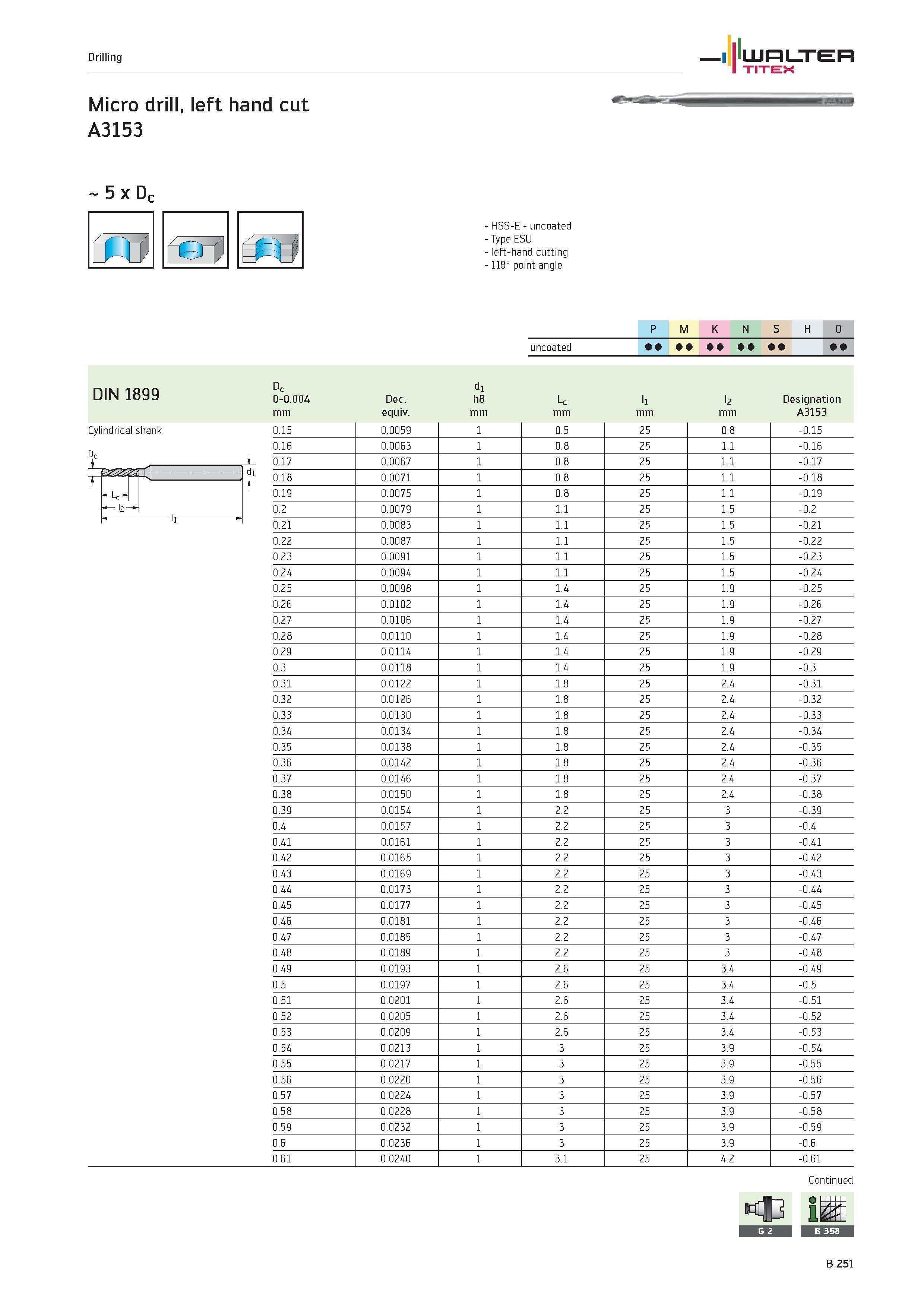

Drilling WALTER TITEX Micro drill, left hand cut A3153 5 x Dc HSS-E uncoated Type ESU left-hand cutting 118° point angle 1 P M K N S H O uncoated 1 DIN 1899 Dc 0-0.004 mm Dec. equiv. d1 h8 mm Lc mm l1 mm l2 mm Designation A3153 Cylindrical shank 0.15 0.0059 1 0.5 25 0.8 -0.15 0.16 0.0063 1 0.8 25 1.1 -0.16 L 0.17 0.0067 1 0.8 25 1.1 -0.17 0.18 0.0071 1 0.8 25 1.1 -0.18 -Lc- 0.19 0.0075 1 0.8 25 1.1 -0.19 l2 0.2 0.0079 1 1.1 25 1.5 -0.2 ii 0.21 0.0083 1 1.1 25 1.5 -0.21 0.22 0.0087 1 1.1 25 1.5 -0.22 0.23 0.0091 1 1.1 25 1.5 -0.23 0.24 0.0094 1 1.1 25 1.5 -0.24 0.25 0.0098 1 1.4 25 1.9 -0.25 0.26 0.0102 1 1.4 25 1.9 -0.26 0.27 0.0106 1 1.4 25 1.9 -0.27 0.28 0.0110 1 1.4 25 1.9 -0.28 0.29 0.0114 1 1.4 25 1.9 -0.29 0.3 0.0118 1 1.4 25 1.9 -0.3 0.31 0.0122 1 1.8 25 2.4 -0.31 0.32 0.0126 1 1.8 25 2.4 -0.32 0.33 0.0130 1 1.8 25 2.4 -0.33 0.34 0.0134 1 1.8 25 2.4 -0.34 0.35 0.0138 1 1.8 25 2.4 -0.35 0.36 0.0142 1 1.8 25 2.4 -0.36 0.37 0.0146 1 1.8 25 2.4 -0.37 0.38 0.0150 1 1.8 25 2.4 -0.38 0.39 0.0154 1 2.2 25 3 -0.39 0.4 0.0157 1 2.2 25 3 -0.4 0.41 0.0161 1 2.2 25 3 -0.41 0.42 0.0165 1 2.2 25 3 -0.42 0.43 0.0169 1 2.2 25 3 -0.43 0.44 0.0173 1 2.2 25 3 -0.44 0.45 0.0177 1 2.2 25 3 -0.45 0.46 0.0181 1 2.2 25 3 -0.46 0.47 0.0185 1 2.2 25 3 -0.47 0.48 0.0189 1 2.2 25 3 -0.48 0.49 0.0193 1 2.6 25 3.4 -0.49 0.5 0.0197 1 2.6 25 3.4 -0.5 0.51 0.0201 1 2.6 25 3.4 -0.51 0.52 0.0205 1 2.6 25 3.4 -0.52 0.53 0.0209 1 2.6 25 3.4 -0.53 0.54 0.0213 1 3 25 3.9 -0.54 0.55 0.0217 1 3 25 3.9 -0.55 0.56 0.0220 1 3 25 3.9 -0.56 0.57 0.0224 1 3 25 3.9 -0.57 0.58 0.0228 1 3 25 3.9 -0.58 0.59 0.0232 1 3 25 3.9 -0.59 0.6 0.0236 1 3 25 3.9 -0.6 0.61 0.0240 1 3.1 25 4.2 -0.61 B 251
