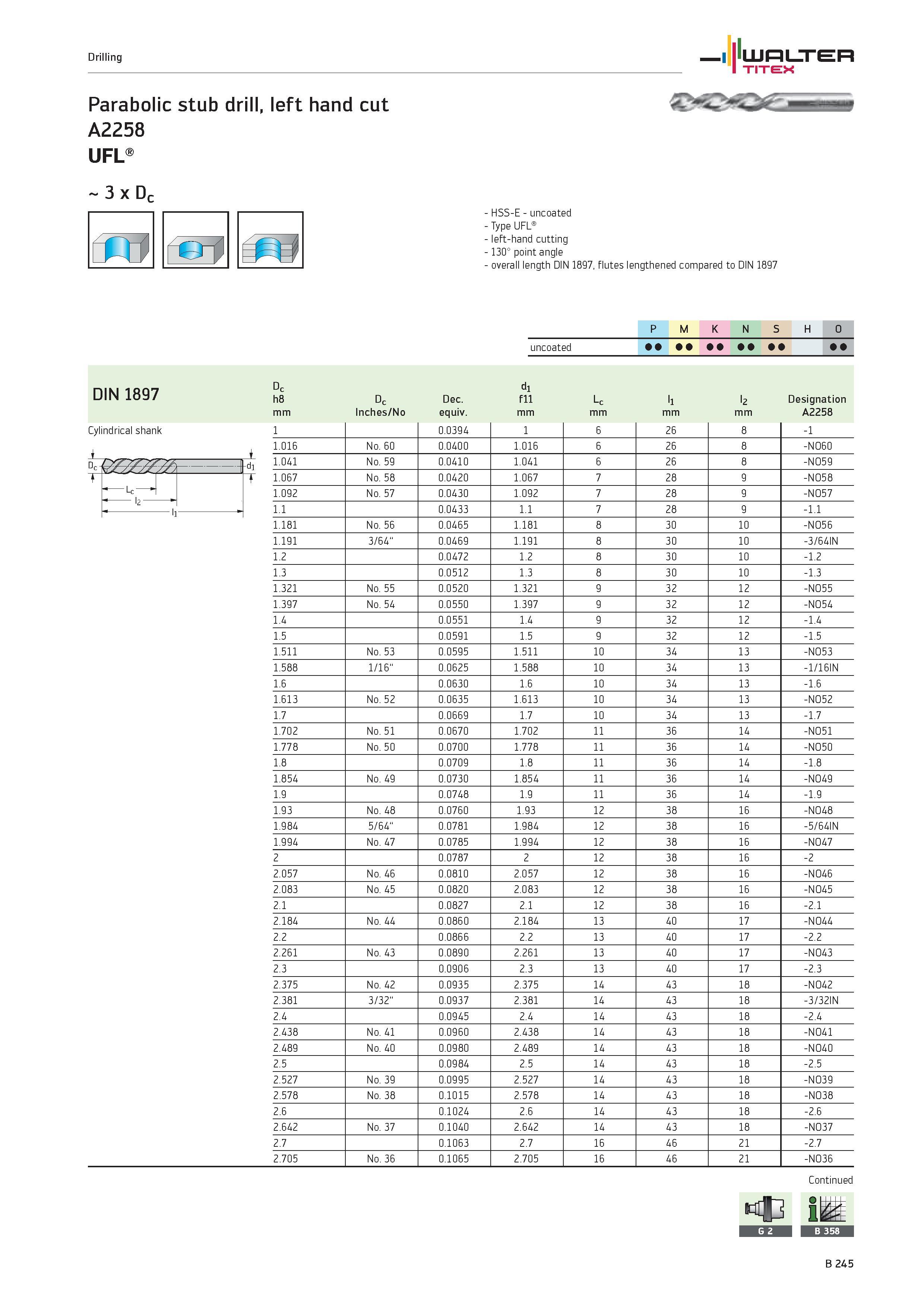

Drilling WALTER TITEX Parabolic stub drill, left hand cut A2258 UFL 3 x Dc rT0 re HSS-E uncoated Type UFL left-hand cutting 130° point angle overall length DIN 1897, flutes lengthened compared to DIN 1897 P M K N S H O uncoated DIN 1897 c8 m Dhm Dc Inches/No Dec. equiv. 11 m °C e Lc mm l1 mm l2 mm Designation A2258 Cylindrical shank 1 1 0.0394 1 6 26 8 -1 1.016 No. 60 0.0400 1.016 6 26 8 -N060 1.041 No. 59 0.0410 1.041 6 26 8 -N059 Dr- d t 1.067 No. 58 0.0420 1.067 7 28 9 -N058 Lc 1 1.092 No. 57 0.0430 1.092 7 28 9 -N057 l 1.1 0.0433 1.1 7 28 9 -1.1 1.181 No. 56 0.0465 1.181 8 30 10 -N056 1.191 3/64" 0.0469 1.191 8 30 10 -3/64IN 1.2 0.0472 1.2 8 30 10 -1.2 1.3 0.0512 1.3 8 30 10 -1.3 1.321 No. 55 0.0520 1.321 9 32 12 -N055 1.397 No. 54 0.0550 1.397 9 32 12 -N054 1.4 0.0551 1.4 9 32 12 -1.4 1.5 0.0591 1.5 9 32 12 -1.5 1.511 No. 53 0.0595 1.511 10 34 13 -N053 1.588 1/16" 0.0625 1.588 10 34 13 -1/16IN 1.6 0.0630 1.6 10 34 13 -1.6 1.613 No. 52 0.0635 1.613 10 34 13 -N052 1.7 0.0669 1.7 10 34 13 -1.7 1.702 No. 51 0.0670 1.702 11 36 14 -N051 1.778 No. 50 0.0700 1.778 11 36 14 -N050 1.8 0.0709 1.8 11 36 14 -1.8 1.854 No. 49 0.0730 1.854 11 36 14 -N049 1.9 0.0748 1.9 11 36 14 -1.9 1.93 No. 48 0.0760 1.93 12 38 16 -N048 1.984 5/64" 0.0781 1.984 12 38 16 -5/64IN 1.994 No. 47 0.0785 1.994 12 38 16 -N047 2 0.0787 2 12 38 16 -2 2.057 No. 46 0.0810 2.057 12 38 16 -N046 2.083 No. 45 0.0820 2.083 12 38 16 -N045 2.1 0.0827 2.1 12 38 16 -2.1 2.184 No. 44 0.0860 2.184 13 40 17 -N044 2.2 0.0866 2.2 13 40 17 -2.2 2.261 No. 43 0.0890 2.261 13 40 17 -N043 2.3 0.0906 2.3 13 40 17 -2.3 2.375 No. 42 0.0935 2.375 14 43 18 -N042 2.381 3/32" 0.0937 2.381 14 43 18 -3/32IN 2.4 0.0945 2.4 14 43 18 -2.4 2.438 No. 41 0.0960 2.438 14 43 18 -N041 2.489 No. 40 0.0980 2.489 14 43 18 -N040 2.5 0.0984 2.5 14 43 18 -2.5 2.527 No. 39 0.0995 2.527 14 43 18 -N039 2.578 No. 38 0.1015 2.578 14 43 18 -N038 2.6 0.1024 2.6 14 43 18 -2.6 2.642 No. 37 0.1040 2.642 14 43 18 -N037 2.7 0.1063 2.7 16 46 21 -2.7 2.705 No. 36 0.1065 2.705 16 46 21 -N036 B 245
