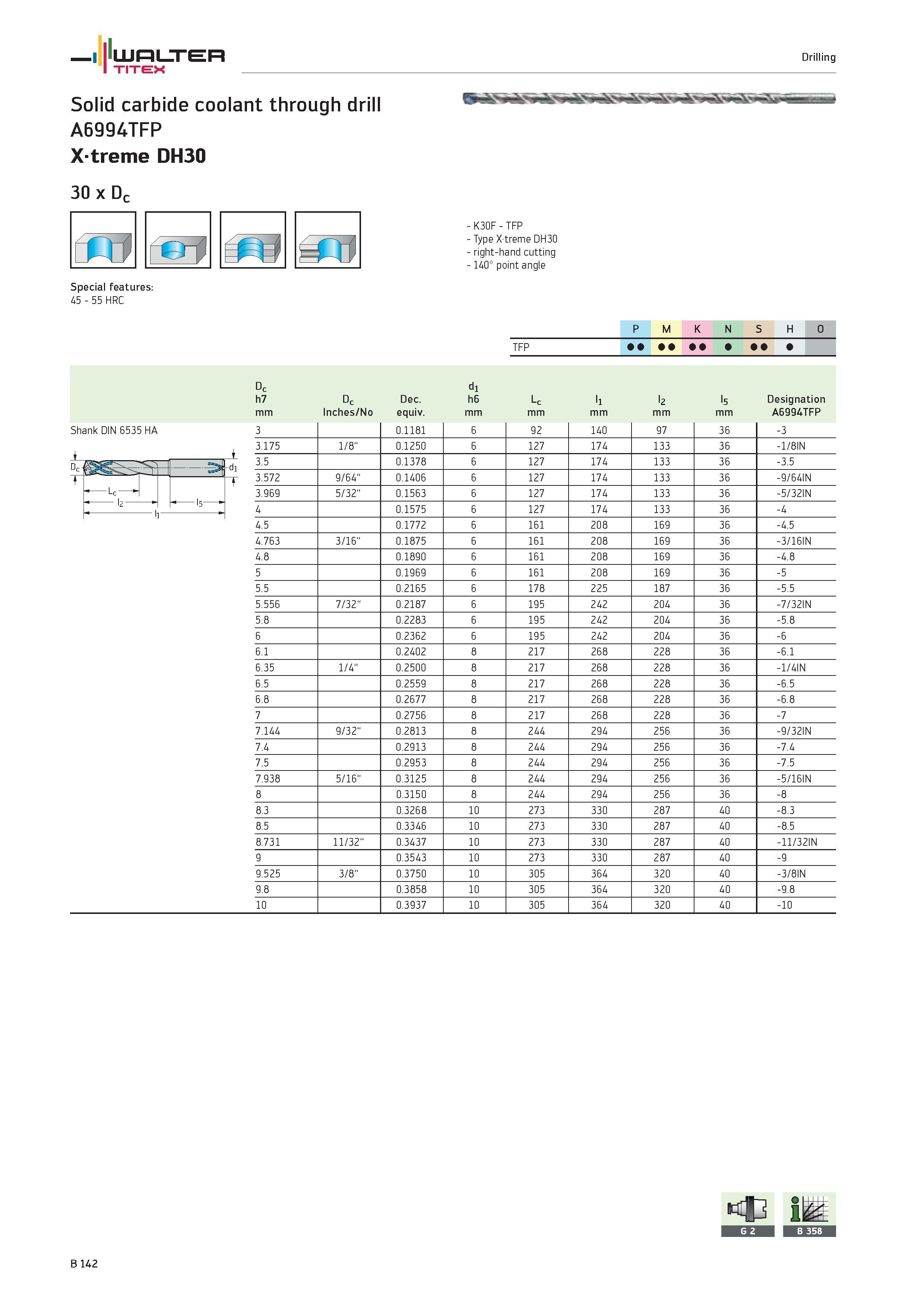

WALTER TITEX Drilling Solid carbide coolant through drill A6994TFP X-treme DH30 30 x Dc re Special features 45 55 HRC K30F TFP Type Xtreme DH30 right-hand cutting 140° point angle 1 P M K N S H O TFP Dc h7 mm Dc Inches/No Dec. equiv. di h6 mm Lc mm li mm l2 mm l5 mm Designation A6994TFP Shank DIN 6535 HA 3 0.1181 6 92 140 97 36 -3 3.175 1/8" 0.1250 6 127 174 133 36 -1/8IN ll 1C 0.1378 6 127 174 133 36 -3.5 IV 3 \r 3.572 9/64" 0.1406 6 127 174 133 36 -9/64IN Lc -1 3.969 5/32" 0.1563 6 127 174 133 36 -5/32IN l “ l5 rl 4 0.1575 6 127 174 133 36 -4 4.5 0.1772 6 161 208 169 36 -4.5 4.763 3/16" 0.1875 6 161 208 169 36 -3/16IN 4.8 0.1890 6 161 208 169 36 -4.8 5 0.1969 6 161 208 169 36 -5 5.5 0.2165 6 178 225 187 36 -5.5 5.556 7/32" 0.2187 6 195 242 204 36 -7/32IN 5.8 0.2283 6 195 242 204 36 -5.8 6 0.2362 6 195 242 204 36 -6 6.1 0.2402 8 217 268 228 36 -6.1 6.35 1/4" 0.2500 8 217 268 228 36 -1/4IN 6.5 0.2559 8 217 268 228 36 -6.5 6.8 0.2677 8 7 2 268 228 36 -6.8 7 0.2756 8 217 268 228 36 -7 7.144 9/32" 0.2813 8 244 294 256 36 -9/32IN 7.4 0.2913 8 244 294 256 36 -7.4 7.5 0.2953 8 244 294 256 36 -7.5 7.938 5/16" 0.3125 8 244 294 256 36 -5/16IN 8 0.3150 8 244 294 256 36 -8 8.3 0.3268 10 273 330 287 40 -8.3 8.5 0.3346 10 273 330 287 40 -8.5 8.731 11/32" 0.3437 10 273 330 287 40 -11/32IN 9 0.3543 10 273 330 287 40 -9 9.525 3/8" 0.3750 10 305 364 320 40 -3/8IN 9.8 0.3858 10 305 364 320 40 -9.8 10 0.3937 10 305 364 320 40 -10 B 142
