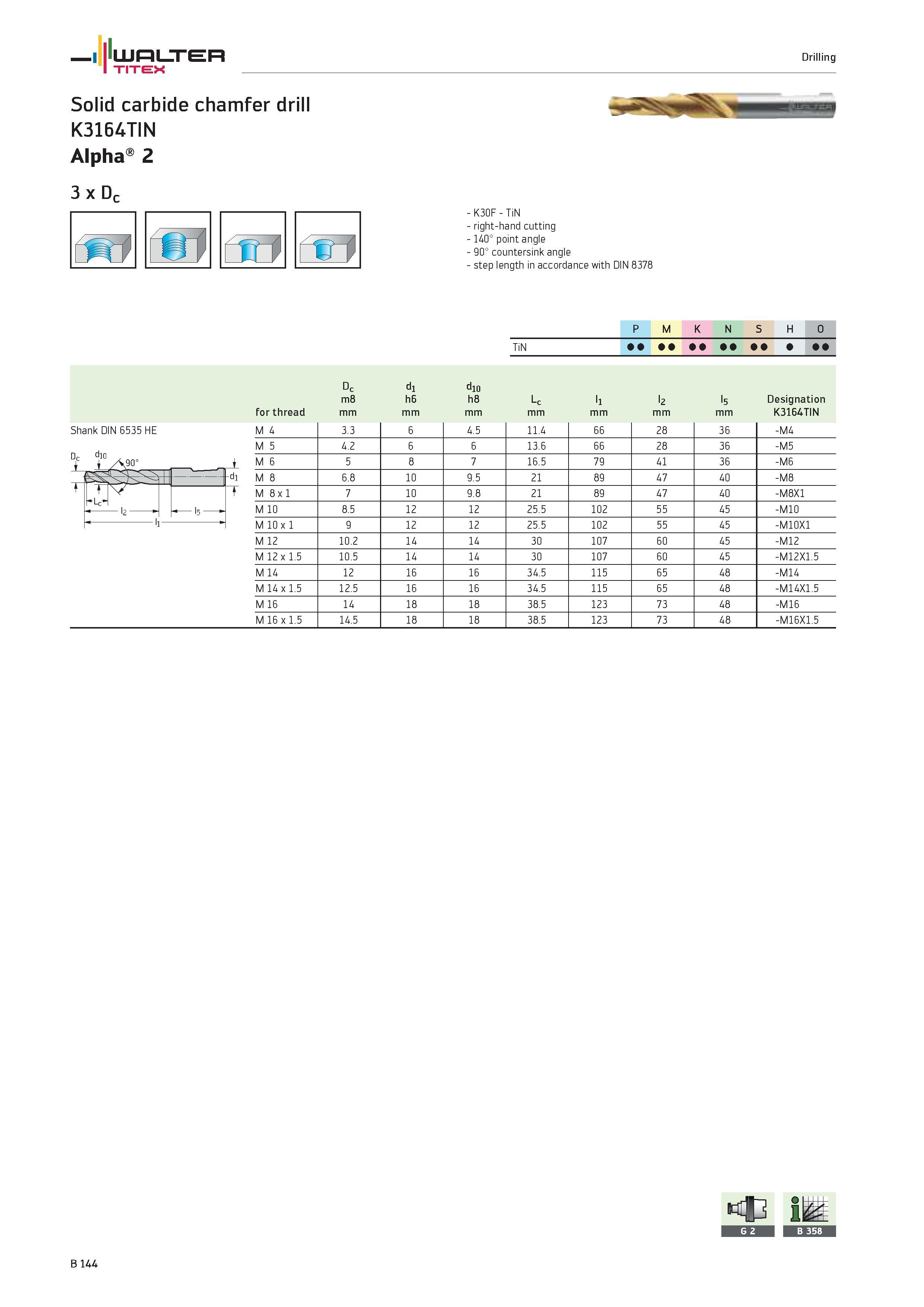

WALTER TITEX Drilling Solid carbide chamfer drill K3164TIN Alpha 2 3 x Dc I CEO1 K30F TiN right-hand cutting 140° point angle 90° countersink angle step length in accordance with DIN 8378 P M K N S H O Dc d1 d10 m8 h6 h8 Lc l1 l2 ls Designation for thread mm K3164TIN Shank DIN 6535 HE M 4 3.3 6 4.5 11.4 66 28 36 -M4 M 5 4.2 6 6 13.6 66 28 36 -M5 Uc i A,90" ± M 6 5 8 7 16.5 79 41 36 -M6 -di M 8 6.8 10 9.5 21 89 47 40 -M8 'L l5 t M 8 x 1 7 10 9.8 21 89 47 40 -M8X1 M 10 8.5 12 12 25.5 102 55 45 -M10 ll M 10 x 1 9 12 12 25.5 102 55 45 -M10X1 M 12 10.2 14 14 30 107 60 45 -M12 M 12 x 1.5 10.5 14 14 30 107 60 45 -M12X1.5 M 14 12 16 16 34.5 115 65 48 -M14 M 14 x 1.5 12.5 16 16 34.5 115 65 48 -M14X1.5 M 16 14 18 18 38.5 123 73 48 -M16 M 16 x 1.5 14.5 18 18 38.5 123 73 48 -M16X1.5 B 144
