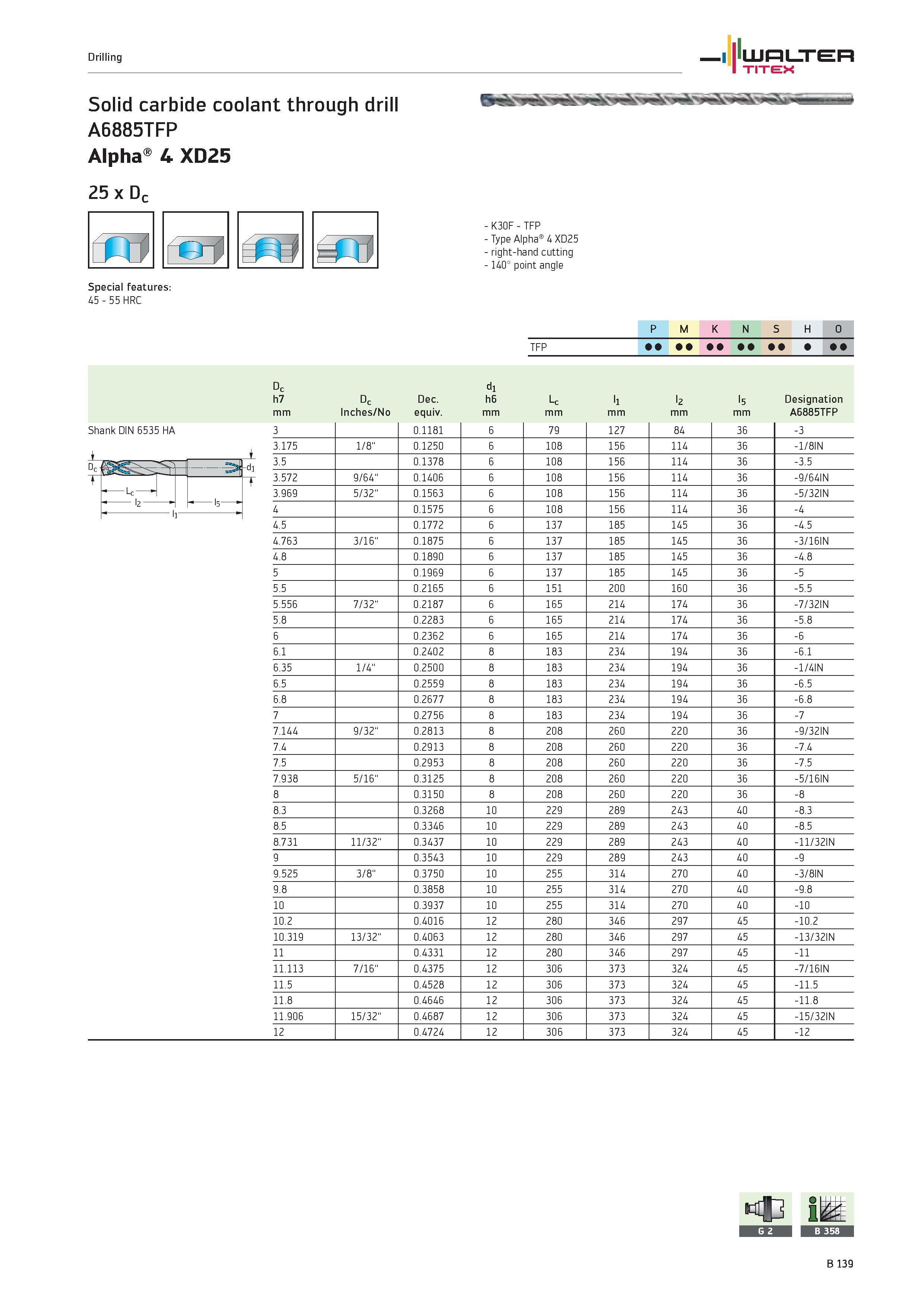

Drilling WALTER TITEX Solid carbide coolant through drill A6885TFP Alpha 4 XD25 25 x Dc rT0 re Special features 45 55 HRC K30F TFP Type Alpha 4 XD25 right-hand cutting 140° point angle P M K N S H O Dc h7 mm Dc Inches/No Dec. equiv. di h6 mm Lc mm li mm l2 mm l5 mm Designation A6885TFP Shank DIN 6535 HA 3 0.1181 6 79 127 84 36 -3 3.175 1/8" 0.1250 6 108 156 114 36 -1/8IN 0.1378 6 108 156 114 36 -3.5 Dc 3 5 fr 3.572 9/64" 0.1406 6 108 156 114 36 -9/64IN Lc -1 3.969 5/32" 0.1563 6 108 156 114 36 -5/32IN l 15 r 4 0.1575 6 108 156 114 36 -4 4.5 0.1772 6 137 185 145 36 -4.5 4.763 3/16" 0.1875 6 137 185 145 36 -3/16IN 4.8 0.1890 6 137 185 145 36 -4.8 5 0.1969 6 137 185 145 36 -5 5.5 0.2165 6 151 200 160 36 -5.5 5.556 7/32" 0.2187 6 165 214 174 36 -7/32IN 5.8 0.2283 6 165 214 174 36 -5.8 6 0.2362 6 165 214 174 36 -6 6.1 0.2402 8 183 234 194 36 -6.1 6.35 1/4" 0.2500 8 183 234 194 36 -1/4IN 6.5 0.2559 8 183 234 194 36 -6.5 6.8 0.2677 8 183 234 194 36 -6.8 7 0.2756 8 183 234 194 36 -7 7.144 9/32" 0.2813 8 208 260 220 36 -9/32IN 7.4 0.2913 8 208 260 220 36 -7.4 7.5 0.2953 8 208 260 220 36 -7.5 7.938 5/16" 0.3125 8 208 260 220 36 -5/16IN 8 0.3150 8 208 260 220 36 -8 8.3 0.3268 10 229 289 243 40 -8.3 8.5 0.3346 10 229 289 243 40 -8.5 8.731 11/32" 0.3437 10 229 289 243 40 -11/32IN 9 0.3543 10 229 289 243 40 -9 9.525 3/8" 0.3750 10 255 314 270 40 -3/8IN 9.8 0.3858 10 255 314 270 40 -9.8 10 0.3937 10 255 314 270 40 -10 10.2 0.4016 12 280 346 297 45 -10.2 10.319 13/32" 0.4063 12 280 346 297 45 -13/32IN 11 0.4331 12 280 346 297 45 -11 11.113 7/16" 0.4375 12 306 373 324 45 -7/16IN 11.5 0.4528 12 306 373 324 45 -11.5 11.8 0.4646 12 306 373 324 45 -11.8 11.906 15/32" 0.4687 12 306 373 324 45 -15/32IN 12 0.4724 12 306 373 324 45 -12
