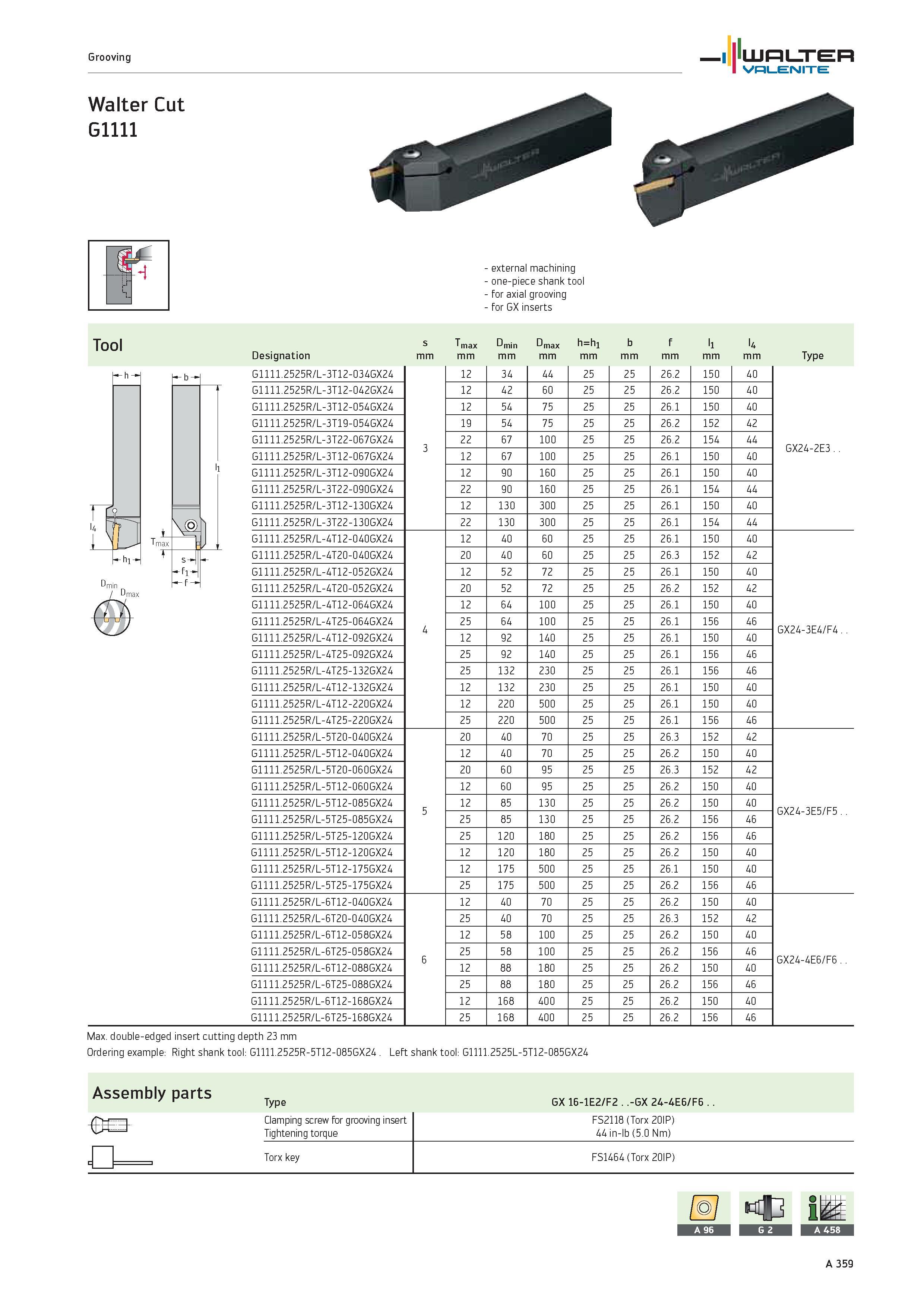

Grooving WALTER Valenite Walter Cut G1111 -i Tool -hi Tmax T external machining one-piece shank tool for axial grooving for GX inserts s Tmax Dmin Dmax h=h1 b f l1 l4 Designation mm Type G1111.2525R/L-3T12-034GX24 12 34 44 25 25 26.2 150 40 G1111.2525R/L-3T12-042GX24 12 42 60 25 25 26.2 150 40 G1111.2525R/L-3T12-054GX24 12 54 75 25 25 26.1 150 40 G1111.2525R/L-3T19-054GX24 19 54 75 25 25 26.2 152 42 G1111.2525R/L-3T22-067GX24 3 22 67 100 25 25 26.2 154 44 GX24-2E3.. G1111.2525R/L-3T12-067GX24 12 67 100 25 25 26.1 150 40 G1111.2525R/L-3T12-090GX24 12 90 160 25 25 26.1 150 40 G1111.2525R/L-3T22-090GX24 22 90 160 25 25 26.1 154 44 G1111.2525R/L-3T12-130GX24 12 130 300 25 25 26.1 150 40 G1111.2525R/L-3T22-130GX24 22 130 300 25 25 26.1 154 44 G1111.2525R/L-4T12-040GX24 12 40 60 25 25 26.1 150 40 G1111.2525R/L-4T20-040GX24 20 40 60 25 25 26.3 152 42 G1111.2525R/L-4T12-052GX24 12 52 72 25 25 26.1 150 40 G1111.2525R/L-4T20-052GX24 20 52 72 25 25 26.2 152 42 G1111.2525R/L-4T12-064GX24 12 64 100 25 25 26.1 150 40 G1111.2525R/L-4T25-064GX24 4 25 64 100 25 25 26.1 156 46 GX24-3E4/F4.. G1111.2525R/L-4T12-092GX24 12 92 140 25 25 26.1 150 40 G1111.2525R/L-4T25-092GX24 25 92 140 25 25 26.1 156 46 G1111.2525R/L-4T25-132GX24 25 132 230 25 25 26.1 156 46 G1111.2525R/L-4T12-132GX24 12 132 230 25 25 26.1 150 40 G1111.2525R/L-4T12-220GX24 12 220 500 25 25 26.1 150 40 G1111.2525R/L-4T25-220GX24 25 220 500 25 25 26.1 156 46 G1111.2525R/L-5T20-040GX24 20 40 70 25 25 26.3 152 42 G1111.2525R/L-5T12-040GX24 12 40 70 25 25 26.2 150 40 G1111.2525R/L-5T20-060GX24 20 60 95 25 25 26.3 152 42 G1111.2525R/L-5T12-060GX24 12 60 95 25 25 26.2 150 40 G1111.2525R/L-5T12-085GX24 5 12 85 130 25 25 26.2 150 40 GX24-3E5/F5.. G1111.2525R/L-5T25-085GX24 25 85 130 25 25 26.2 156 46 G1111.2525R/L-5T25-120GX24 25 120 180 25 25 26.2 156 46 G1111.2525R/L-5T12-120GX24 12 120 180 25 25 26.2 150 40 G1111.2525R/L-5T12-175GX24 12 175 500 25 25 26.1 150 40 G1111.2525R/L-5T25-175GX24 25 175 500 25 25 26.2 156 46 G1111.2525R/L-6T12-040GX24 12 40 70 25 25 26.2 150 40 G1111.2525R/L-6T20-040GX24 25 40 70 25 25 26.3 152 42 G1111.2525R/L-6T12-058GX24 12 58 100 25 25 26.2 150 40 G1111.2525R/L-6T25-058GX24 6 25 58 100 25 25 26.2 156 46 GX24-4E6/F6.. G1111.2525R/L-6T12-088GX24 12 88 180 25 25 26.2 150 40 G1111.2525R/L-6T25-088GX24 25 88 180 25 25 26.2 156 46 G1111.2525R/L-6T12-168GX24 12 168 400 25 25 26.2 150 40 G1111.2525R/L-6T25-168GX24 25 168 400 25 25 26.2 156 46 Max. double-edged insert cutting depth 23 mm Ordering example Right shank tool G1111.2525R-5T12-085GX24 Left shank tool G1111.2525L-5T12-085GX24 Assembly parts Type GX 16-1E2/F2 .-GX 24-4E6/F6 Clamping screw for grooving insert FS2118 (Torx 20IP) Tightening torque 44 in-lb (5.0 Nm) q Torx key FS1464 (Torx 20IP) O b Qfi A 359 D
