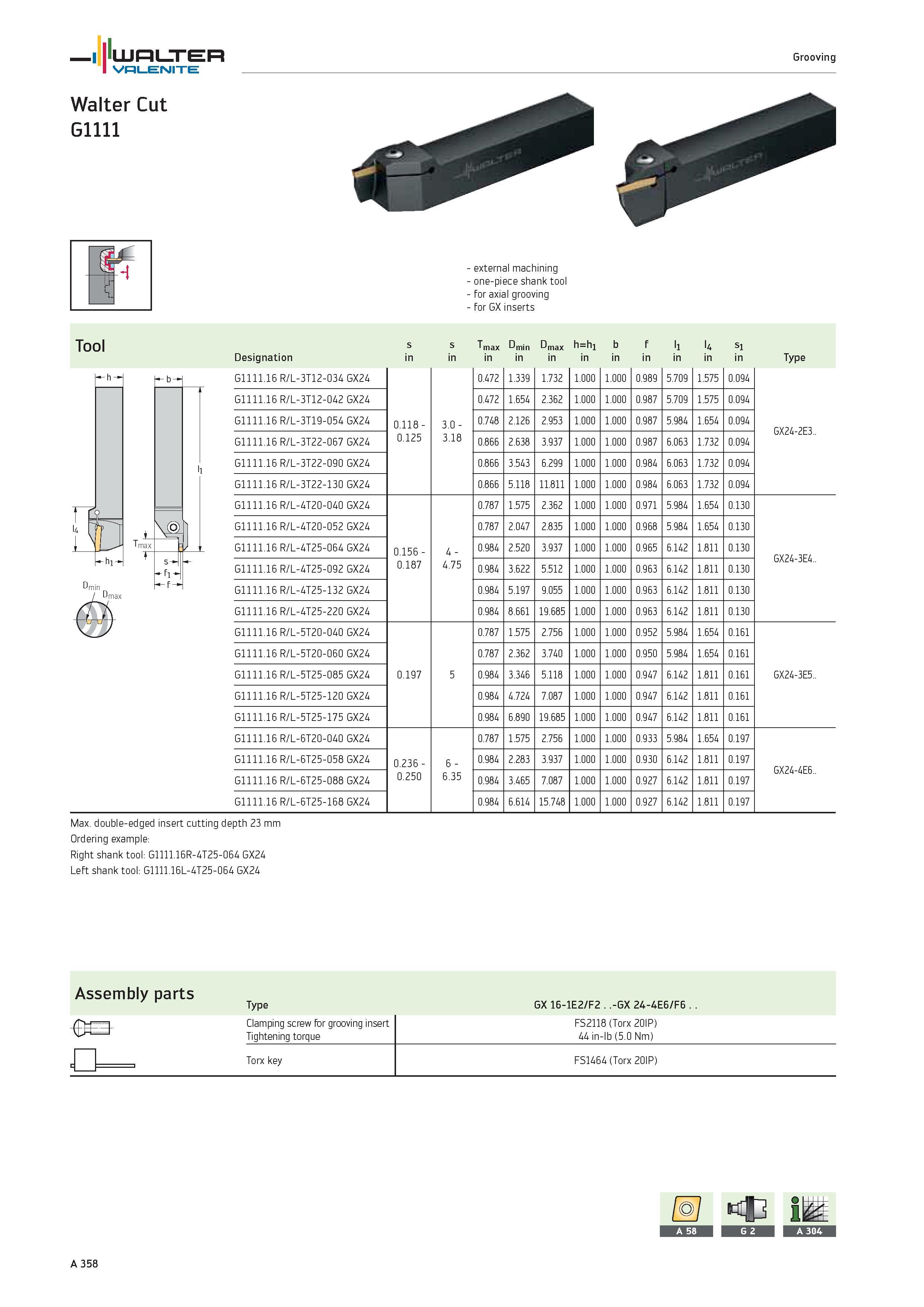

WALTER Valenite Grooving Walter Cut Gllll external machining one-piece shank tool for axial grooving for GX inserts Tool Tmax SH -fl- f- Designation s in s in 'max umin in max in G1111.16 R/L-3T12-034 GX24 0.118 -0.125 3.0 -3.18 0.472 1.339 1.732 1.000 1.000 0.989 5.709 1.575 0.094 GX24-2E3.. G1111.16 R/L-3T12-042 GX24 0.472 1.654 2.362 1.000 1.000 0.987 5.709 1.575 0.094 G1111.16 R/L-3T19-054 GX24 0.748 2.126 2.953 1.000 1.000 0.987 5.984 1.654 0.094 G1111.16 R/L-3T22-067 GX24 0.866 2.638 3.937 1.000 1.000 0.987 6.063 1.732 0.094 G1111.16 R/L-3T22-090 GX24 0.866 3.543 6.299 1.000 1.000 0.984 6.063 1.732 0.094 G1111.16 R/L-3T22-130 GX24 0.866 5.118 11.811 1.000 1.000 0.984 6.063 1.732 0.094 G1111.16 R/L-4T20-040 GX24 0.156 -0.187 4 -4.75 0.787 1.575 2.362 1.000 1.000 0.971 5.984 1.654 0.130 GX24-3E4.. G1111.16 R/L-4T20-052 GX24 0.787 2.047 2.835 1.000 1.000 0.968 5.984 1.654 0.130 G1111.16 R/L-4T25-064 GX24 0.984 2.520 3.937 1.000 1.000 0.965 6.142 1.811 0.130 G1111.16 R/L-4T25-092 GX24 0.984 3.622 5.512 1.000 1.000 0.963 6.142 1.811 0.130 G1111.16 R/L-4T25-132 GX24 0.984 5.197 9.055 1.000 1.000 0.963 6.142 1.811 0.130 G1111.16 R/L-4T25-220 GX24 0.984 8.661 19.685 1.000 1.000 0.963 6.142 1.811 0.130 G1111.16 R/L-5T20-040 GX24 0.197 5 0.787 1.575 2.756 1.000 1.000 0.952 5.984 1.654 0.161 GX24-3E5.. G1111.16 R/L-5T20-060 GX24 0.787 2.362 3.740 1.000 1.000 0.950 5.984 1.654 0.161 G1111.16 R/L-5T25-085 GX24 0.984 3.346 5.118 1.000 1.000 0.947 6.142 1.811 0.161 G1111.16 R/L-5T25-120 GX24 0.984 4.724 7.087 1.000 1.000 0.947 6.142 1.811 0.161 G1111.16 R/L-5T25-175 GX24 0.984 6.890 19.685 1.000 1.000 0.947 6.142 1.811 0.161 G1111.16 R/L-6T20-040 GX24 0.236 -0.250 6 -6.35 0.787 1.575 2.756 1.000 1.000 0.933 5.984 1.654 0.197 GX24-4E6.. G1111.16 R/L-6T25-058 GX24 0.984 2.283 3.937 1.000 1.000 0.930 6.142 1.811 0.197 G1111.16 R/L-6T25-088 GX24 0.984 3.465 7.087 1.000 1.000 0.927 6.142 1.811 0.197 G1111.16 R/L-6T25-168 GX24 0.984 6.614 15.748 1.000 1.000 0.927 6.142 1.811 0.197 =hi f in li in si in Type Max. double-edged insert cutting depth 23 mm Ordering example Right shank tool G1111.16R-4T25-064 GX24 Left shank tool G1111.16L-4T25-064 GX24 h b U Assembly parts Type GX 16-1E2/F2 .-GX 24-4E6/F6 Clamping screw for grooving insert FS2118 (Torx 20IP) Tightening torque 44 in-lb (5.0 Nm) q Torx key FS1464 (Torx 20IP) A 358
