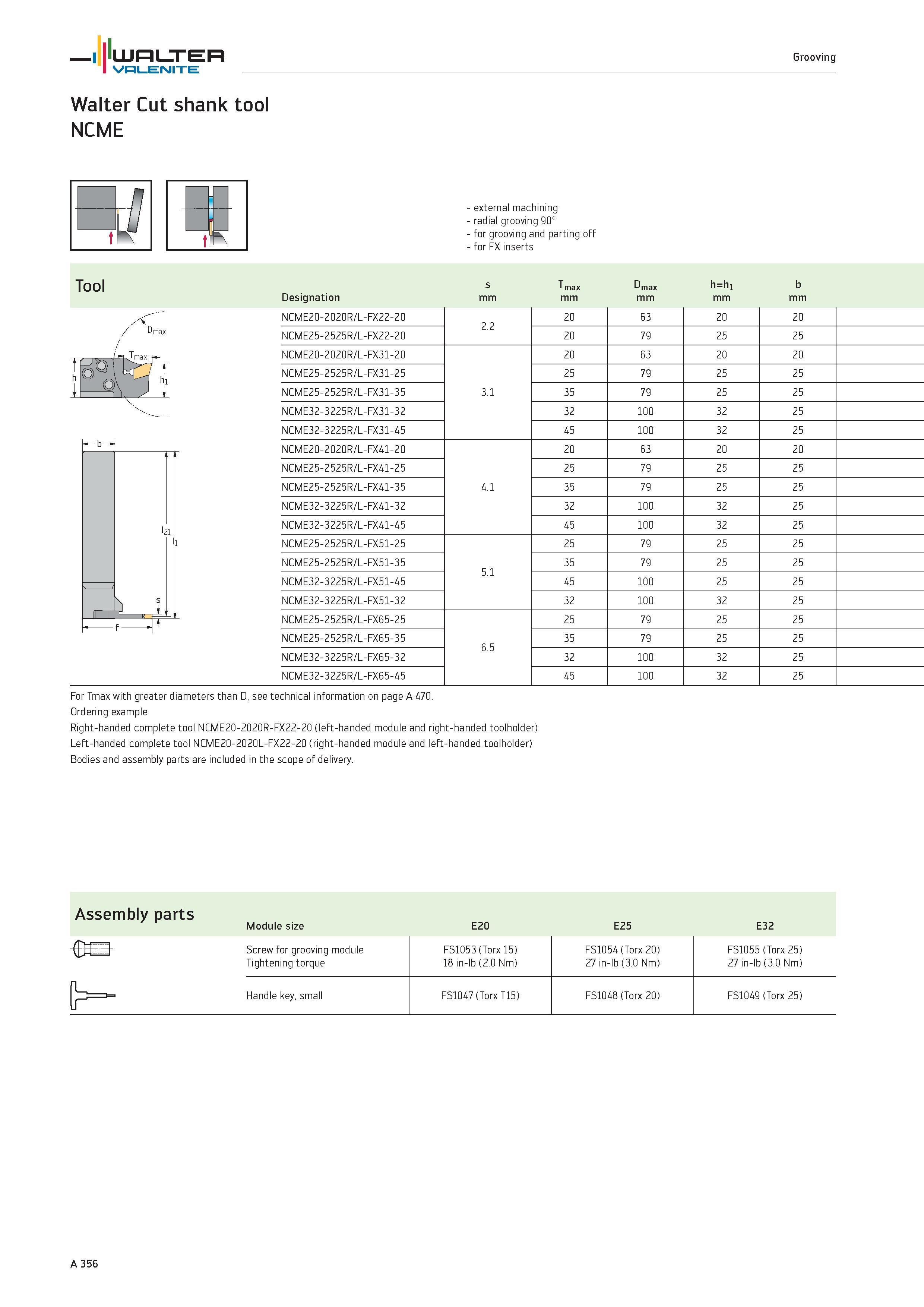

WALTER Grooving Valenite Walter Cut shank tool NCME external machining radial grooving 90° for grooving and parting off for FX inserts Tool Xv / Dmax Designation s mm 1 max mm max mm h=hi mm b mm NCME20-2020R/L-FX22-20 2.2 20 63 20 20 NCME25-2525R/L-FX22-20 20 79 25 25 NCME20-2020R/L-FX31-20 3.1 20 63 20 20 NCME25-2525R/L-FX31-25 25 79 25 25 NCME25-2525R/L-FX31-35 35 79 25 25 NCME32-3225R/L-FX31-32 32 100 32 25 NCME32-3225R/L-FX31-45 45 100 32 25 NCME20-2020R/L-FX41-20 4.1 20 63 20 20 NCME25-2525R/L-FX41-25 25 79 25 25 NCME25-2525R/L-FX41-35 35 79 25 25 NCME32-3225R/L-FX41-32 32 100 32 25 NCME32-3225R/L-FX41-45 45 100 32 25 NCME25-2525R/L-FX51-25 5.1 25 79 25 25 NCME25-2525R/L-FX51-35 35 79 25 25 NCME32-3225R/L-FX51-45 45 100 25 25 NCME32-3225R/L-FX51-32 32 100 32 25 NCME25-2525R/L-FX65-25 6.5 25 79 25 25 NCME25-2525R/L-FX65-35 35 79 25 25 NCME32-3225R/L-FX65-32 32 100 32 25 NCME32-3225R/L-FX65-45 45 100 32 25 For Tmax with greater diameters than D, see technical information on page A 470. Ordering example Right-handed complete tool NCME20-2020R-FX22-20 (left-handed module and right-handed toolholder) Left-handed complete tool NCME20-2020L-FX22-20 (right-handed module and left-handed toolholder) Bodies and assembly parts are included in the scope of delivery. Assembly parts Module size E20 E25 E32 Screw for grooving module Tightening torque FS1053 (Torx 15) 18 in-lb (2.0 Nm) FS1054 (Torx 20) 27 in-lb (3.0 Nm) FS1055 (Torx 25) 27 in-lb (3.0 Nm) Handle key, small FS1047(Torx T15) FS1048 (Torx 20) FS1049 (Torx 25) A 356
