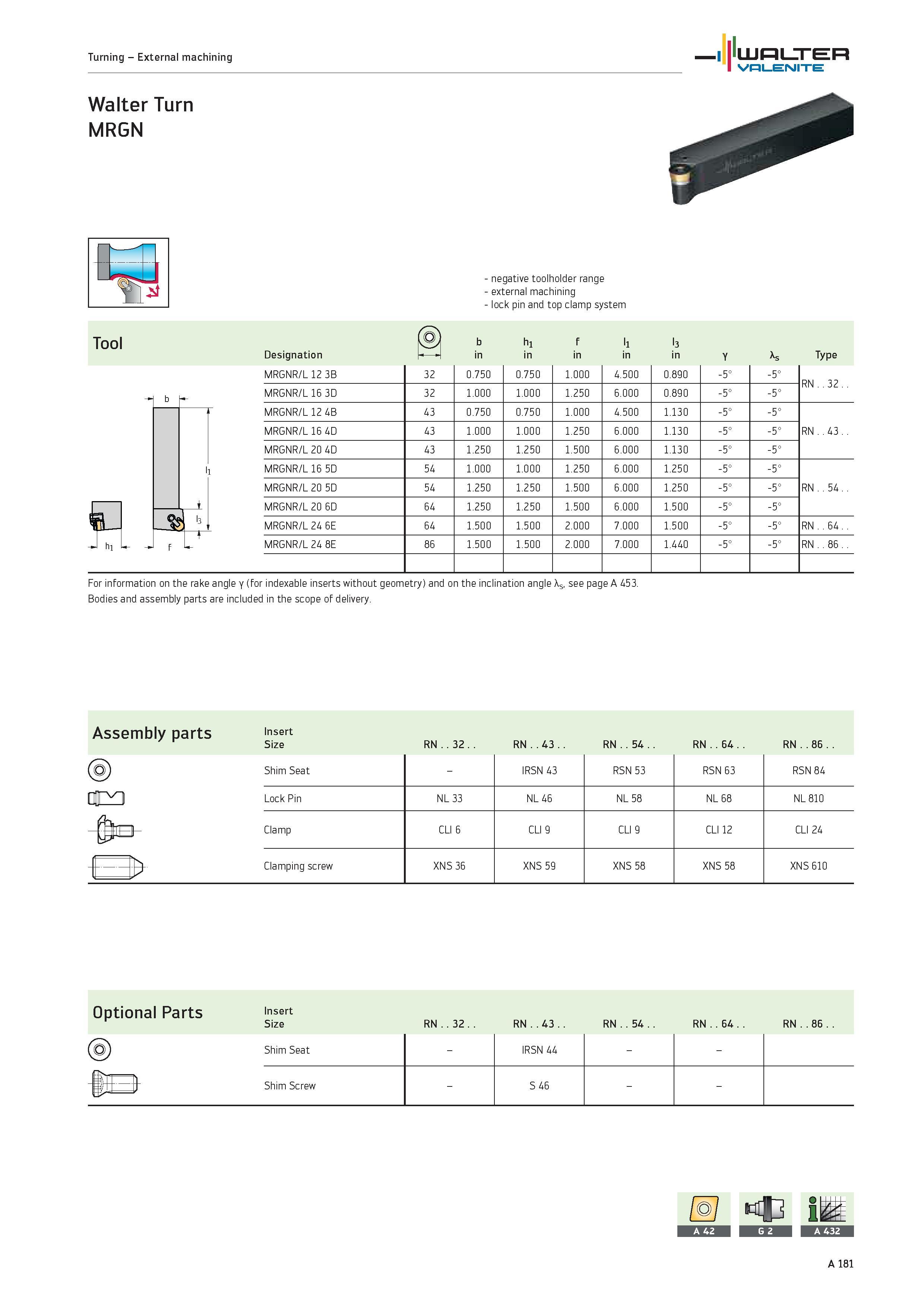

WALTER Valenite Turning External machining Walter Turn MRGN j negative toolholder range external machining lock pin and top clamp system Tool b hi f li l3 Designation in Y As Type MRGNR/L 12 3B 32 0.750 0.750 1.000 4.500 0.890 -5° -5° RN 32 MRGNR/L 16 3D 32 1.000 1.000 1.250 6.000 0.890 -5° -5° MRGNR/L 12 4B 43 0.750 0.750 1.000 4.500 1.130 -5° -5° MRGNR/L 16 4D 43 1.000 1.000 1.250 6.000 1.130 -5° -5° RN 43 MRGNR/L 20 4D 43 1.250 1.250 1.500 6.000 1.130 -5° -5° MRGNR/L 16 5D 54 1.000 1.000 1.250 6.000 1.250 -5° -5° MRGNR/L 20 5D 54 1.250 1.250 1.500 6.000 1.250 -5° -5° RN 54 MRGNR/L 20 6D 64 1.250 1.250 1.500 6.000 1.500 -5° -5° MRGNR/L 24 6E 64 1.500 1.500 2.000 7.000 1.500 -5° -5° RN 64 MRGNR/L 24 8E 86 1.500 1.500 2.000 7.000 1.440 -5° -5° RN 86 For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs. see page A 453. Bodies and assembly parts are included in the scope of delivery. b Assembly parts Dim Insert Size RN..32.. RN 43 RN 54 RN 64 RN 86 Shim Seat IRSN 43 RSN 53 RSN 63 RSN 84 Lock Pin NL 33 NL 46 NL 58 NL 68 NL 810 Clamp CLI 6 CLI 9 CLI 9 CLI 12 CLI 24 Clamping screw XNS 36 XNS 59 XNS 58 XNS 58 XNS 610 Optional Parts Insert Size RN 32 RN 43 RN 54 RN 64 RN 86 Shim Seat IRSN 44 Shim Screw S 46 A 181
