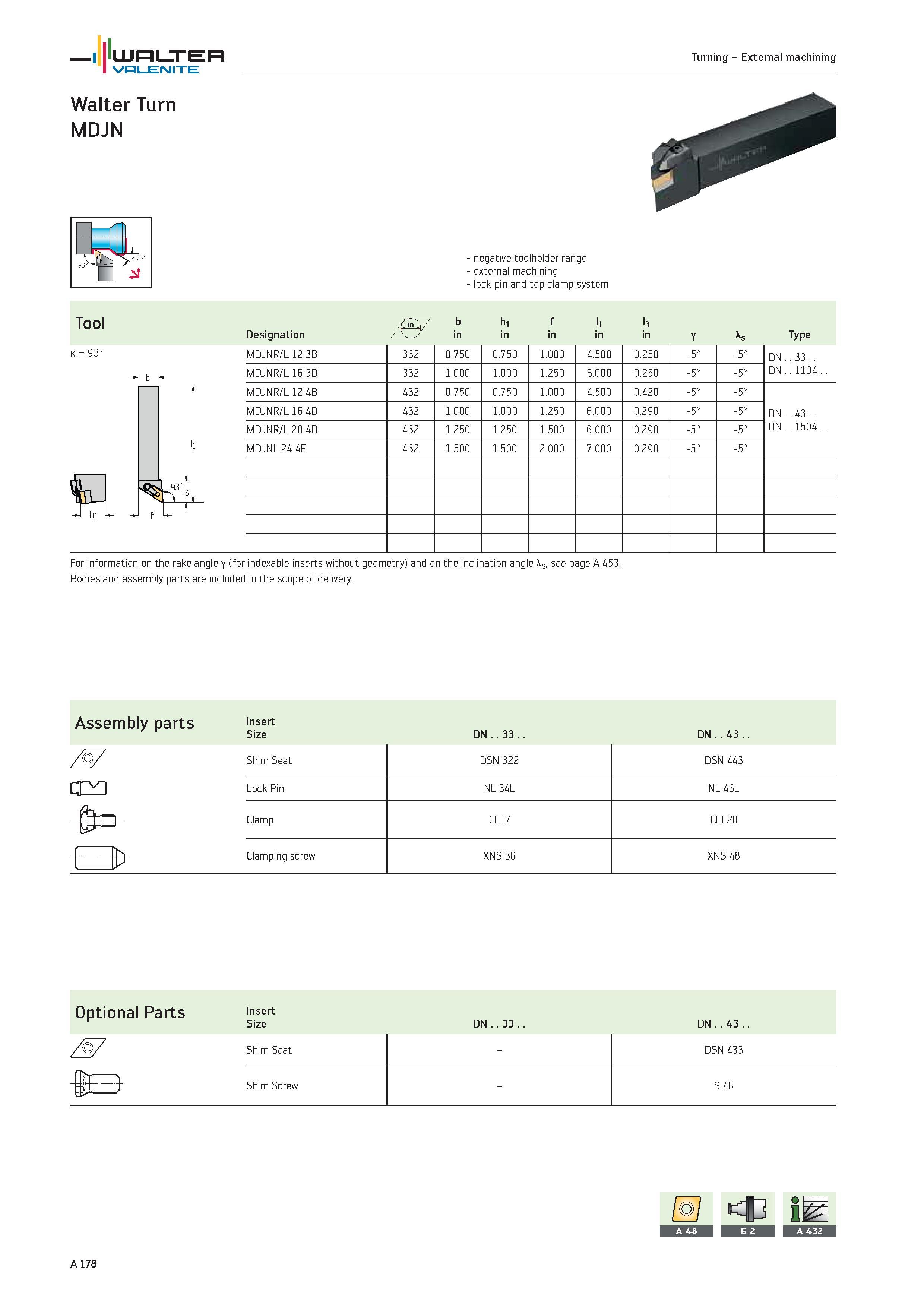

- negative toolholder range external machining lock pin and top clamp system Tool Designation b in hi in f in li in l3 in Y As Type k 93° MDJNR/L 12 3B 332 0.750 0.750 1.000 4.500 0.250 -5° -5° DN .33.. MDJNR/L 16 3D 332 1.000 1.000 1.250 6.000 0.250 -5° -5° DN .1104.. MDJNR/L 12 4B 432 0.750 0.750 1.000 4.500 0.420 -5° -5° MDJNR/L 16 4D 432 1.000 1.000 1.250 6.000 0.290 -5° -5° DN 43 MDJNR/L 20 4D 432 1.250 1.250 1.500 6.000 0.290 -5° -5° DN .1504.. MDJNL 24 4E 432 1.500 1.500 2.000 7.000 0.290 -5° -5° n .93l3 1 in For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs. see page A 453. Bodies and assembly parts are included in the scope of delivery. Assembly parts Insert Size DN 33 DN..43. Optional Parts Insert Size DN 33 DN 43 Shim Seat DSN 433 Shim Screw S 46 A 178
