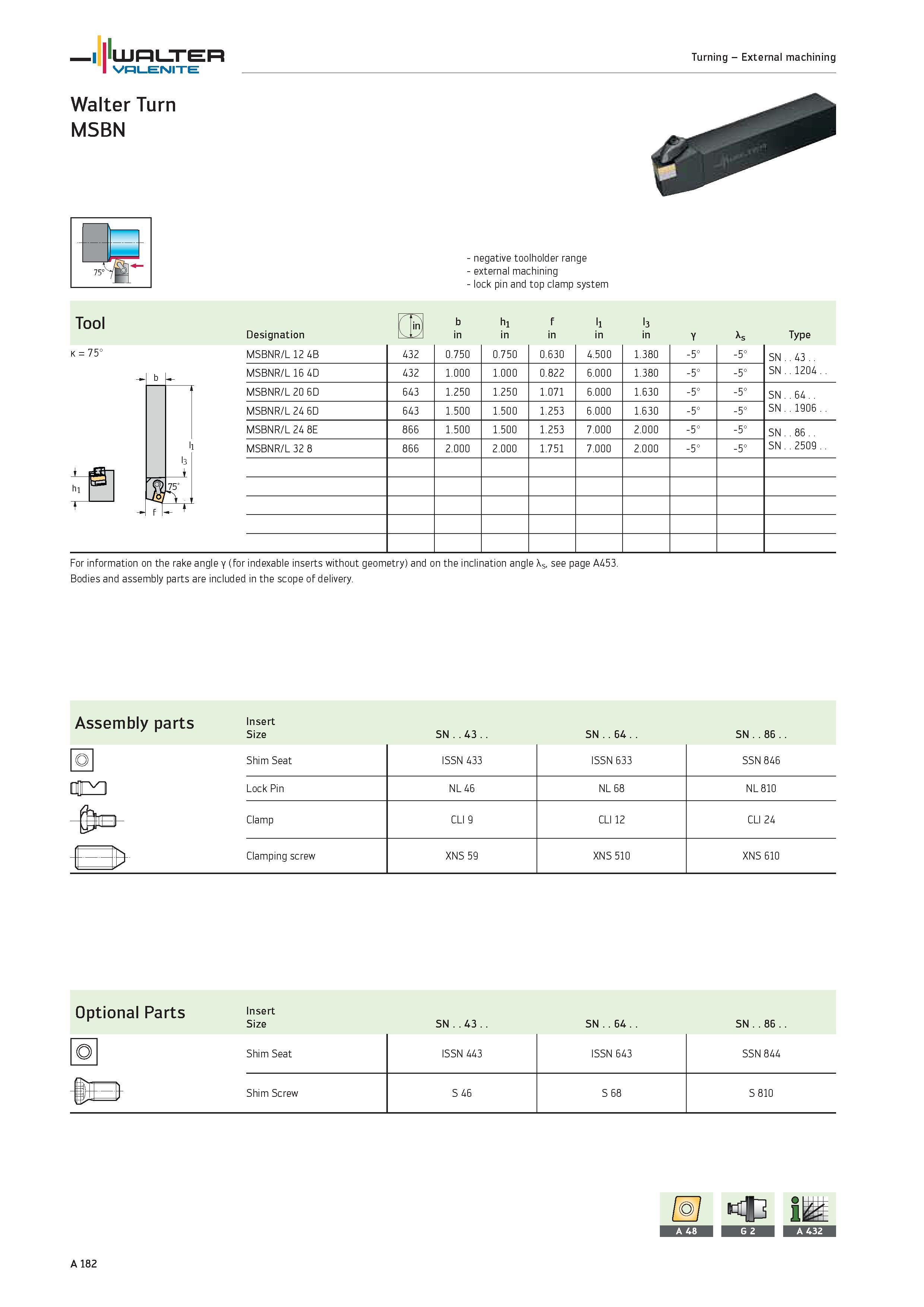

75 7 negative toolholder range external machining lock pin and top clamp system Tool b hi f li l3 Designation X' in Y As Type k 75° b J ll l3 t w ,75" fl- MSBNR/L 12 4B 432 0.750 0.750 0.630 4.500 1.380 -5° -5° SN 43 SN .1204.. MSBNR/L 16 4D 432 1.000 1.000 0.822 6.000 1.380 -5° -5° MSBNR/L 20 6D 643 1.250 1.250 1.071 6.000 1.630 -5° -5° SN 64 SN .1906.. MSBNR/L 24 6D 643 1.500 1.500 1.253 6.000 1.630 -5° -5° MSBNR/L 24 8E 866 1.500 1.500 1.253 7.000 2.000 -5° -5° SN 86 SN .2509. MSBNR/L 32 8 866 2.000 2.000 1.751 7.000 2.000 -5° -5° For information on the rake angle y (for indexable inserts without geometry) and on the inclination angle Xs. see page A453. Bodies and assembly parts are included in the scope of delivery. Optional Parts Insert Size SN 43 SN 64 SN 86 Shim Seat ISSN 443 ISSN 643 SSN 844 Shim Screw S 46 S 68 S 810 A 182
