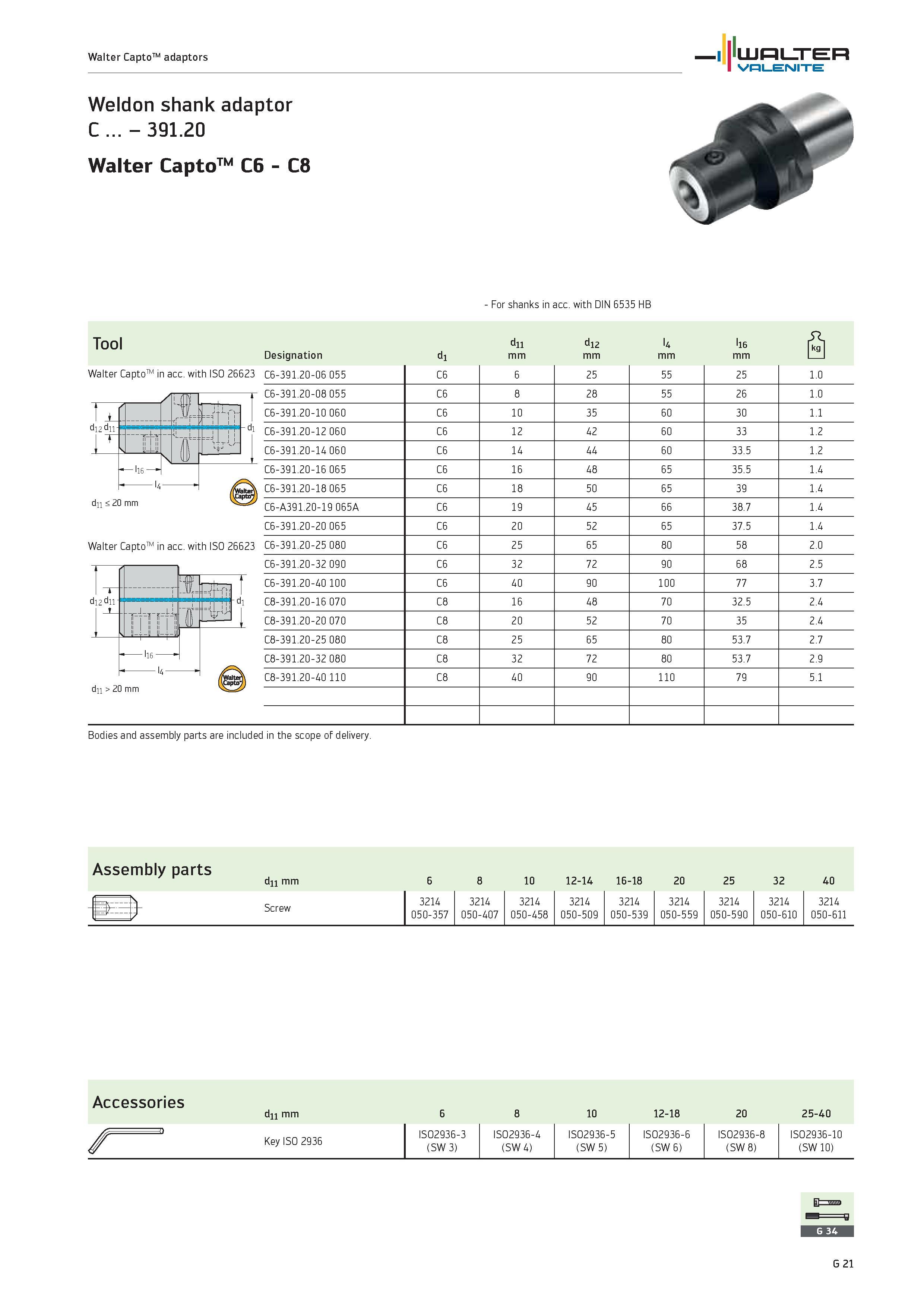

WALTER Valenite Walter CaptoTM adaptors Weldon shank adaptor C 39i.20 Walter Capto C6 C8 For shanks in acc. with DIN 6535 HB Tool dii di2 U li6 rkgi Designation di mm 1 1 d12d11 dn < 20 mm dn > 20 mm C6-391.20-06 055 C6 6 25 55 25 1.0 C6-391.20-08 055 C6 8 28 55 26 1.0 C6-391.20-10 060 C6 10 35 60 30 1.1 C6-391.20-12 060 C6 12 42 60 33 1.2 C6-391.20-14 060 C6 14 44 60 33.5 1.2 C6-391.20-16 065 C6 16 48 65 35.5 1.4 C6-391.20-18 065 C6 18 50 65 39 1.4 C6-A391.20-19 065A C6 19 45 66 38.7 1.4 C6-391.20-20 065 C6 20 52 65 37.5 1.4 C6-391.20-25 080 C6 25 65 80 58 2.0 C6-391.20-32 090 C6 32 72 90 68 2.5 C6-391.20-40 100 C6 40 90 100 77 3.7 C8-391.20-16 070 C8 16 48 70 32.5 2.4 C8-391.20-20 070 C8 20 52 70 35 2.4 C8-391.20-25 080 C8 25 65 80 53.7 2.7 C8-391.20-32 080 C8 32 72 80 53.7 2.9 C8-391.20-40 110 C8 40 90 110 79 5.1 TM TM Bodies and assembly parts are included in the scope of delivery. Assembly parts dii mm Screw 3214 050-357 3214 050-407 i0 3214 050-458 i2-i4 3214 050-509 i6-i8 3214 050-539 20 3214 050-559 25 3214 050-590 32 3214 050-610 40 3214 050-611 6 8 Accessories dii mm 6 8 i0 i2-i8 20 25-40 Key ISO 2936 ISO2936-3 (SW 3) ISO2936-4 (SW 4) ISO2936-5 (SW 5) ISO2936-6 (SW 6) ISO2936-8 (SW 8) ISO2936-10 (SW 10) G 2i
