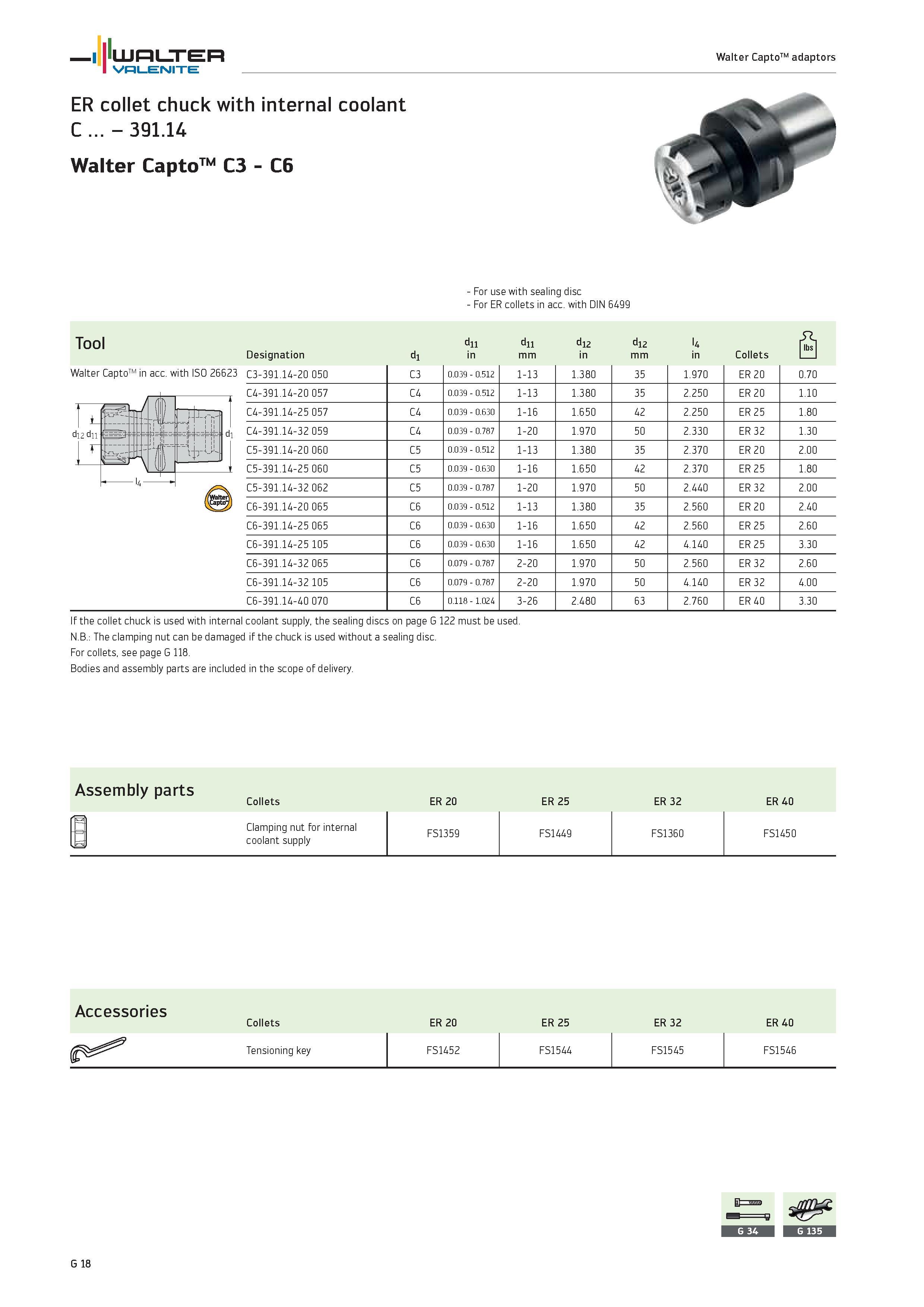

WALTER Valenite Walter CaptoTM adaptors ER collet chuck with internal coolant C 391.14 Walter Capto C3 C6 For use with sealing disc For ER collets in acc. with DIN 6499 Tool dii dii di2 di2 U Designation di in mm in Collets 1 1 di2 dii I n jTM U\ H J-r “j H V r C3-391.14-20 050 C3 0.039 0.512 1-13 1.380 35 1.970 ER 20 0.70 C4-391.14-20 057 C4 0.039 0.512 1-13 1.380 35 2.250 ER 20 1.10 C4-391.14-25 057 C4 0.039 0.630 1-16 1.650 42 2.250 ER 25 1.80 C4-391.14-32 059 C4 0.039 0.787 1-20 1.970 50 2.330 ER 32 1.30 C5-391.14-20 060 C5 0.039 0.512 1-13 1.380 35 2.370 ER 20 2.00 C5-391.14-25 060 C5 0.039 0.630 1-16 1.650 42 2.370 ER 25 1.80 C5-391.14-32 062 C5 0.039 0.787 1-20 1.970 50 2.440 ER 32 2.00 C6-391.14-20 065 C6 0.039 0.512 1-13 1.380 35 2.560 ER 20 2.40 C6-391.14-25 065 C6 0.039 0.630 1-16 1.650 42 2.560 ER 25 2.60 C6-391.14-25 105 C6 0.039 0.630 1-16 1.650 42 4.140 ER 25 3.30 C6-391.14-32 065 C6 0.079 0.787 2-20 1.970 50 2.560 ER 32 2.60 C6-391.14-32 105 C6 0.079 0.787 2-20 1.970 50 4.140 ER 32 4.00 C6-391.14-40 070 C6 0.118 1.024 3-26 2.480 63 2.760 ER 40 3.30 If the collet chuck is used with internal coolant supply, the sealing discs on page G 122 must be used. N.B. The clamping nut can be damaged if the chuck is used without a sealing disc. For collets, see page G 118. Bodies and assembly parts are included in the scope of delivery. Assembly parts Collets ER 20 ER 25 ER 32 ER 40 Clamping nut for internal coolant supply FS1359 FS1449 FS1360 FS1450 Accessories Collets ER 20 ER 25 ER 32 ER 40 Tensioning key FS1452 FS1544 FS1545 FS1546 G 18
