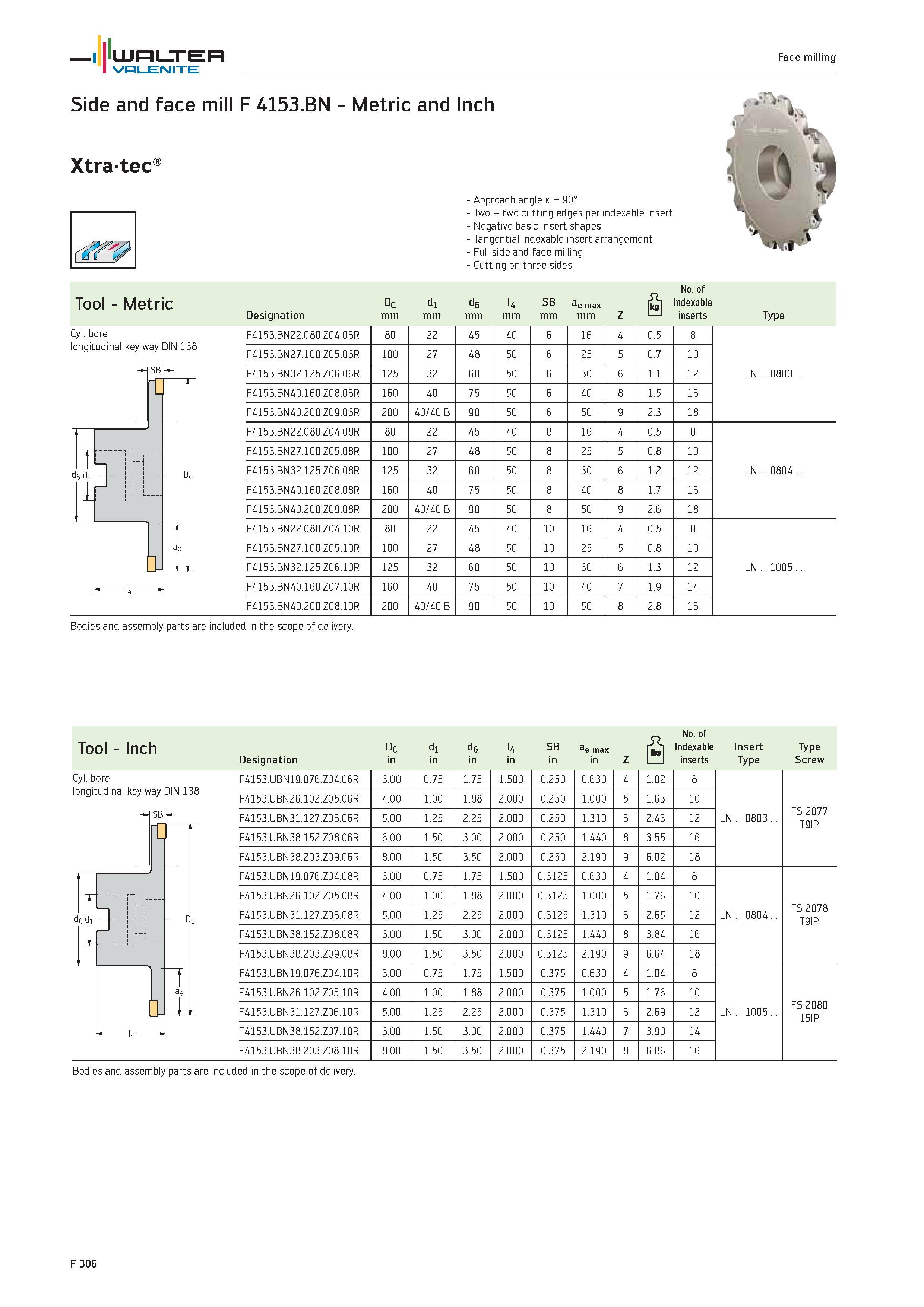

WALTER Valenite Face milling Side and face mill F 4153.BN Metric and Inch Xtra-tec Tool Metric Cyl. bore longitudinal key way DIN 138 Approach angle k 90° Two + two cutting edges per indexable insert Negative basic insert shapes Tangential indexable insert arrangement Full side and face milling Cutting on three sides Designation Dc mm di mm d6 mm l4 mm SB mm ae max mm Z S No. of ndexable inserts Type F4153.BN22.080.Z04.06R 80 22 45 40 6 16 4 0.5 8 F4153.BN27.100.Z05.06R 100 27 48 50 6 25 5 0.7 10 F4153.BN32.125.Z06.06R 125 32 60 50 6 30 6 1.1 12 LN .0803.. F4153.BN40.160.Z08.06R 160 40 75 50 6 40 8 1.5 16 F4153.BN40.200.Z09.06R 200 40/40 B 90 50 6 50 9 2.3 18 F4153.BN22.080.Z04.08R 80 22 45 40 8 16 4 0.5 8 F4153.BN27.100.Z05.08R 100 27 48 50 8 25 5 0.8 10 F4153.BN32.125.Z06.08R 125 32 60 50 8 30 6 1.2 12 LN .0804.. F4153.BN40.160.Z08.08R 160 40 75 50 8 40 8 1.7 16 F4153.BN40.200.Z09.08R 200 40/40 B 90 50 8 50 9 2.6 18 F4153.BN22.080.Z04.10R 80 22 45 40 10 16 4 0.5 8 F4153.BN27.100.Z05.10R 100 27 48 50 10 25 5 0.8 10 F4153.BN32.125.Z06.10R 125 32 60 50 10 30 6 1.3 12 LN .1005.. F4153.BN40.160.Z07.10R 160 40 75 50 10 40 7 1.9 14 F4153.BN40.200.Z08.10R 200 40/40 B 90 50 10 50 8 2.8 16 Bodies and assembly parts are included in the scope of delivery. Tool Inch Dc di d6 U SB ae max No. of S Indexable Insert Type Designation in Z 1 inserts Type Screw Cyl. bore longitudinal key way DIN 138 F4153.UBN19.076.Z04.06R 3.00 0.75 1.75 1.500 0.250 0.630 4 1.02 8 LN .0803.. FS 2077 T9IP F4153.UBN26.102.Z05.06R 4.00 1.00 1.88 2.000 0.250 1.000 5 1.63 10 F4153.UBN31.127.Z06.06R 5.00 1.25 2.25 2.000 0.250 1.310 6 2.43 12 F4153.UBN38.152.Z08.06R 6.00 1.50 3.00 2.000 0.250 1.440 8 3.55 16 F4153.UBN38.203.Z09.06R 8.00 1.50 3.50 2.000 0.250 2.190 9 6.02 18 F4153.UBN19.076.Z04.08R 3.00 0.75 1.75 1.500 0.3125 0.630 4 1.04 8 LN .0804.. FS 2078 T9IP F4153.UBN26.102.Z05.08R 4.00 1.00 1.88 2.000 0.3125 1.000 5 1.76 10 F4153.UBN31.127.Z06.08R 5.00 1.25 2.25 2.000 0.3125 1.310 6 2.65 12 F4153.UBN38.152.Z08.08R 6.00 1.50 3.00 2.000 0.3125 1.440 8 3.84 16 F4153.UBN38.203.Z09.08R 8.00 1.50 3.50 2.000 0.3125 2.190 9 6.64 18 F4153.UBN19.076.Z04.10R 3.00 0.75 1.75 1.500 0.375 0.630 4 1.04 8 LN .1005.. FS 2080 15IP F4153.UBN26.102.Z05.10R 4.00 1.00 1.88 2.000 0.375 1.000 5 1.76 10 F4153.UBN31.127.Z06.10R 5.00 1.25 2.25 2.000 0.375 1.310 6 2.69 12 F4153.UBN38.152.Z07.10R 6.00 1.50 3.00 2.000 0.375 1.440 7 3.90 14 F4153.UBN38.203.Z08.10R 8.00 1.50 3.50 2.000 0.375 2.190 8 6.86 16 Bodies and assembly parts are included in the scope of delivery. F 306
