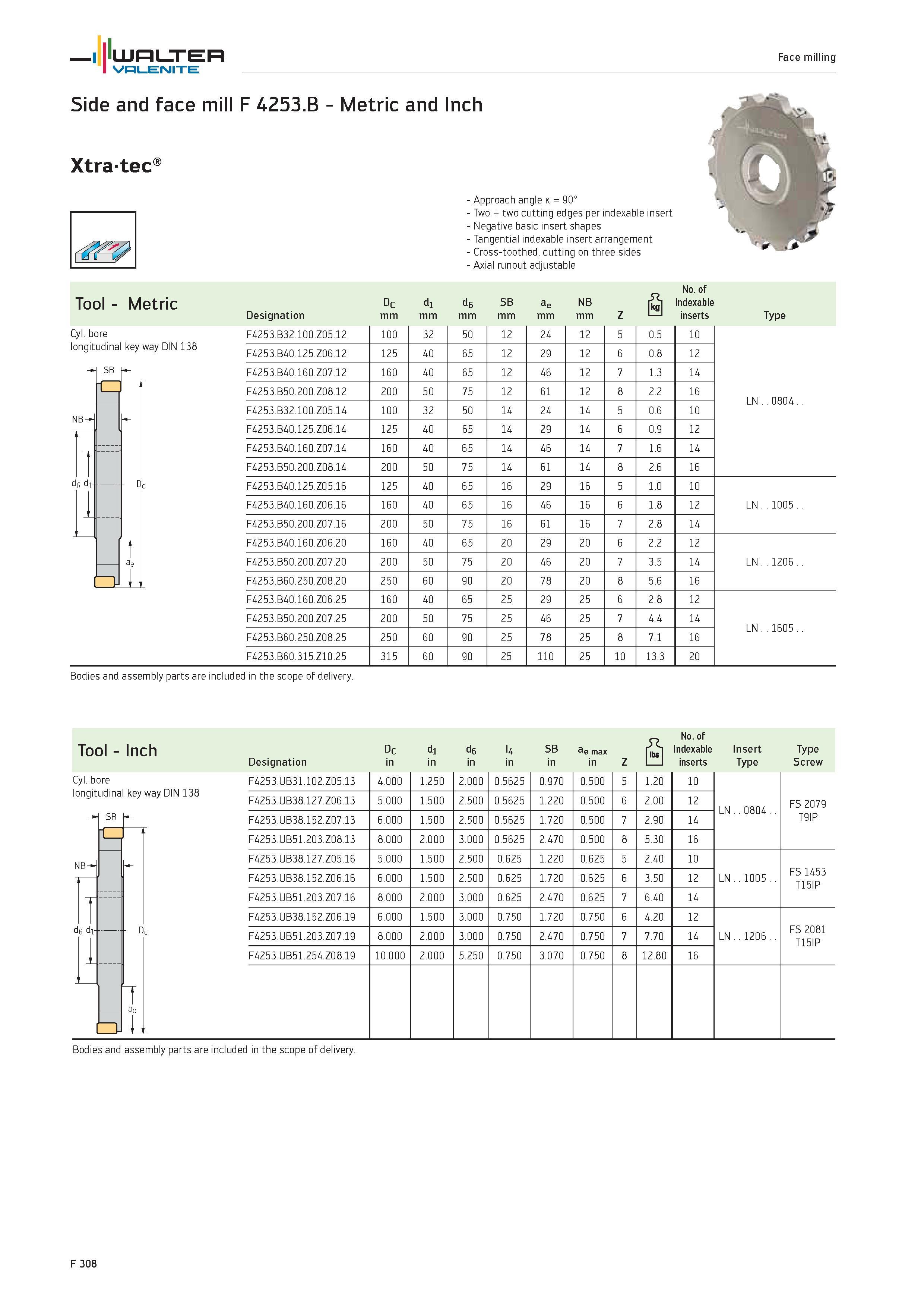

WALTER Valenite Face milling Side and face mill F 4253.B Metric and Inch Xtratec Tool Metric Cyl. bore longitudinal key way DIN 138 SB r 1 NB-"- h T d6 d1 1 v Dc I ae J I V Approach angle k 90° Two + two cutting edges per indexable insert Negative basic insert shapes Tangential indexable insert arrangement Cross-toothed, cutting on three sides Axial runout adjustable Designation Dc mm d1 mm d6 mm SB mm ae mm NB mm Z S No. of ndexable inserts Type F4253.B32.100.Z05.12 0 0 32 50 12 24 12 5 0.5 10 F4253.B40.125.Z06.12 125 40 65 12 29 12 6 0.8 12 F4253.B40.160.Z07.12 160 40 65 12 46 12 7 1.3 14 F4253.B50.200.Z08.12 200 50 75 12 61 12 8 2.2 16 LN .0804.. F4253.B32.100.Z05.14 100 32 50 14 24 14 5 0.6 10 F4253.B40.125.Z06.14 125 40 65 14 29 14 6 0.9 12 F4253.B40.160.Z07.14 0 6 40 65 14 46 14 7 1.6 14 F4253.B50.200.Z08.14 200 50 75 14 61 14 8 2.6 16 F4253.B40.125.Z05.16 125 40 65 16 29 16 5 1.0 10 F4253.B40.160.Z06.16 0 6 40 65 16 46 16 6 1.8 12 5 0 0 N L F4253.B50.200.Z07.16 200 50 75 16 61 16 7 2.8 14 F4253.B40.160.Z06.20 0 6 40 65 20 29 20 6 2.2 12 F4253.B50.200.Z07.20 200 50 75 20 46 20 7 3.5 14 6 0 2 N L F4253.B60.250.Z08.20 250 60 90 20 78 20 8 5.6 16 F4253.B40.160.Z06.25 160 40 65 25 29 25 6 2.8 12 F4253.B50.200.Z07.25 200 50 75 25 46 25 7 4.4 14 5 0 6 N L F4253.B60.250.Z08.25 250 60 90 25 78 25 8 7.1 16 F4253.B60.315.Z10.25 315 60 90 25 110 25 10 13.3 20 Bodies and assembly parts are included in the scope of delivery. Tool Inch DC d1 d6 l4 SB ae max No. of jS Indexable Insert Type Designation in Z 1 inserts Type Screw Cyl. bore longitudinal key way DIN 138 1 F4253.UB31.102.Z05.13 4.000 1.250 2.000 0.5625 0.970 0.500 5 1.20 10 LN 0804 FS 2079 T9IP F4253.UB38.127.Z06.13 5.000 1.500 2.500 0.5625 1.220 0.500 6 2.00 12 F4253.UB38.152.Z07.13 6.000 1.500 2.500 0.5625 1.720 0.500 7 2.90 14 F4253.UB51.203.Z08.13 8.000 2.000 3.000 0.5625 2.470 0.500 8 5.30 16 F4253.UB38.127.Z05.16 5.000 1.500 2.500 0.625 1.220 0.625 5 2.40 10 LN 1005 FS 1453 T15IP F4253.UB38.152.Z06.16 6.000 1.500 2.500 0.625 1.720 0.625 6 3.50 12 F4253.UB51.203.Z07.16 8.000 2.000 3.000 0.625 2.470 0.625 7 6.40 14 F4253.UB38.152.Z06.19 6.000 1.500 3.000 0.750 1.720 0.750 6 4.20 12 6 0 N L FS 2081 T15IP F4253.UB51.203.Z07.19 8.000 2.000 3.000 0.750 2.470 0.750 7 7.70 14 F4253.UB51.254.Z08.19 10.000 2.000 5.250 0.750 3.070 0.750 8 12.80 16 Bodies and assembly parts are included in the scope of delivery. SB NB D F 308
