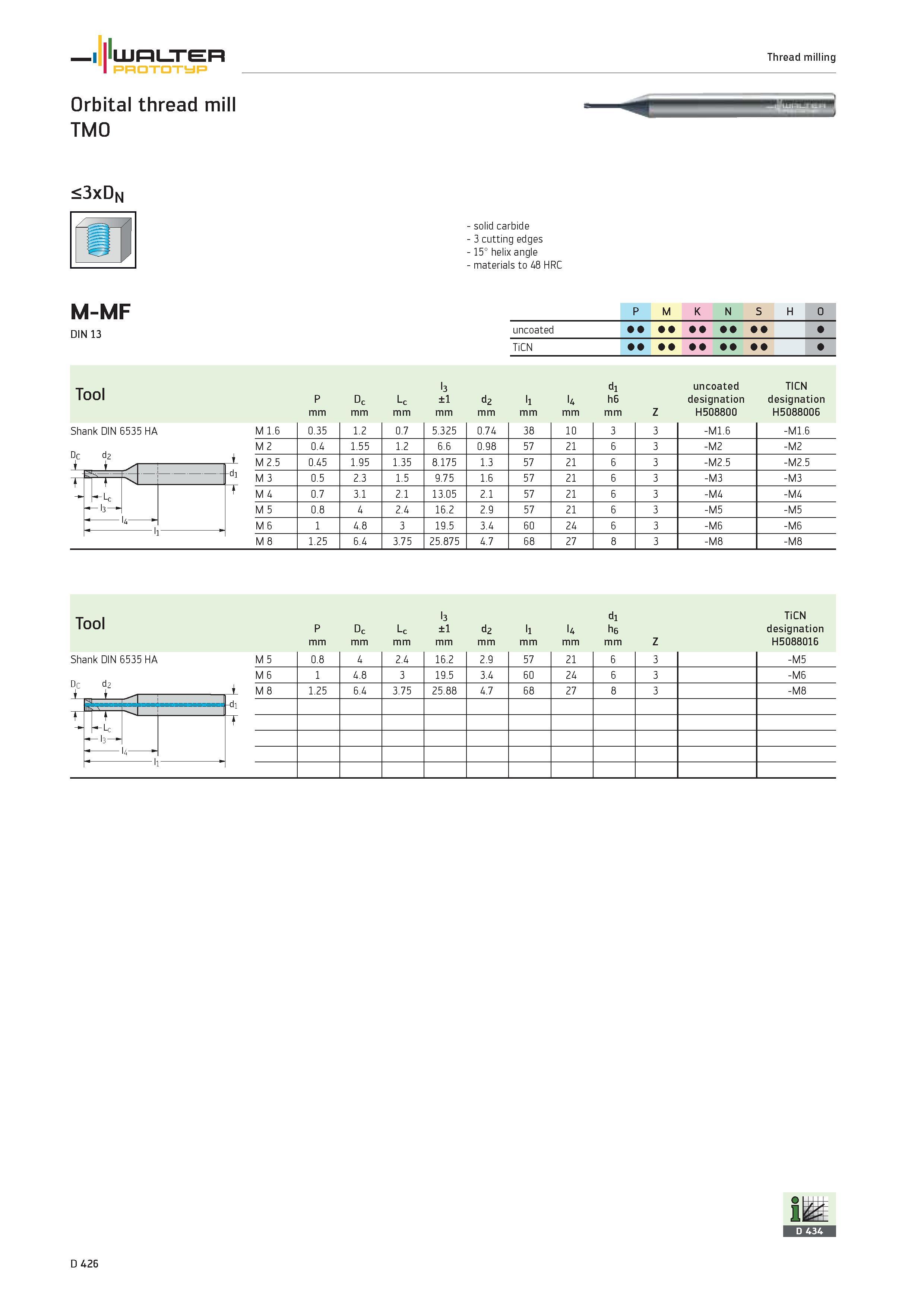

WALTER Prototyp Orbital thread mill TMO Thread milling <3xDn solid carbide 3 cutting edges 15° helix angle materials to 48 HRC M-MF DIN 13 P M K N S H O uncoated TiCN Tool P mm Dc mm Lc mm l3 ±l mm d2 mm ll mm U mm di h6 mm Z uncoated designation H508800 TICN designation H5088006 Shank DIN 6535 HA M 1.6 0.35 1.2 0.7 5.325 0.74 38 10 3 3 -M1.6 -M1.6 Dc d2 1 M 2 0.4 1.55 1.2 6.6 0.98 57 21 6 3 -M2 -M2 M 2.5 0.45 1.95 1.35 8.175 1.3 57 21 6 3 -M2.5 -M2.5 -di M 3 0.5 2.3 1.5 9.75 1.6 57 21 6 3 -M3 -M3 t f V t M 4 0.7 3.1 2.1 13.05 2.1 57 21 6 3 -M4 -M4 M 5 0.8 4 2.4 16.2 2.9 57 21 6 3 -M5 -M5 4 1 M 6 1 4.8 3 19.5 3.4 60 24 6 3 -M6 -M6 M 8 1.25 6.4 3.75 25.875 4.7 68 27 8 3 -M8 -M8 Tool P Dc Lc l3 ±l d2 Ii I4 di h6 TiCN designation mm Z H5088016 Shank DIN 6535 HA Dc M 5 0.8 4 2.4 16.2 2.9 57 21 6 3 -M5 M 6 1 4.8 3 19.5 3.4 60 24 6 3 -M6 M 8 1.25 6.4 3.75 25.88 4.7 68 27 8 3 -M8 MilW
