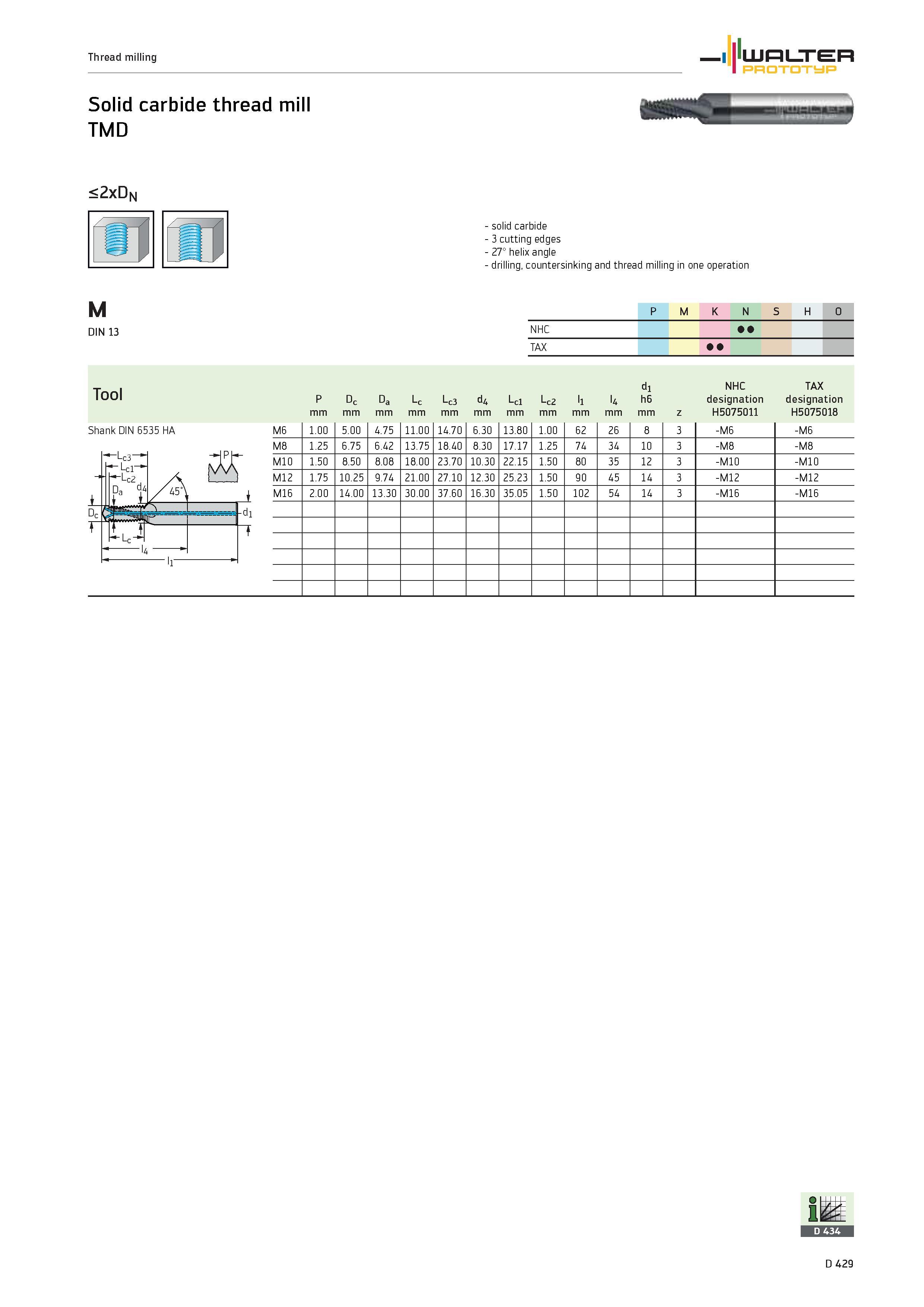

Thread milling WALTER PROTOTYP Solid carbide thread mill tmd solid carbide 3 cutting edges 27° helix angle drilling, countersinking and thread milling in one operation M DIN 13 P M K N S H O NHC TAX Tool Shank DIN 6535 HA Lc3“ Lcr Lc2d Da d,4 -d P mm c mm '-'a mm c mm Lc3 mm d4 mm Lcl mm Lc2 mm ll mm u mm di h6 NHC designation H5075011 TAX designation H5075018 M6 1.00 5.00 4.75 11.00 14.70 6.30 13.80 1.00 62 26 8 3 -M6 -M6 M8 1.25 6.75 6.42 13.75 18.40 8.30 17.17 1.25 74 34 10 3 -M8 -M8 M10 1.50 8.50 8.08 18.00 23.70 10.30 22.15 1.50 80 35 12 3 -M10 -M10 M12 1.75 10.25 9.74 21.00 27.10 12.30 25.23 1.50 90 45 14 3 -M12 -M12 M16 2.00 14.00 13.30 30.00 37.60 16.30 35.05 1.50 102 54 14 3 -M16 -M16 mm z
