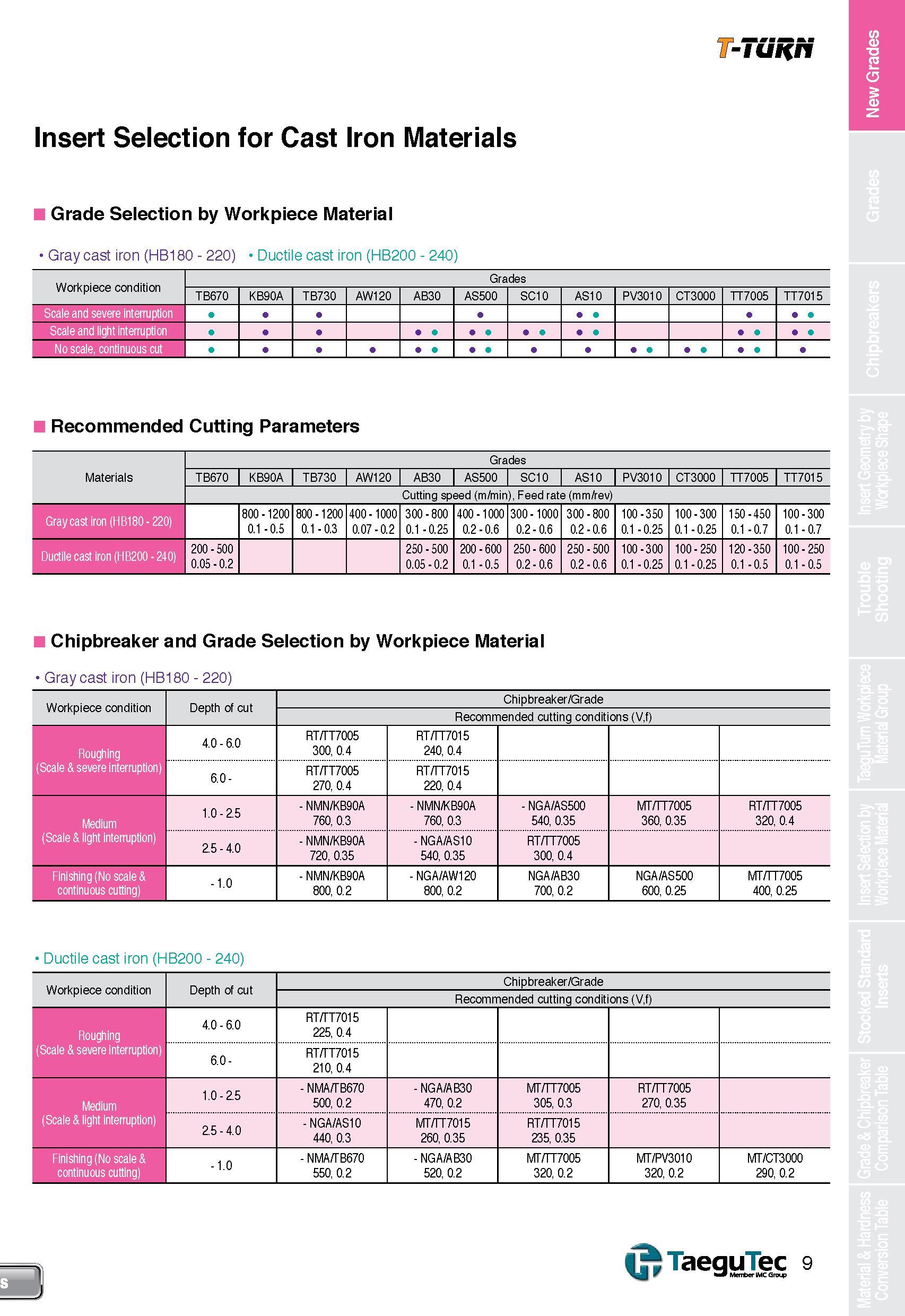

T-TURN Insert Selection for Cast Iron Materials Grade Selection by Workpiece Material Gray cast iron (HB180 - 220) Ductile cast iron (HB200 - 240) Workpiece condition Grades TB670 KB90A TB730 AW120 AB30 AS500 SC10 AS10 PV3010 CT3000 TT7005 TT7015 Recommended Cutting Parameters Grades Materials TB670 KB90A TB730 AW120 AB30 AS500 SC10 AS10 PV3010 CT3000 TT7005 TT7015 Cutting speed (m/min), Feed rate (mm/rev) Gray cast iron (HB180 220) 800-1200 0.1 -0.5 800-1200 0.1-0.3 400-1000 0.07-0.2 300-800 0.1 -0.25 400-1000 0.2-0.6 300-1000 0.2-0.6 300-800 0.2-0.6 100-350 0.1 -0.25 100-300 0.1-0.25 150-450 0.1 -0.7 100-300 0.1-0.7 Ductile cast iron (HB200 240) 200-500 0.05-0.2 250-500 0.05-0.2 200-600 0.1 -0.5 250-600 0.2-0.6 250-500 0.2-0.6 100-300 0.1 -0.25 100-250 0.1-0.25 120-350 0.1 -0.5 100-250 0.1-0.5 Chipbreaker and Grade Selection by Workpiece Material Gray cast iron (HB180 - 220) Workpiece condition Depth of cut Chip breaker/Grade Recommended cutting conditions (V,f) Roughing 4.0 - 6.0 RT/TT7005 300, 0.4 RT/TT7015 240, 0.4 (Scale & severe interruption) 6.0- RT/TT7005 270, 0.4 RT/TT7015 220, 0.4 Medium 1.0-2.5 - NMN/KB90A 760, 0.3 - NMN/KB90A 760, 0.3 - NGA/AS500 540, 0.35 MTYTT70Q5 360, 0.35 RT/TT7005 320, 0.4 (Scale & light interruption) 2.5 - 4.0 - NMN/KB90A 720, 0.35 - NGA/AS10 540, 0.35 RT/1T7005 300, 0.4 Finishing (No scale & continuous cutting) -1.0 - NMN/KB90A 800, 0.2 - NG A/AW 120 800, 0.2 NGA/AB30 700, 0.2 NGA/AS500 600, 0.25 MT/TT7005 400, 0.25 Ductile cast iron (HB200 - 240) Workpiece condition Depth of cut Chip breaker/Grade Recommended cutting conditions (V,f) Roughing 4.0 - 6.0 RT/TT7015 225, 0.4 (Scale & severe interruption) 6.0- RT/TT7015 210,0.4 Medium 1.0-2.5 - NMA/TB670 500, 0.2 - NGA/AB30 470, 0.2 MT/TT7005 305, 0.3 RT/TT7005 270, 0.35 (Scale & light interruption) 2.5-4.0 - NGA/AS10 440, 0.3 MT/TT7015 260, 0.35 RT/1T7015 235, 0.35 Finishing (No scale & continuous cutting) -1.0 - NMA/TB670 550, 0.2 - NGA/AB30 520, 0.2 MT/TT7005 320, 0.2 MT/PV3010 320, 0.2 MT/CT3000 290, 0.2 U TaequTec 9 W MeiTtjerlMCQroU)
