10 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.10

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 10 0010 ENG Lab2u

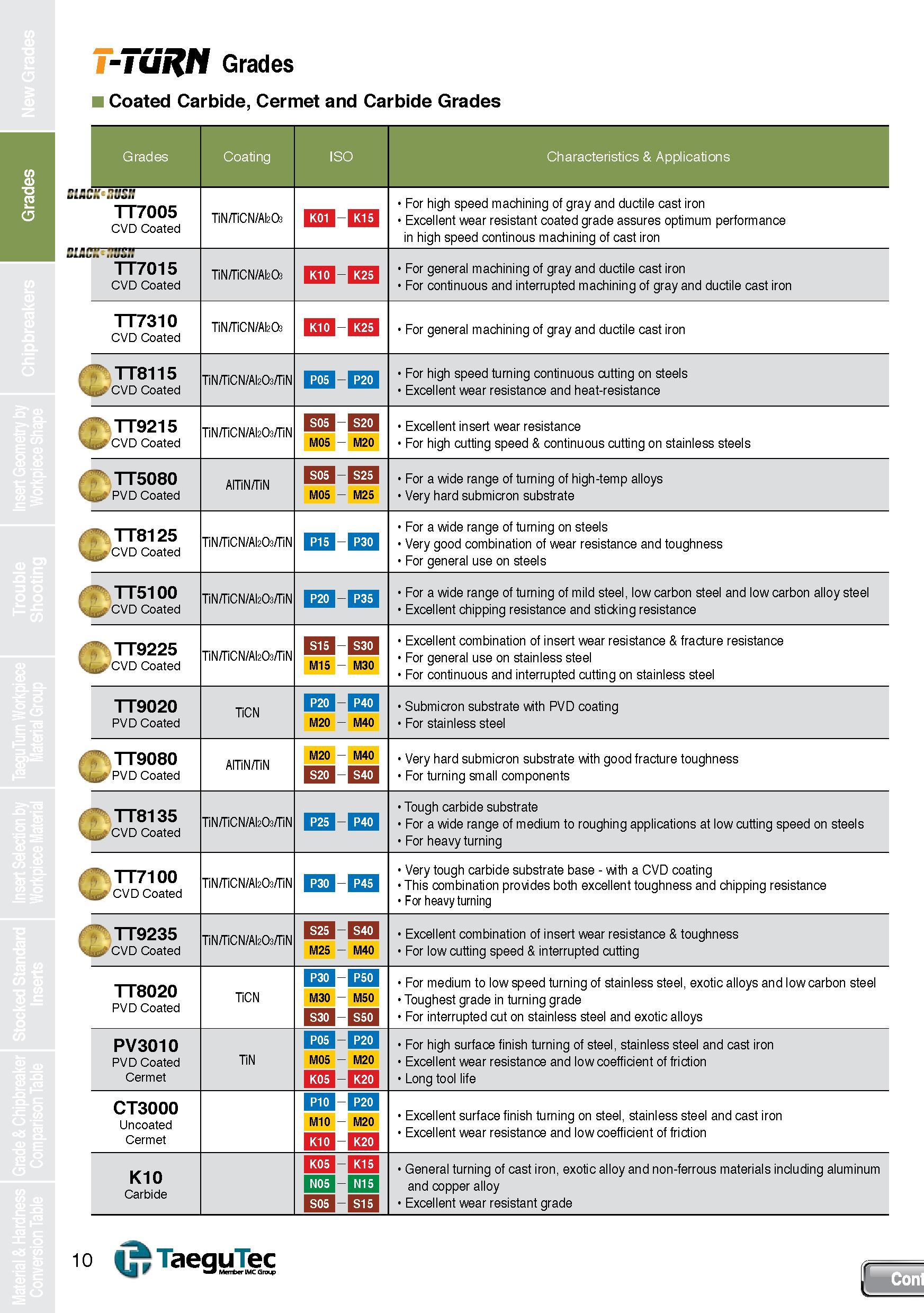

T-TURN Grades Coated Carbide, Cermet and Carbide Grades Coating ISO Characteristics & Applications met: susr, TT7005 CVD Coated TiN/TiCN/Al203 QQ-QQ For high speed machining of gray and ductile cast iron Excellent wear resistant coated grade assures optimum performance in high speed continous machining of cast iron uuwn - m/un TT7015 CVD Coated TiN/TiCN/Al203 on EH For general machining of gray and ductile cast iron For continuous and interrupted machining of gray and ductile cast iron TT7310 CVD Coated TiN/TiCN/Al203 on EH For general machining of gray and ductile cast iron TT8115 S& CVD Coated TiN/TiCN/Al203/TiN Eg El For high speed turning continuous cutting on steels Excellent wear resistance and heat-resistance TT9215 ifcrCVD Coated TiN/TiCN/Al203/TiN E3 El M05 M20 Excellent insert wear resistance For high cutting speed & continuous cutting on stainless steels TT5080 PVD Coated AITiN/TiN M05 M25 For a wide range of turning of high-temp alloys Very hard submicron substrate TT8125 CVD Coated TiN/TiCN/Al203/TiN 123 1 For a wide range of turning on steels Very good combination of wear resistance and toughness For general use on steels TT5100 4 CVD Coated TiN/TiCN/Al203/TiN El E3 For a wide range of turning of mild steel, low carbon steel and low carbon alloy steel Excellent chipping resistance and sticking resistance TT9225 CVD Coated TiN/TiCN/Al203/TiN El M15 M30 Excellent combination of insert wear resistance & fracture resistance For general use on stainless steel For continuous and interrupted cutting on stainless steel TT9020 PVD Coated TiCN El E3 M20 - M40 Submicron substrate with PVD coating For stainless steel TT9080 PVD Coated AITiN/TiN M20 M40 El El Very hard submicron substrate with good fracture toughness For turning small components TT8135 CVD Coated TiN/TiCN/Al203/TiN Tough carbide substrate For a wide range of medium to roughing applications at low cutting speed on steels For heavy turning ( TT7100 CVD Coated TiN/TiCN/Al203/TiN Very tough carbide substrate base - with a CVD coating This combination provides both excellent toughness and chipping resistance For heavy turning TT9235 CVD Coated TiN/TiCN/Al203/TiN El M25 - M40 Excellent combination of insert wear resistance & toughness For low cutting speed & interrupted cutting TT8020 PVD Coated TiCN U3 123 M30 M50 CETi T - gaa For medium to low speed turning of stainless steel, exotic alloys and low carbon steel Toughest grade in turning grade For interrupted cut on stainless steel and exotic alloys PV3010 PVD Coated Cermet TiN E3 El M05 - M20 E3J-E3 For high surface finish turning of steel, stainless steel and cast iron Excellent wear resistance and low coefficient of friction Long tool life CT3000 Un coated Cermet El El M10 M20 EH El Excellent surface finish turning on steel, stainless steel and cast iron Excellent wear resistance and low coefficient of friction K10 Carbide TOl-BH 53B General turning of cast iron, exotic alloy and non-ferrous materials including aluminum and copper alloy Excellent wear resistant grade 10 t TaeguTec V
