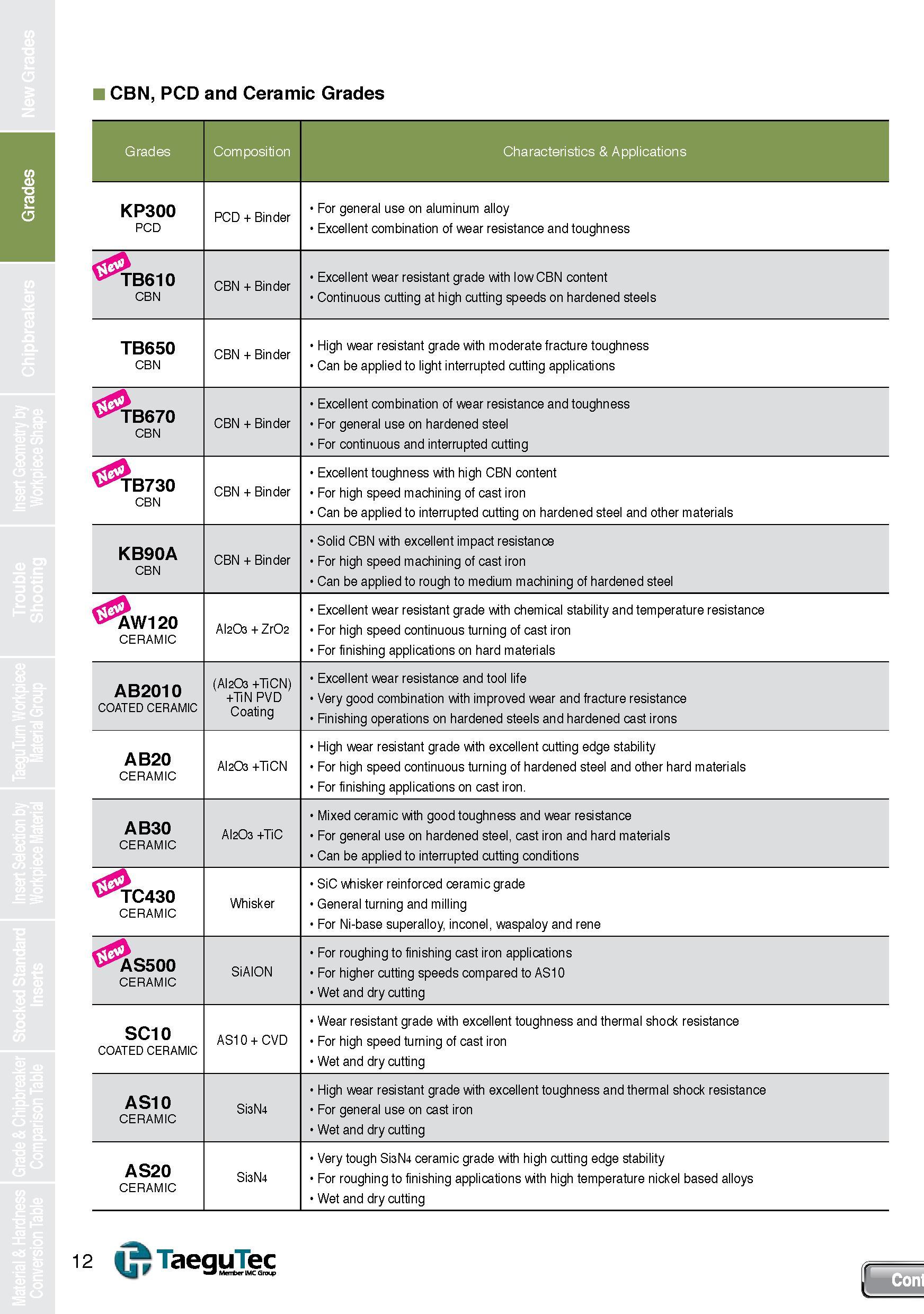

CBN, PCD and Ceramic Grades Grades Composition Characteristics & Applications KP300 PCD PCD + Binder For general use on aluminum alloy Excellent combination of wear resistance and toughness TB610 CBN CBN + Binder Excellent wear resistant grade with low CBN content Continuous cutting at high cutting speeds on hardened steels TB650 CBN CBN + Binder High wear resistant grade with moderate fracture toughness Can be applied to light interrupted cutting applications B670 CBN CBN + Binder Excellent combination of wear resistance and toughness For general use on hardened steel For continuous and interrupted cutting B730 CBN CBN + Binder Excellent toughness with high CBN content For high speed machining of cast iron Can be applied to interrupted cutting on hardened steel and other materials KB90A CBN CBN + Binder Solid CBN with excellent impact resistance For high speed machining of cast iron Can be applied to rough to medium machining of hardened steel AW120 CERAMIC AI2O3 + Zr02 Excellent wear resistant grade with chemical stability and temperature resistance For high speed continuous turning of cast iron For finishing applications on hard materials AB2010 COATED CERAMIC (AI2O3 +71CN) +71N PVD Coating Excellent wear resistance and tool life Very good combination with improved wear and fracture resistance Finishing operations on hardened steels and hardened cast irons AB20 CERAMIC AI2O3 +71 CN High wear resistant grade with excellent cutting edge stability For high speed continuous turning of hardened steel and other hard materials For finishing applications on cast iron. AB30 CERAMIC AI2O3 +TiC Mixed ceramic with good toughness and wear resistance For general use on hardened steel, cast iron and hard materials Can be applied to interrupted cutting conditions TC430 CERAMIC Whisker SiC whisker reinforced ceramic grade General turning and milling For Ni-base superalloy, inconel, waspaloy and rene S500 CERAMIC SiAION For roughing to finishing cast iron applications For higher cutting speeds compared to AS10 Wet and dry cutting SC10 COATED CERAMIC AS10 + CVD Wear resistant grade with excellent toughness and thermal shock resistance For high speed turning of cast iron Wet and dry cutting AS10 CERAMIC Si3N4 High wear resistant grade with excellent toughness and thermal shock resistance For general use on cast iron Wet and dry cutting AS20 CERAMIC Si3N4 Very tough Si3N4 ceramic grade with high cutting edge stability For roughing to finishing applications with high temperature nickel based alloys Wet and dry cutting 12 t TaeguTec V fc Men rlMCGron>
