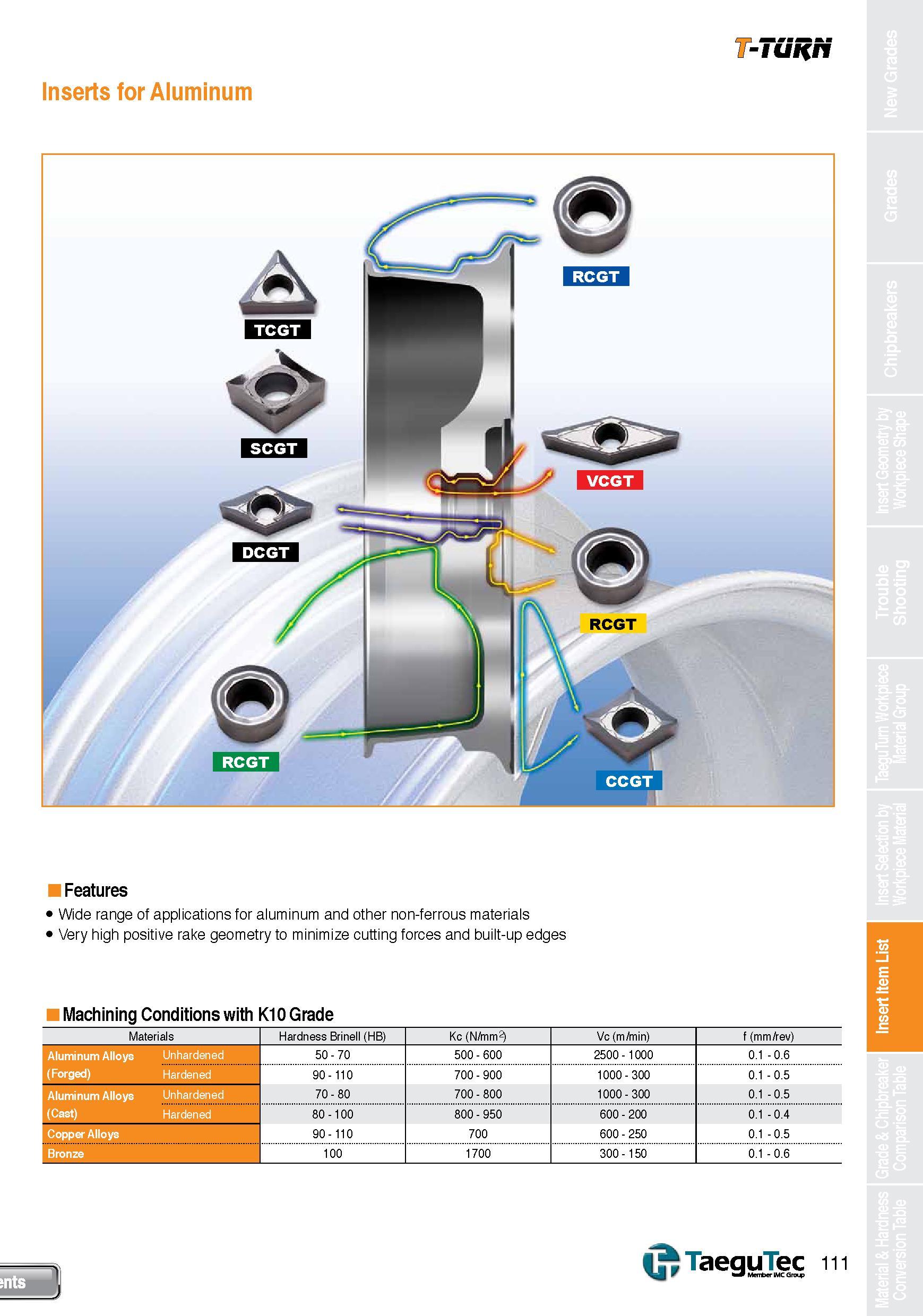

T-TURN Inserts for Aluminum Features Wide range of applications for aluminum and other non-ferrous materials Very high positive rake geometry to minimize cutting forces and built-up edges Machining Conditions with K10 Grade Materials Hardness Brinell (HB) Kc (N/mm2) Vc (m/min) f (mm/rev) Aluminum Alloys Unhardened 50-70 500 - 600 2500- 1000 0.1 -0.6 (Forged) Hardened 90-110 700 - 900 1000-300 0.1 -0.5 Aluminum Alloys Unhardened 70-80 700 - 800 1000-300 0.1 -0.5 (Cast) Hardened 80-100 800 - 950 600 - 200 0.1 -0.4 Copper Alloys 90-110 700 600 - 250 0.1 -0.5 Bronze 100 1700 300-150 0.1 -0.6 ints U" TaeguTec 111 W Mcntxr IMC Grot Insert Item List
