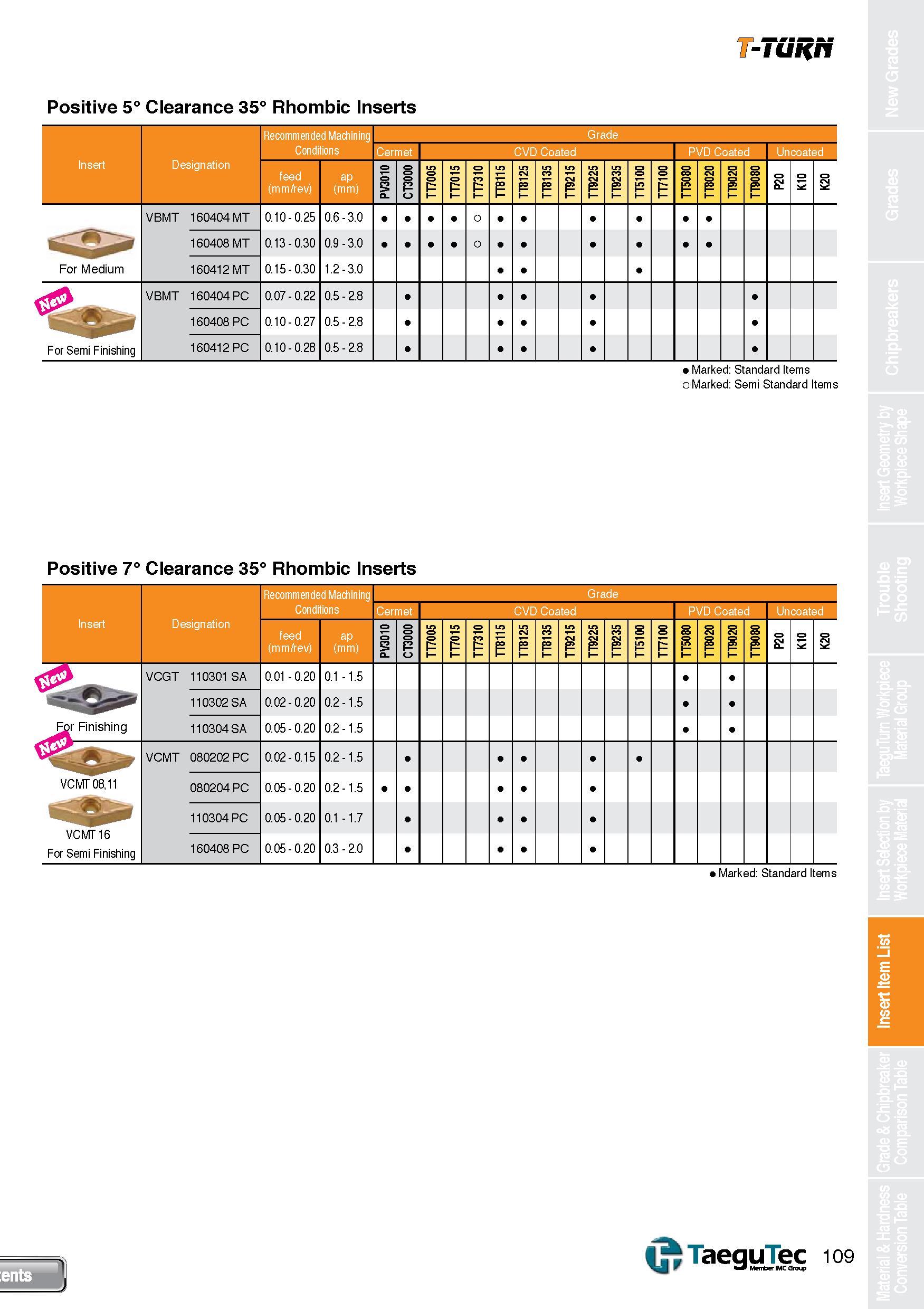

T-TURN Positive 5° Clearance 35° Rhombic Inserts Recommended Machining Grade Conditions Cermet CVD Coated PVD Coated Un coated Insert Designation feed (mm/rev) ap (mm) 1 i VBMT 160404 MT 0.10-0.25 0.6-3.0 0 160408 MT 0.13-0.30 0.9-3.0 0 For Medium 160412 MT 0.15-0.30 1.2-3.0 VBMT 160404 PC 0.07-0.22 0.5 - 2.8 For Semi Finishing 160408 PC 0.10-0.27 0.5 - 2.8 160412 PC 0.10-0.28 0.5 - 2.8 Marked: Standard Items o Marked: Semi Standard Items Positive 7° Clearance 35° Rhombic Inserts Recommended Machining Grade Conditions Cermet CVD Coated PVD Coated Un coated Insert Designation feed (mm/rev) ap (mm) 1 i P y VCGT 110301 SA 0.01-0.20 0.1-1.5 110302 SA 0.02-0.20 0.2-1.5 110304 SA 0.05-0.20 0.2-1.5 VCMT16 For Semi Finishing VCMT 080202 PC 0.02-0.15 0.2-1.5 080204 PC 0.05-0.20 0.2-1.5 110304 PC 0.05-0.20 0.1-1.7 160408 PC 0.05-0.20 0.3 - 2.0 Marked: Standard Items U" TaeguTec 109 W Mcntxr IMC Grot Insert Item List
