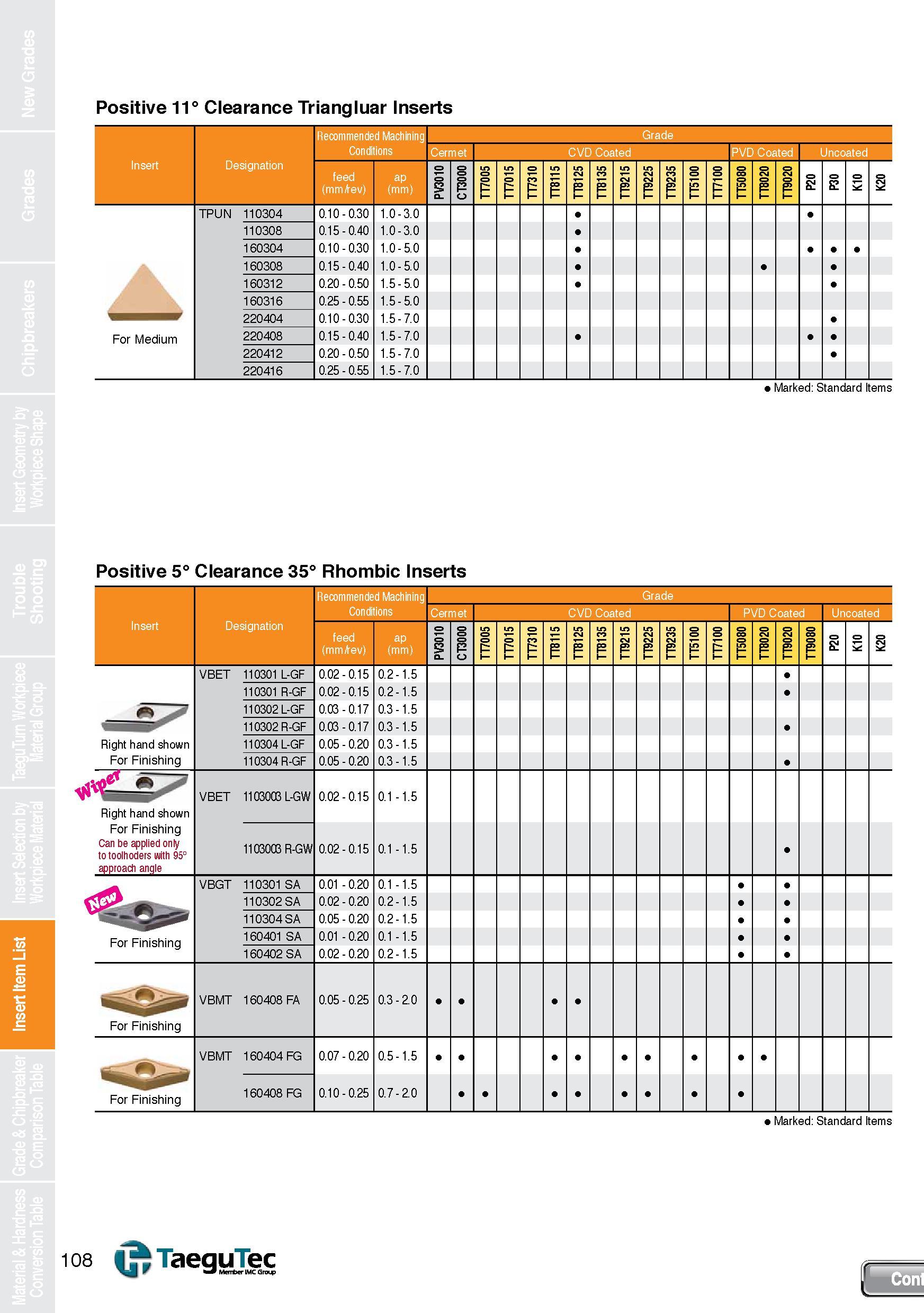

Insert Item List Positive 11° Clearance Triangluar Inserts Recommended Machining Grade Conditions Cermet CVD Coated PVD Coated Jncoated Insert Designation feed (mmAev) ap (mm) I e 2 i TPUN 110304 0.10 0.30 1.0 3.0 110308 0.15 0.40 1.0 3.0 160304 0.10 0.30 1.0 5.0 160308 0.15 0.40 1.0 5.0 160312 0.20 0.50 1.5 5.0 160316 0.25 0.55 1.5 5.0 220404 0.10 0.30 1.5 7.0 For Medium 220408 0.15 0.40 1.5 7.0 220412 0.20 0.50 1.5 7.0 220416 0.25 0.55 1.5 7.0 Marked: Standard Items Positive 5° Clearance 35° Rhombic Inserts Recommended Machining Grade Conditions Cermet CVD Coated PVD Coated Uncoated Insert Designation feed (mmAev) ap (mm) I 2 VBET 110301 L-GF 0.02-0.15 0.2-1.5 110301 R-GF 0.02-0.15 0.2-1.5 110302 L-GF 0.03-0.17 0.3-1.5 110302 R-GF 0.03-0.17 0.3-1.5 Right hand shown For Finishing 110304 L-GF 0.05 - 0.20 0.3-1.5 110304 R-GF 0.05 - 0.20 0.3-1.5 Right hand shown For Finishing Can be applied only to toolhoders with 95° approach anqie VBET 1103003 L-GW 0.02-0.15 0.1-1.5 1103003 R-GW 0.02-0.15 0.1-1.5 For Finishing VBGT 110301 SA 0.01 - 0.20 0.1-1.5 110302 SA 0.02 - 0.20 0.2-1.5 110304 SA 0.05 - 0.20 0.2-1.5 160401 SA 0.01 - 0.20 0.1-1.5 160402 SA 0.02 - 0.20 0.2-1.5 For Finishing VBMT 160408 FA 0.05 - 0.25 0.3-2.0 VBMT 160404 FG 0.07 - 0.20 0.5-1.5 For Finishing 160408 FG 0.10-0.25 0.7-2.0 108 fl TaeguTec V
