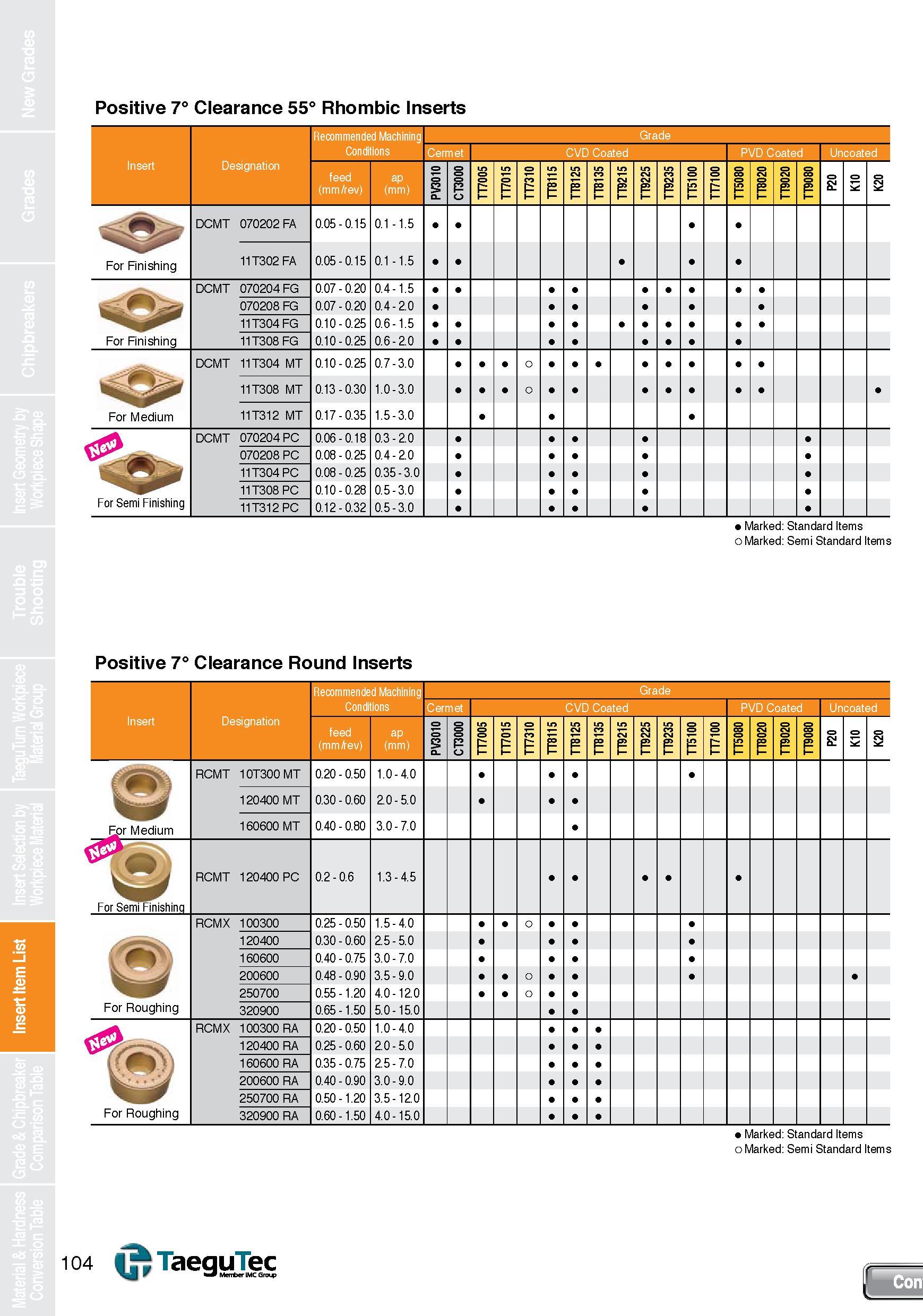

104 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.104

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 104 0104 ENG Lab2u

Insert Item List Positive 7° Clearance 55° Rhombic Inserts Recommended Machining Conditions Cermet Insert Designation feed (mm/rev) ap (mm) I P o p 2 rv For Finishing DCMT 070202 FA 0.05 0.15 0.1-1.5 11T302 FA 0.05 0.15 0.1-1.5 DCMT 070204 FG 0.07 0.20 0.4-1.5 070208 FG 0.07 0.20 0.4-2.0 11T304FG 0.10 0.25 0.6-1.5 For Finishing 11T308FG 0.10 0.25 0.6-2.0 DCMT 11T304 MT 0.10 0.25 0.7-3.0 o 11T308 MT 0.13 0.30 1.0-3.0 o For Medium 11T312 MT 0.17 0.35 1.5-3.0 DCMT 070204 PC 006" 0.18 0.3-2.0 070208 PC 0.08 0.25 0.4-2.0 11T304 PC 0.08 0.25 0.35-3.0 11T308 PC 0.10 0.28 0.5-3.0 For Semi Finishing 11T312 PC 0.12 0.32 0.5-3.0 Marked: Standard Items o Marked: Semi Standard Items Positive 7° Clearance Round Inserts Recommended Machining Conditions Cermet PVD Coated Uncoated Insert Designation feed (mmAev) ap (mm) 1 P o i 1 p 2 i £pr Medium RCMT 10T300MT 0.20 - 0.50 1.0-4.0 120400 MT 0.30 - 0.60 2.0-5.0 160600 MT 0.40 - 0.80 3.0-7.0 For Semi Finishina RCMT 120400 PC 0.2 - 0.6 1.3-4.5 RCMX 100300 0.25 - 0.50 1.5-4.0 o For Roughing 120400 0.30 - 0.60 2.5-5.0 160600 0.40 - 0.75 3.0-7.0 200600 0.48 - 0.90 3.5-9.0 o 250700 0.55-1.20 4.0-12.0 o 320900 0.65-1.50 5.0-15.0 IKSI RCMX 100300 RA 0.20 - 0.50 1.0-4.0 120400 RA 0.25 - 0.60 2.0-5.0 160600 RA 0.35 - 0.75 2.5-7.0 200600 RA 0.40 - 0.90 3.0-9.0 250700 RA 0.50-1.20 3.5-12.0 For Roughing 320900 RA 0.60-1.50 4.0-15.0 Marked: Standard Items o Marked: Semi Standard Items 104 U, TaeguTec W fc Men rlMCGron> B
