103 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.103

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 103 0103 ENG Lab2u

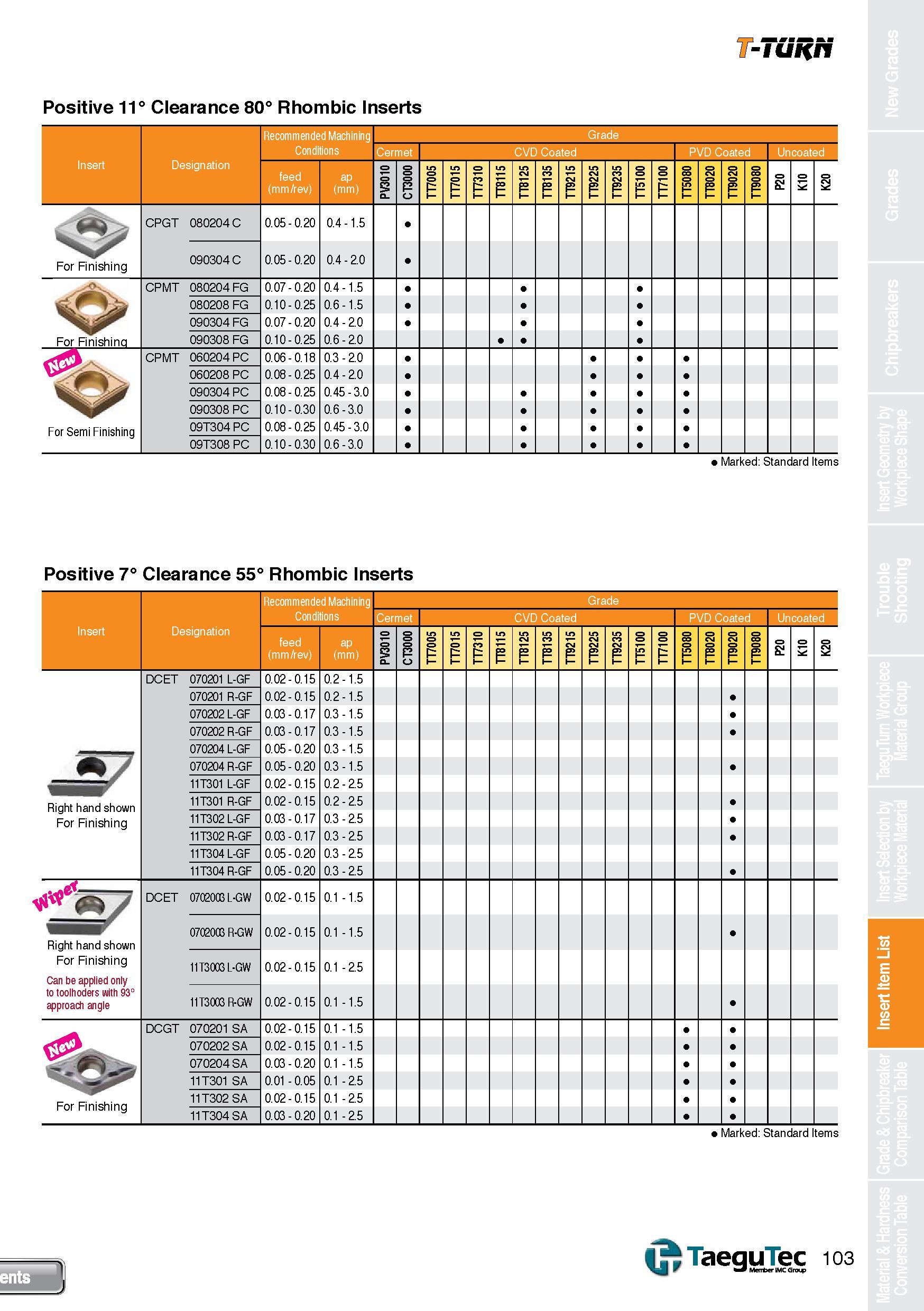

T-TURN Positive 11° Clearance 80° Rhombic Inserts Marked: Standard Items Positive 7° Clearance 55° Rhombic Inserts Recommended Machining Grade Conditions Cermet CVD Coated PVD Coated Un coated Insert Designation feed (mm/rev) ap (mm) 1 1 i 2 DCET 070201 L-GF 0.02-0.15 0.2-1.5 070201 R-GF 0.02-0.15 0.2-1.5 070202 L-GF 0.03-0.17 0.3-1.5 070202 R-GF 0.03-0.17 0.3-1.5 070204 L-GF 0.05-0.20 0.3-1.5 7 070204 R-GF 0.05-0.20 0.3-1.5 11T301 L-GF 0.02-0.15 0.2-2.5 Right hand shown For Finishing 11T301 R-GF 0.02-0.15 0.2-2.5 11T302 L-GF 0.03-0.17 0.3 - 2.5 11T302 R-GF 0.03-0.17 0.3 - 2.5 11T304 L-GF 0.05-0.20 0.3 - 2.5 11T304 R-GF 0.05-0.20 0.3 - 2.5 ..eX DCET 070200S L-GW 0.02-0.15 0.1-1.5 Right hand shown For Finishing Can be applied only to toolhoders with 93° approach angle 070200S R-GW 0.02-0.15 0.1-1.5 11T300G L-GW 0.02-0.15 0.1 -2.5 11T3003 R-GW 0.02-0.15 0.1-1.5 For Finishing DCGT 070201 SA 0.02-0.15 0.1-1.5 070202 SA 0.02-0.15 0.1-1.5 070204 SA 0.03-0.20 0.1-1.5 11T301 SA 0.01-0.05 0.1 -2.5 11T302SA 0.02-0.15 0.1 -2.5 11T304SA 0.03-0.20 0.1 -2.5 U" TaeguTec 103 W Mcntxr IMC Grot Insert Item List
