102 Каталог TAEGUTEC 2013 Сменные режущие токарные пластины для металлообработки Стр.102

Каталог TAEGUTEC 2013 Indexable turning inserts Стр. 102 0102 ENG Lab2u

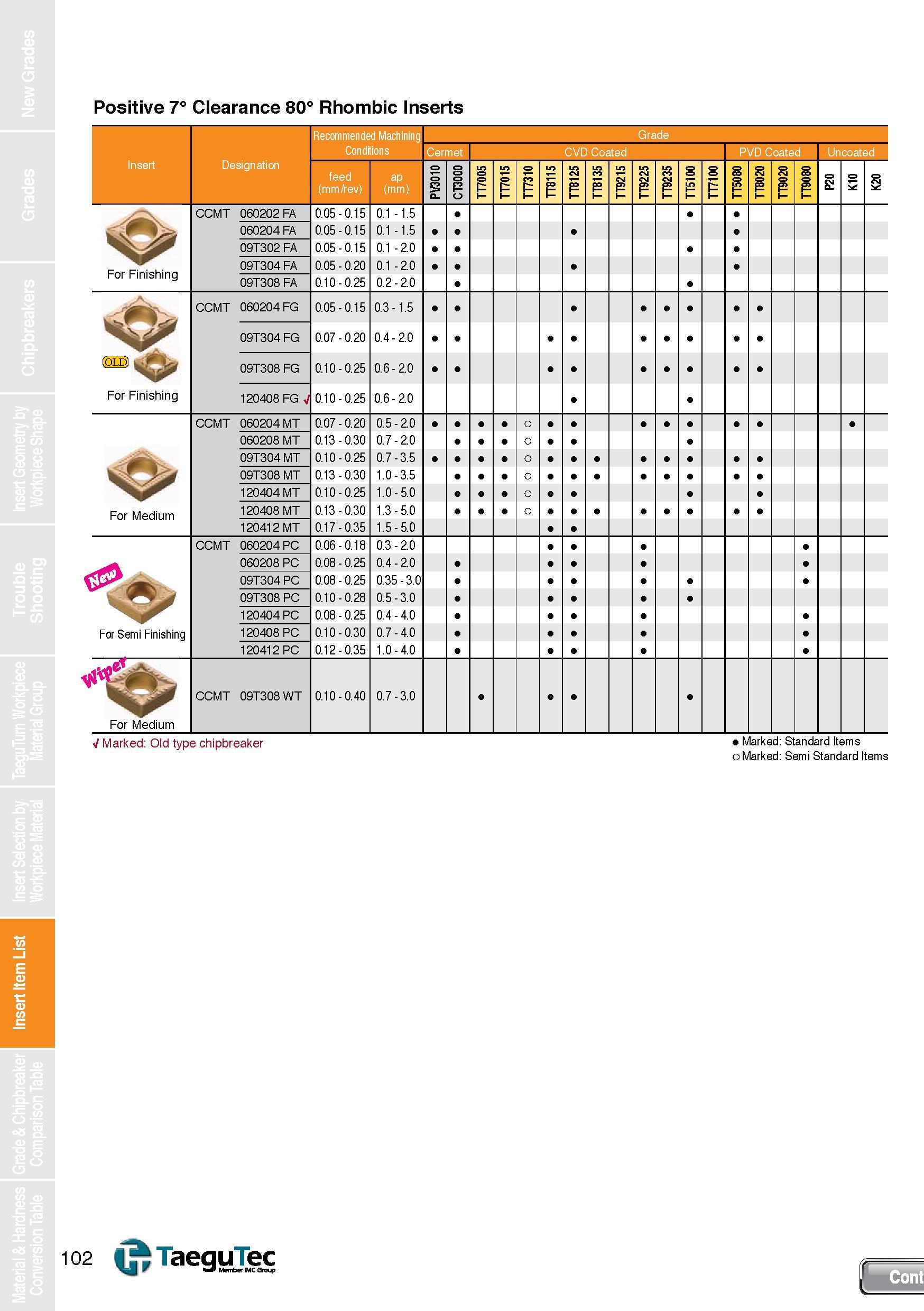

Insert Item List Positive 7° Clearance 80° Rhombic Inserts Recommended Machining Conditions B Cermetl Insert Designation feed (mm/rev) ap (mm) I P o 2 & For Finishing CCMT 060202 FA 0.05-0.15 0.1-1.5 060204 FA 0.05-0.15 0.1-1.5 09T302 FA 0.05-0.15 0.1 -2.0 09T304 FA 0.05-0.20 0.1 -2.0 09T308 FA 0.10-0.25 0.2-2.0 CCMT 060204 FG 0.05-0.15 0.3-1.5 09T304 FG 0.07-0.20 0.4-2.0 (OLD) For Finishing 09T308 FG 0.10-0.25 0.6-2.0 120408 FG V 0.10-0.25 0.6-2.0 For Medium CCMT 060204 MT 0.07-0.20 0.5-2.0 o 060208 MT 0.13-0.30 0.7-2.0 o 09T304 MT 0.10-0.25 0.7-3.5 o 09T308 MT 0.13-0.30 1.0-3.5 o 120404 MT 0.10-0.25 1.0-5.0 o 120408 MT 0.13-0.30 1.3-5.0 o 120412 MT 0.17-0.35 1.5-5.0 For Semi Finishing CCMT 060204 PC 0.06-0.18 0.3 - 2.0 060208 PC 0.08-0.25 0.4-2.0 09T304 PC 0.08-0.25 0.35-3.0 09T308 PC 0.10-0.28 0.5-3.0 120404 PC 0.08-0.25 0.4-4.0 120408 PC 0.10-0.30 0.7-4.0 120412 PC 0.12-0.35 1.0-4.0 For Medium CCMT 09T308WT 0.10-0.40 0.7-3.0 V Marked: Old type chipbreaker Marked: Standard Items o Marked: Semi Standard Items 102 U, TaeguTec W fc Men rlMCGron>
