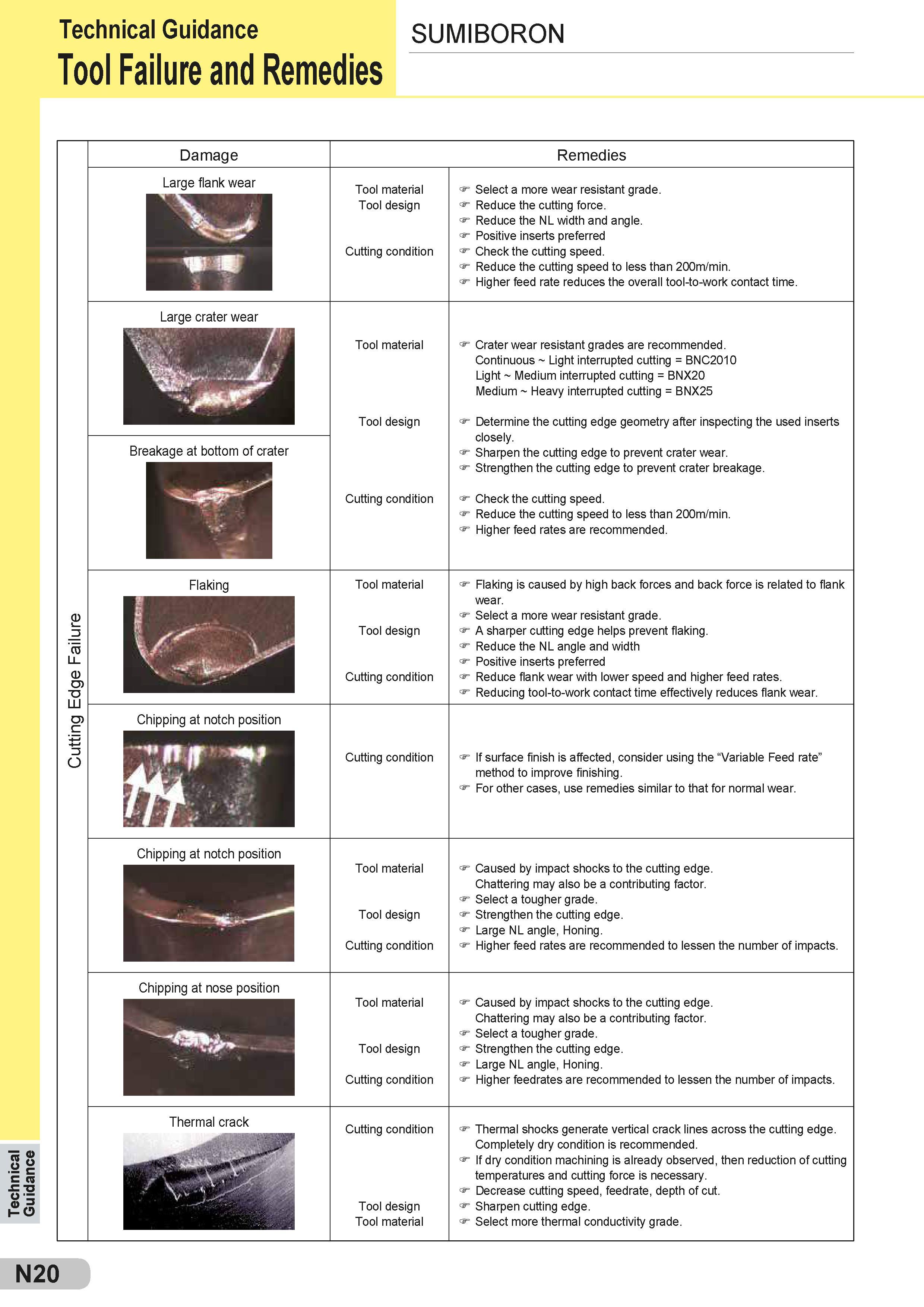

Technical Guidance Technical Guidance Tool Failure and Remedies SUMIBORON Damage Remedies Large flank wear Tool material Tool design Cutting condition f Select a more wear resistant grade. f Reduce the cutting force. f Reduce the NL width and angle. f Positive inserts preferred f Check the cutting speed. f Reduce the cutting speed to less than 200m/min. f Higher feed rate reduces the overall tool-to-work contact time. Large crater wear Breakage at bottom of crater Tool material Tool design Cutting condition f Crater wear resistant grades are recommended. Continuous Light interrupted cutting = BNC2010 Light Medium interrupted cutting = BNX20 Medium Heavy interrupted cutting = BNX25 f Determine the cutting edge geometry after inspecting the used inserts closely. f Sharpen the cutting edge to prevent crater wear. f Strengthen the cutting edge to prevent crater breakage. f Check the cutting speed. f Reduce the cutting speed to less than 200m/min. f Higher feed rates are recommended. Flaking CD ra LL 0 OT T3 LU cn c '-4-< o Tool material Tool design Cutting condition f Flaking is caused by high back forces and back force is related to flank wear. f Select a more wear resistant grade. f A sharper cutting edge helps prevent flaking. f Reduce the NL angle and width f Positive inserts preferred f Reduce flank wear with lower speed and higher feed rates. f Reducing tool-to-work contact time effectively reduces flank wear. Chipping at notch position Cutting condition f If surface finish is affected, consider using the “Variable Feed rate” method to improve finishing. f For other cases, use remedies similar to that for normal wear. Chipping at notch position Tool material Tool design Cutting condition f Caused by impact shocks to the cutting edge. Chattering may also be a contributing factor. f Select a tougher grade. f Strengthen the cutting edge. f Large NL angle, Honing. f Higher feed rates are recommended to lessen the number of impacts. Chipping at nose position Tool material Tool design Cutting condition f Caused by impact shocks to the cutting edge. Chattering may also be a contributing factor. f Select a tougher grade. f Strengthen the cutting edge. f Large NL angle, Honing. f Higher feedrates are recommended to lessen the number of impacts. Thermal crack Cutting condition Tool design Tool material f Thermal shocks generate vertical crack lines across the cutting edge. Completely dry condition is recommended. f f dry condition machining is already observed, then reduction of cutting temperatures and cutting force is necessary. f Decrease cutting speed, feedrate, depth of cut. f Sharpen cutting edge. f Select more thermal conductivity grade. N20
