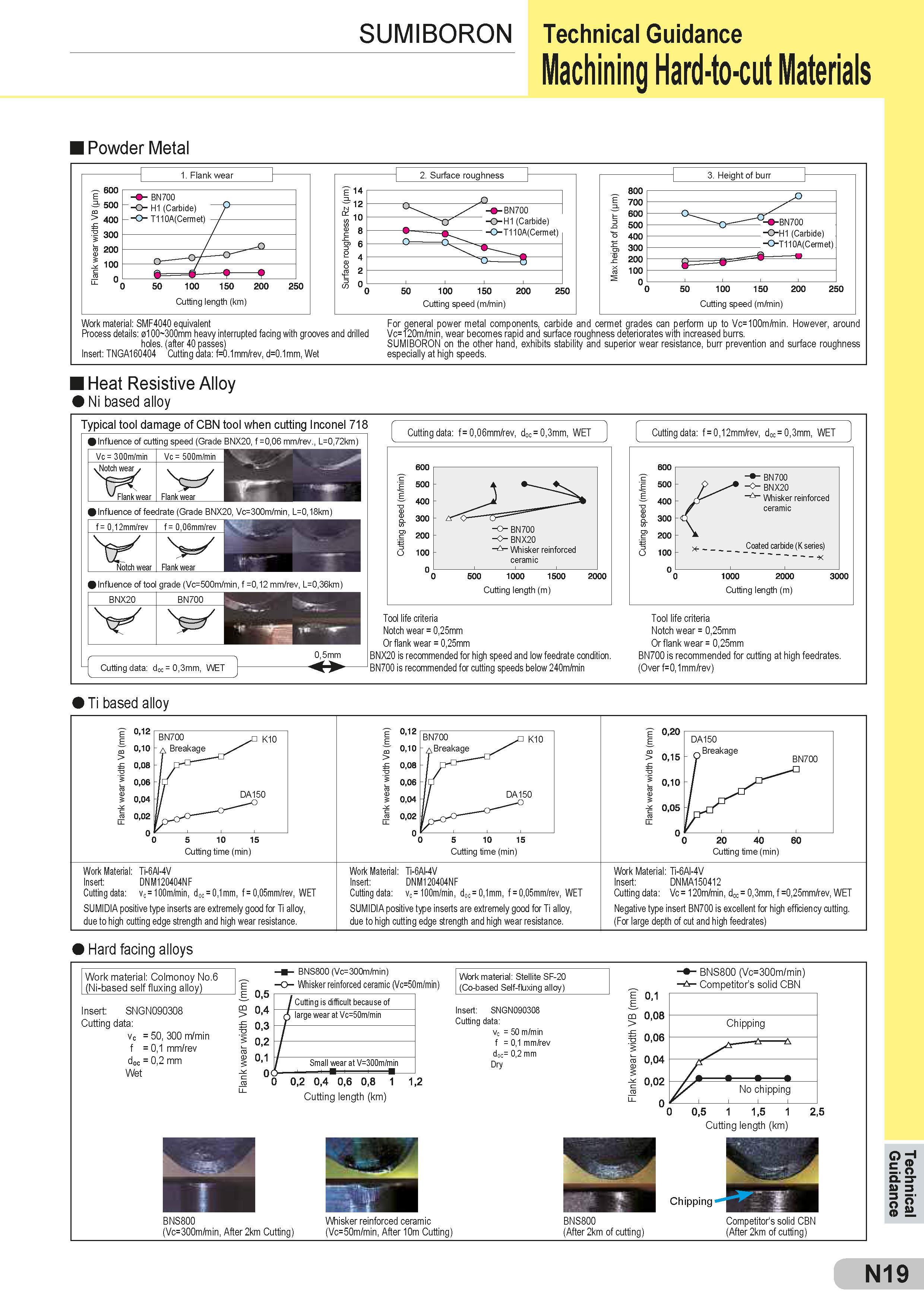

SUMIBORON Technical Guidance Machining Hard-to-cut Materials I Powder Metal BOO 3 500 > 400 I 300 S 200 1 100 c E 0 -O- BN700 -O- H1 (Carbide) -0-T110A(Cermet) -4- / 4 f- 50 100 150 200 Cutting length (km) Work material: SMF4040 equiValent Process details: 0l00 300mm heavy interrupted facing with grooves and drilled holes. (after 40 passes) Insert: TNGA160404 Cutting data: f=0.1mm/reV, d=0.1mm, Wet 100 150 Cutting speed (m/min) For general power metal components, carbide and cermet grades can perform up to Vc=100m/min. HoweVer, around Vc=f20m/min, wear becomes rapid and surface roughness deteriorates with increased burrs. SUMIBORON on the other hand, exhibits stability and superior wear resistance, burr preVention and surface roughness especially at high speeds. Heat ResistiVe Alloy Ni based alloy Typical tool damage of CBN tool when cutting Inconel 718 Influence of cutting speed (Grade BNX20, f =0,06 mm/rev., L=0,72km) Vc = 300m/min Vc = 500m/min v Notch weary v Flank wear Flank wear Influence of feedrate (Grade BNX20, Vc=300m/min, L=0,18km) f = 0,12mm/reV f = 0,06mm/reV Notch wear w Flank wear Influence of tool grade (Vc=500m/min, f =0,12 mm/rev, L=0,36km) BNX20 BN700 V' W Cutting data: doc = 0,3mm, WET Tool life criteria Notch wear = 0,25mm Or flank wear = 0,25mm BNX20 is recommended for high speed and low feedrate condition. BN700 is recommended for cutting speeds below 240m/min Tool life criteria Notch wear = 0,25mm Or flank wear = 0,25mm BN700 is recommended for cutting at high feedrates. (OVer f=0,1mm/reV) Ti based alloy Cutting time (min) 5 10 15 Cutting time (min) Cutting time (min) Work Material: Ti-6Al-4V Insert: DNM120404NF Cutting data: Vc = 100m/min, doc = 0,1mm, f = 0,05mm/reV, WET SUMIDIA positiVe type inserts are extremely good for Ti alloy, due to high cutting edge strength and high wear resistance. Wo Material: Ti-6Al-4V Insert: DNM120404NF Cutting data: Vc = 100m/min, doc = 0,1mm, f = 0,05mm/reV, WET SUMIDIA positiVe type inserts are extremely good for Ti alloy, due to high cutting edge strength and high wear resistance. Work Material: Ti-6Al-4V Insert: DNMA150412 Cutting data: Vc = 120m/min, doc = 0,3mm, f =0,25mm/reV, WET Negative type insert BN700 is excellent for high efficiency cutting. (For large depth of cut and high feedrates) Hard facing alloys Work material: Colmonoy No.6 (Ni-based self fluxing alloy) Insert: SNGN090308 Cutting data: Vc = 50, 300 m/min f = 0,1 mm/reV doc = 0,2 mm Wet 0,5 0,4 0,3 0,2 0,1 0 BNS800 (Vc=300m/min) Whisker reinforced ceramic (Vc=50m/min) / Cutting is difficult because of A large wear at Vc=50m/min I / f Small wear at V=300m/min i i i Work material: Stellite SF-20 (Co-based Self-fluxing alloy) Insert: SNGN090308 Cutting data: Vc = 50 m/min f = 0,1 mm/reV doc= 0,2 mm Dry BNS800 (Vc=300m/min) Competitor's solid CBN 0,2 0,4 0,6 0,8 1 Cutting length (km) 1,2 0 0,5 1 1,5 1 2,5 Cutting length (km) Chipping BNS800 (Vc=300m/min, After 2km Cutting) Whisker reinforced ceramic (Vc=50m/min, After 10m Cutting) BNS800 (After 2km of cutting) Competitor's solid CBN (After 2km of cutting) 1. Flank wear K10 N19 Technical Guidance
