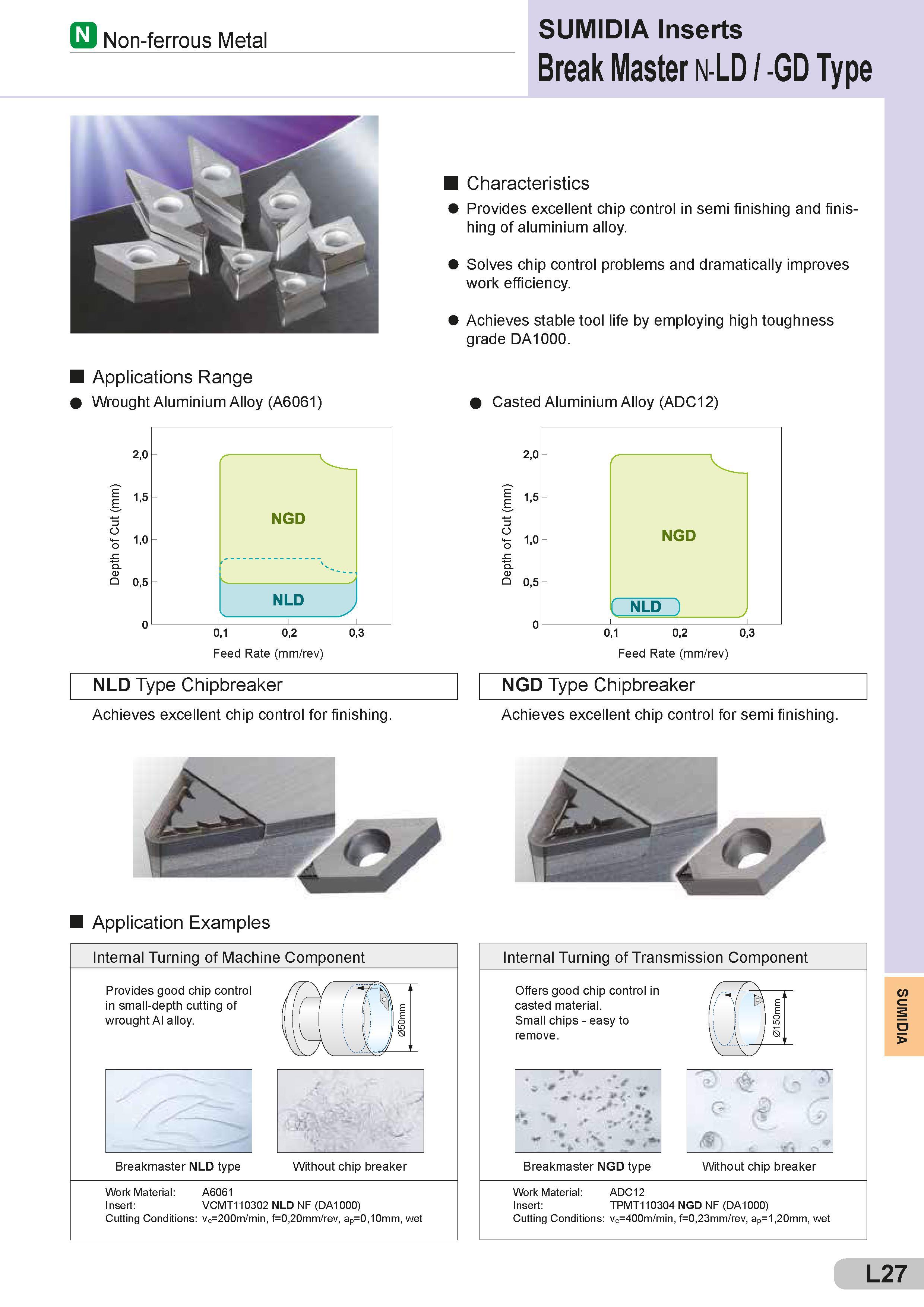

s Non-ferrous Metal SUMIDIA Inserts Break Master n-LD / -GD Type Applications Range Wrought Aluminium Alloy (A6061) E. "d O Feed Rate (mm/rev) NLD Type Chipbreaker I Characteristics Provides excellent chip control in semi finishing and finishing of aluminium alloy. Solves chip control problems and dramatically improves work efficiency. Achieves stable tool life by employing high toughness grade DA1000. Casted Aluminium Alloy (ADC12) NGD Type Chipbreaker Achieves excellent chip control for finishing. Achieves excellent chip control for semi finishing. Application Examples Work Material: A6061 Insert: VCMT110302 NLD NF (DA1000) Cutting Conditions: vc=200m/min, f=0,20mm/rev, ap=0,10mm, wet Internal Turning of Transmission Component Offers good chip control in casted material. Small chips - easy to remove. Breakmaster NGD type Without chip breaker Work Material: ADC12 Insert: TPMT110304 NGD NF (DA1000) Cutting Conditions: vc=400m/min, f=0,23mm/rev, ap=1,20mm, wet L27 SUMIDIA
