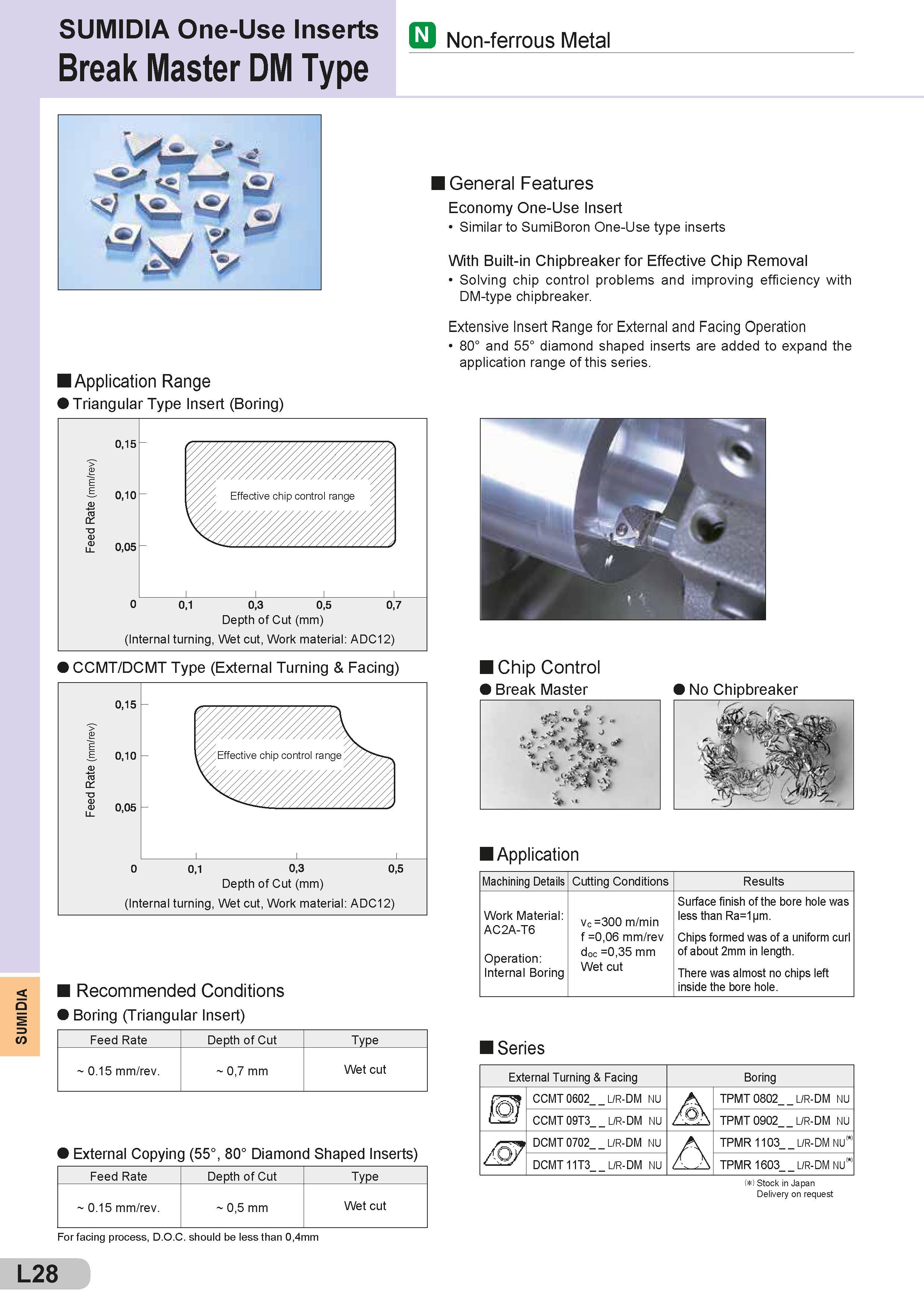

SUMIDIA SUM D A °ne-Use nserts (Nj Non-ferrous Metal Break Master DM Type Application Range Triangular Type Insert (Boring) 0,15 v) re E 0,10 te at Effective chip control range d e £ 0,05 - l l 0 0,1 0,3 0,5 0,7 Depth of Cut (mm) (Internal turning, Wet cut, Work material: ADC12) CCMT/DCMT Type (External Turning & Facing) 0,15 v) e \ 1 0,10 /// Effective chip control range te at V d e £ 0,05 0 0,1 0,3 0,5 Depth of Cut (mm) (Internal turning, Wet cut, Work material: ADC12) I Recommended Conditions Boring (Triangular Insert) Feed Rate Depth of Cut Type 0.15 mm/rev. 0,7 mm Wet cut External Copying (55°, 80° Diamond Shaped Inserts) Feed Rate Depth of Cut Type 0.15 mm/rev. 0,5 mm Wet cut For facing process, D.O.C. should be less than 0,4mm I General Features Economy One-Use Insert Similar to SumiBoron One-Use type inserts With Built-in Chipbreaker for Effective Chip Removal Solving chip control problems and improving efficiency with DM-type chipbreaker. Extensive Insert Range for External and Facing Operation 80° and 55° diamond shaped inserts are added to expand the application range of this series. I Chip Control Break Master No Chipbreaker Application Machining Details Cutting Conditions Results Work Material: AC2A-T6 Operation: Internal Boring vc =300 m/min f =0,06 mm/rev doc =0,35 mm Wet cut Surface finish of the bore hole was less than Ra=1Mm. Chips formed was of a uniform curl of about 2mm in length. There was almost no chips left inside the bore hole. Series External Turning & Facing Boring CCMT 0602 L/R-DM NU TPMT 0802 L/R-DM NU CCMT 09T3 L/R-DM NU TPMT 0902 L/R-DM NU DCMT 0702 L/R-DM NU A TPMR 1103 L/R-DM NU( DCMT 11T3 L/R-DM NU TPMR 1603 L/R-DM NUW ( ) Stock in Japan Delivery on request L28
