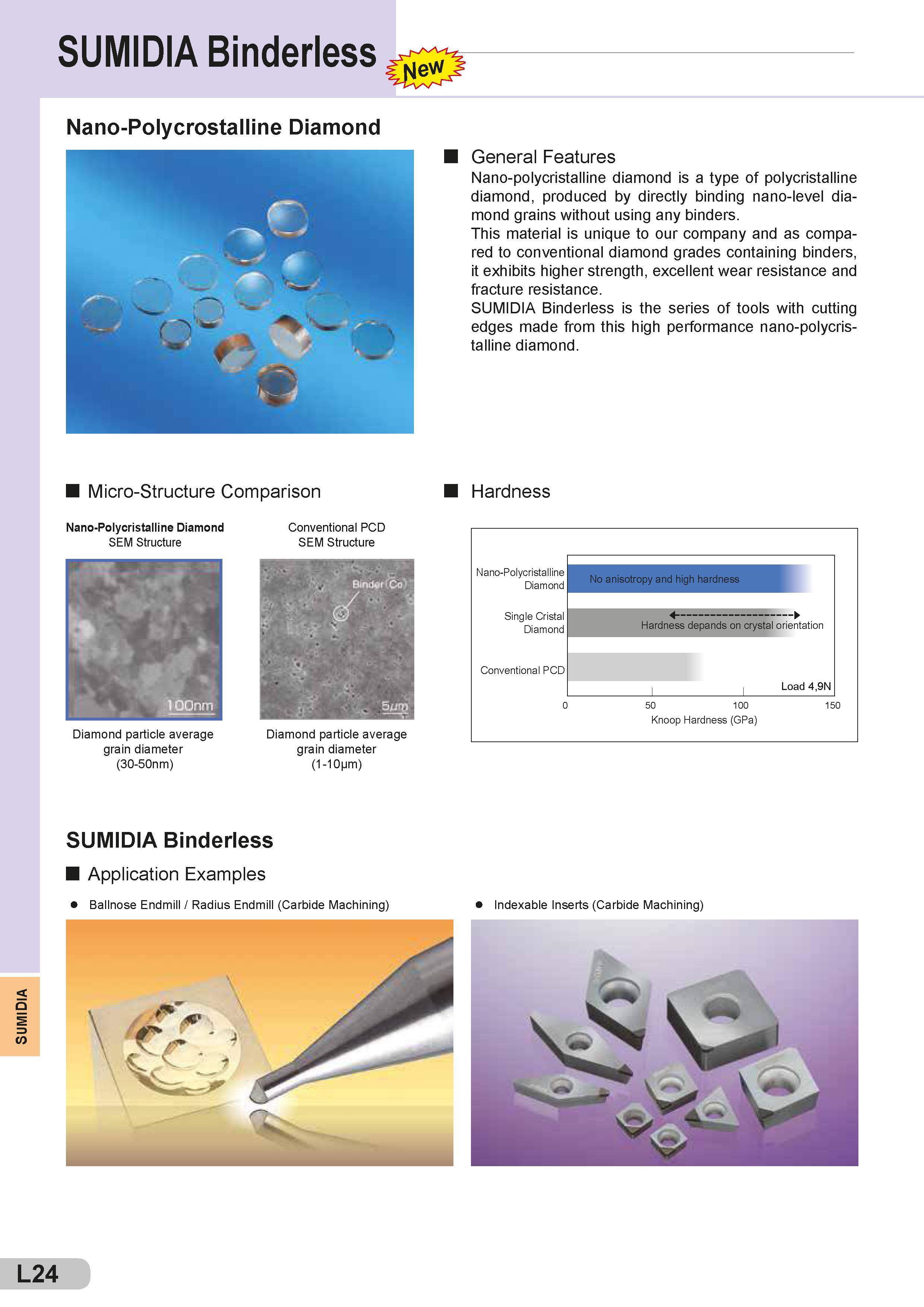

SUMIDIA SUMIDIA Binderless NeW Nano-Polycrostalline Diamond I General Features Nano-polycristalline diamond is a type of polycristalline diamond, produced by directly binding nano-level diamond grains without using any binders. This material is unique to our company and as compared to conventional diamond grades containing binders, it exhibits higher strength, excellent wear resistance and fracture resistance. SUMIDIA Binderless is the series of tools with cutting edges made from this high performance nano-polycris-talline diamond. if V 4 Micro-Structure Comparison Hardness Nano-Polycristalline Diamond SEM Structure Diamond particle average grain diameter (30-50nm) Conventional PCD SEM Structure Diamond particle average grain diameter (1-10 jm) Knoop Hardness (GPa) SUMIDIA Binderless I Application Examples Ballnose Endmill / Radius Endmill (Carbide Machining) Indexable Inserts (Carbide Machining) L24
