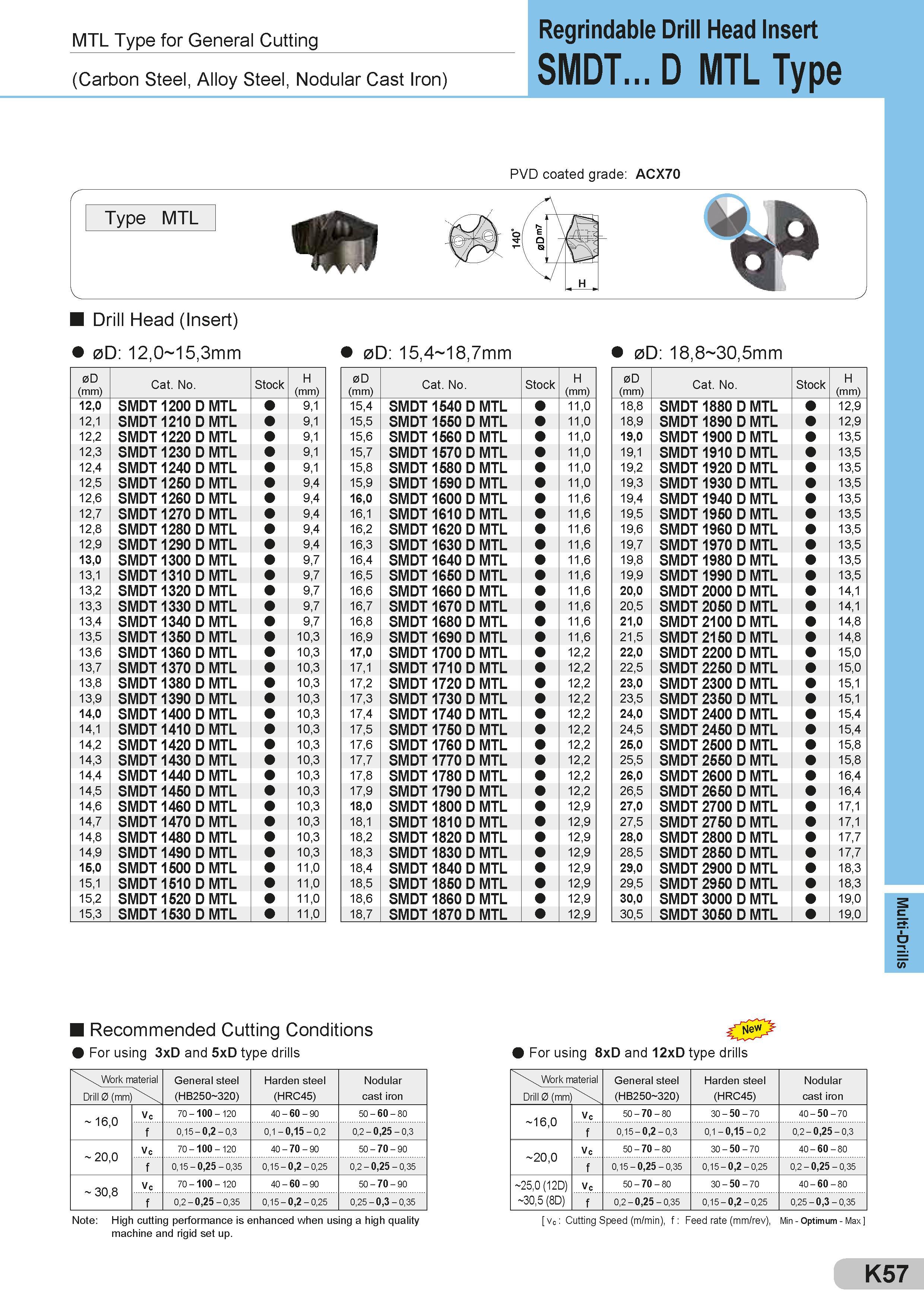

MTL Type for General Cutting (Carbon Steel, Alloy Steel, Nodular Cast Iron) Regrindable Drill Head Insert SMDT... D MTL Type PVD coated grade: ACX70 Type MTL Drill Head (Insert) 0D: 12,0 15,3mm 0D: 15,4 18,7mm 0D (mm) Cat. No. Stock H (mm) 12,0 SMDT 1200 D MTL 9,1 12,1 12,2 SMDT 1210 D MTL SMDT 1220 D MTL 9.1 9.1 12.3 12.4 SMDT 1230 D MTL SMDT 1240 D MTL 9.1 9.1 12.5 12.6 SMDT 1250 D MTL SMDT 1260 D MTL 9.4 9.4 12.7 12.8 SMDT 1270 D MTL SMDT 1280 D MTL 9.4 9.4 12,9 13,0 SMDT 1290 D MTL SMDT 1300 D MTL 9,4 9,7 13.1 13.2 SMDT 1310 D MTL SMDT 1320 D MTL 9.7 9.7 13.3 13.4 SMDT 1330 D MTL SMDT 1340 D MTL 9.7 9.7 13.5 13.6 SMDT 1350 D MTL SMDT 1360 D MTL 10.3 10.3 13.7 13.8 SMDT 1370 D MTL SMDT 1380 D MTL 10.3 10.3 13,9 14,0 SMDT 1390 D MTL SMDT 1400 D MTL 10.3 10.3 14.1 14.2 SMDT 1410 D MTL SMDT 1420 D MTL 10.3 10.3 14.3 14.4 SMDT 1430 D MTL SMDT 1440 D MTL 10.3 10.3 14.5 14.6 SMDT 1450 D MTL SMDT 1460 D MTL 10.3 10.3 14.7 14.8 SMDT 1470 D MTL SMDT 1480 D MTL 10.3 10.3 14,9 15,0 SMDT 1490 D MTL SMDT 1500 D MTL 10,3 11,0 15.1 15.2 SMDT 1510 D MTL SMDT 1520 D MTL 11,0 11,0 15,3 SMDT 1530 D MTL 11,0 0D (mm) Cat. No. Stock H (mm) 15,4 SMDT 1540 D MTL 11,0 15.5 15.6 SMDT 1550 D MTL SMDT 1560 D MTL 11,0 11,0 15.7 15.8 SMDT 1570 D MTL SMDT 1580 D MTL 11,0 11,0 15,9 16,0 SMDT 1590 D MTL SMDT 1600 D MTL 11,0 11,6 16,1 16,2 SMDT 1610 D MTL SMDT 1620 D MTL 11,6 11,6 16.3 16.4 SMDT 1630 D MTL SMDT 1640 D MTL 11,6 11,6 16.5 16.6 SMDT 1650 D MTL SMDT 1660 D MTL 11,6 11,6 16.7 16.8 SMDT 1670 D MTL SMDT 1680 D MTL 11,6 11,6 16,9 17,0 SMDT 1690 D MTL SMDT 1700 D MTL 11,6 12,2 17.1 17.2 SMDT 1710 D MTL SMDT 1720 D MTL 12,2 12,2 17.3 17.4 SMDT 1730 D MTL SMDT 1740 D MTL 12,2 12,2 17.5 17.6 SMDT 1750 D MTL SMDT 1760 D MTL 12,2 12,2 17.7 17.8 SMDT 1770 D MTL SMDT 1780 D MTL 12,2 12,2 17,9 18,0 SMDT 1790 D MTL SMDT 1800 D MTL 12,2 12,9 18,1 18,2 SMDT 1810 D MTL SMDT 1820 D MTL 12.9 12.9 18.3 18.4 SMDT 1830 D MTL SMDT 1840 D MTL 12.9 12.9 18.5 18.6 SMDT 1850 D MTL SMDT 1860 D MTL 12.9 12.9 18,7 SMDT 1870 D MTL 12,9 0D: 18,8 30,5mm m s ) o Cat. No. Stock H (mm) 18,8 SMDT 1880 D MTL 12,9 18,9 19,0 SMDT 1890 D MTL SMDT 1900 D MTL 12,9 13,5 19.1 19.2 SMDT 1910 D MTL SMDT 1920 D MTL 13.5 13.5 19.3 19.4 SMDT 1930 D MTL SMDT 1940 D MTL 13.5 13.5 19.5 19.6 SMDT 1950 D MTL SMDT 1960 D MTL 13.5 13.5 19.7 19.8 SMDT 1970 D MTL SMDT 1980 D MTL 13.5 13.5 19,9 20,0 SMDT 1990 D MTL SMDT 2000 D MTL 13,5 14,1 20,5 21,0 SMDT 2050 D MTL SMDT 2100 D MTL 14,1 14,8 21,5 22,0 SMDT 2150 D MTL SMDT 2200 D MTL 14,8 15,0 22,5 23,0 SMDT 2250 D MTL SMDT 2300 D MTL 15.0 15.1 23,5 24,0 SMDT 2350 D MTL SMDT 2400 D MTL 15,1 15,4 24,5 25,0 SMDT 2450 D MTL SMDT 2500 D MTL 15,4 15,8 25,5 26,0 SMDT 2550 D MTL SMDT 2600 D MTL 15,8 16,4 26,5 27,0 SMDT 2650 D MTL SMDT 2700 D MTL 16,4 17,1 27,5 28,0 SMDT 2750 D MTL SMDT 2800 D MTL 17,1 17,7 28,5 29,0 SMDT 2850 D MTL SMDT 2900 D MTL 17,7 18,3 29,5 30,0 SMDT 2950 D MTL SMDT 3000 D MTL 18,3 19,0 30,5 SMDT 3050 D MTL 19,0 Recommended Cutting Conditions For using 3xD and 5xD type drills V'''\Work material Drill 0 (mm)\ General steel (HB250 320) Harden steel (HRC45) Nodular cast iron 16,0 Vc 70 - 100 - 120 40 - 60 - 90 50 - 60 - 80 f 0,15 - 0,2 - 0,3 0,1 - 0,15 - 0,2 0,2 - 0,25 - 0,3 20,0 Vc 70 - 100 - 120 40 - 70 - 90 50 - 70 - 90 f 0,15 - 0,25 - 0,35 0,15 - 0,2 - 0,25 0,2 - 0,25 - 0,35 30,8 Vc 70 - 100 - 120 40 - 60 - 90 50 - 70 - 90 f 0,2 - 0,25 - 0,35 0,15 - 0,2 - 0,25 0,25 - 0,3 - 0,35 Note: High cutting performance is enhanced when using a high quality machine and rigid set up. For using 8xD and 12xD type drills V'''\ Work material General steel Harden steel Nodular Drill 0 (mm)\ (HB250 320) (HRC45) cast iron 16,0 Vc 50 - 70 - 80 30 - 50 - 70 40 - 50 - 70 f 0,15 - 0,2 - 0,3 0,1 - 0,15 - 0,2 0,2 - 0,25 - 0,3 20,0 Vc 50 - 70 - 80 30 - 50 - 70 40 - 60 - 80 f 0,15 - 0,25 - 0,35 0,15 - 0,2 - 0,25 0,2 - 0,25 - 0,35 25,0 (12D) Vc 50 - 70 - 80 30 - 50 - 70 40 - 60 - 80 30,5 (8D) f 0,2 - 0,25 - 0,35 0,15 - 0,2 - 0,25 0,25 - 0,3 - 0,35 Vc : Cutting Speed (m/min), f : Feed rate (mm/rev), Min - Optimum - Max K57 Multi-Drills
