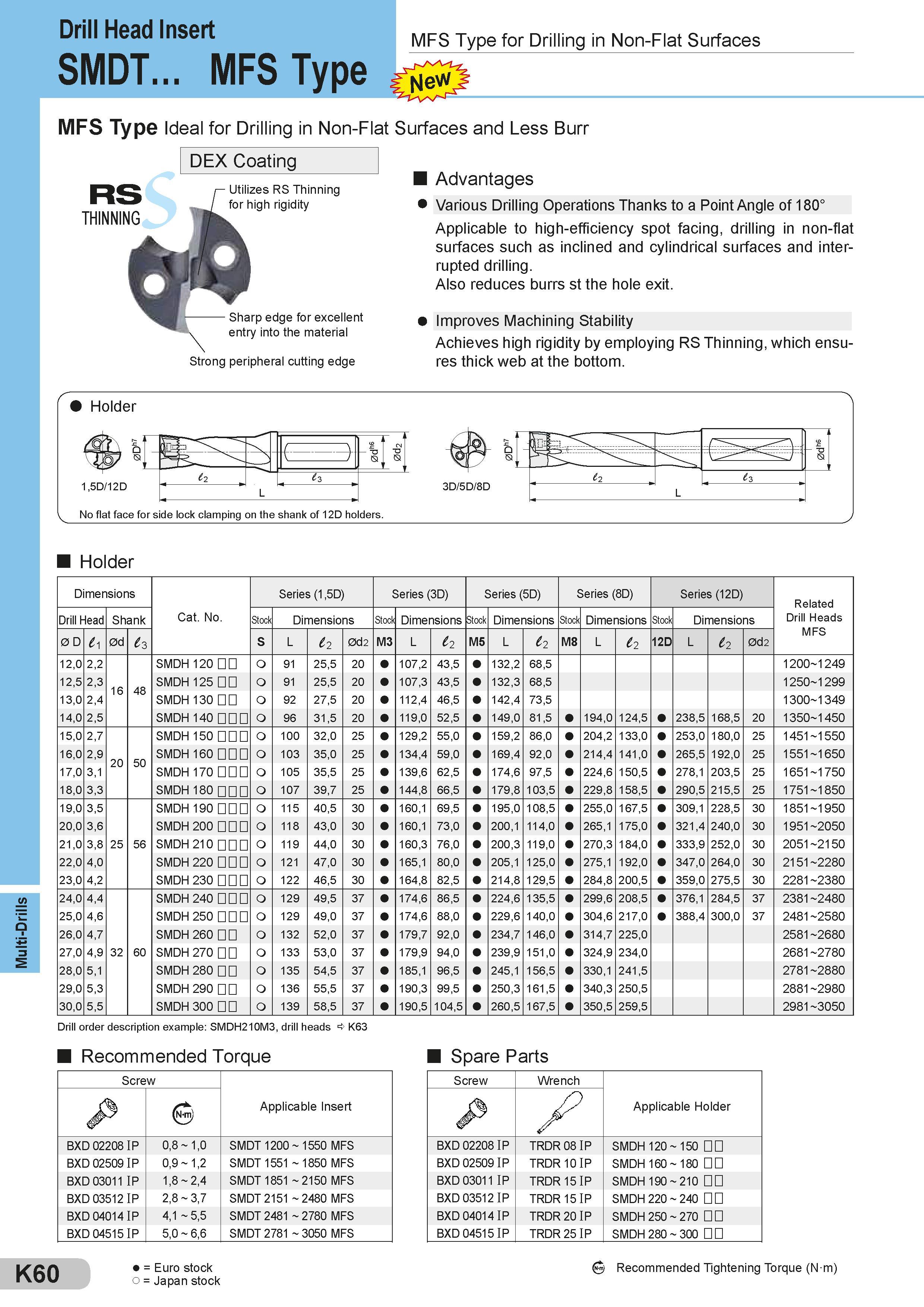

Multi-Drills MFS Type for Drilling in Non-Flat Surfaces Drill Head Insert SMDT. MFS Type MFS Type Ideal for Drilling in Non-Flat Surfaces and Less Burr RS THINNING DEX Coating Utilizes RS Thinning Sharp edge for excellent entry into the material Strong peripheral cutting edge Advantages Various Drilling Operations Thanks to a Point Angle of 180° Applicable to high-efficiency spot facing, drilling in non-flat surfaces such as inclined and cylindrical surfaces and interrupted drilling. Also reduces burrs st the hole exit. Improves Machining Stability Achieves high rigidity by employing RS Thinning, which ensures thick web at the bottom. Holder Dimensions Series (1,5D) Series (3D) Series (5D) Series (8D) Series (12D) Related Drill Head Shank Cat. No. Stock Dimensions Stock Dimensions Stock Dimensions Stock Dimensions Stock Dimensions Drill Heads 0 D 11 0d 13 S L 12 0d2 M3 L 12 M5 L 12 M8 L 12 12D L 12 0d2 MFS 12,0 2,2 SMDH 120 o 91 25,5 20 107,2 43,5 132,2 68,5 1200 1249 12,5 2,3 16 48 SMDH 125 o 91 25,5 20 107,3 43,5 132,3 68,5 1250 1299 13,0 2,4 SMDH 130 o 92 27,5 20 112,4 46,5 142,4 73,5 1300 1349 14,0 2,5 SMDH 140 o 96 31,5 20 119,0 52,5 149,0 81,5 194,0 124,5 238,5 168,5 20 1350 1450 15,0 2,7 SMDH 150 o 100 32,0 25 129,2 55,0 159,2 86,0 204,2 133,0 253,0 180,0 25 1451 1550 16,0 2,9 20 50 SMDH 160 o 103 35,0 25 134,4 59,0 169,4 92,0 214,4 141,0 265,5 192,0 25 1551 1650 17,0 3,1 SMDH 170 o 105 35,5 25 139,6 62,5 174,6 97,5 224,6 150,5 278,1 203,5 25 1651 1750 18,0 3,3 SMDH 180 o 107 39,7 25 144,8 66,5 179,8 103,5 229,8 158,5 290,5 215,5 25 1751 1850 19,0 3,5 SMDH 190 o 115 40,5 30 160,1 69,5 195,0 108,5 255,0 167,5 309,1 228,5 30 1851 1950 20,0 3,6 SMDH 200 o 118 43,0 30 160,1 73,0 200,1 114,0 265,1 175,0 321,4 240,0 30 1951 2050 21,0 3,8 25 56 SMDH 210 o 119 44,0 30 160,3 76,0 200,3 119,0 270,3 184,0 333,9 252,0 30 2051 2150 22,0 4,0 SMDH 220 o 121 47,0 30 165,1 80,0 205,1 125,0 275,1 192,0 347,0 264,0 30 2151 2280 23,0 4,2 SMDH 230 o 122 46,5 30 164,8 82,5 214,8 129,5 284,8 200,5 359,0 275,5 30 2281 2380 24,0 4,4 SMDH 240 o 129 49,5 37 174,6 86,5 224,6 135,5 299,6 208,5 376,1 284,5 37 2381 2480 25,0 4,6 SMDH 250 o 129 49,0 37 174,6 88,0 229,6 140,0 304,6 217,0 388,4 300,0 37 2481 2580 26,0 4,7 SMDH 260 o 132 52,0 37 179,7 92,0 234,7 146,0 314,7 225,0 2581 2680 27,0 4,9 32 60 SMDH 270 o 133 53,0 37 179,9 94,0 239,9 151,0 324,9 234,0 2681 2780 28,0 5,1 SMDH 280 o 135 54,5 37 185,1 96,5 245,1 156,5 330,1 241,5 2781 2880 29,0 5,3 SMDH 290 o 136 55,5 37 190,3 99,5 250,3 161,5 340,3 250,5 2881 2980 30,0 5,5 SMDH 300 o 139 58,5 37 190,5 104,5 260,5 167,5 350,5 259,5 2981 3050 Drill order description example: SMDH210M3, drill heads a K63 I Recommended Torque Spare Parts Запасные части Sumitomo и комплектующие Screw Applicable Insert Screw Wrench Applicable Holder ,P P J BXD 02208 IP 0,8 1,0 SMDT 1200 1550 MFS BXD 02208 IP TRDR 08 IP SMDH 120 150 BXD 02509 IP 0,9 1,2 SMDT 1551 1850 MFS BXD 02509 IP TRDR 10 IP SMDH 160 180 BXD 03011 IP 1,8 2,4 SMDT 1851 2150 MFS BXD 03011 IP TRDR 15 IP SMDH 190 210 BXD 03512 IP 2,8 3,7 SMDT 2151 2480 MFS BXD 03512 IP TRDR 15 IP SMDH 220 240 BXD 04014 IP 4,1 5,5 SMDT 2481 2780 MFS BXD 04014 IP TRDR 20 IP SMDH 250 270 BXD 04515 IP 5,0 6,6 SMDT 2781 3050 MFS BXD 04515 IP TRDR 25 IP SMDH 280 300 K60 = Euro stock o = Japan stock Recommended Tightening Torque (N m)
