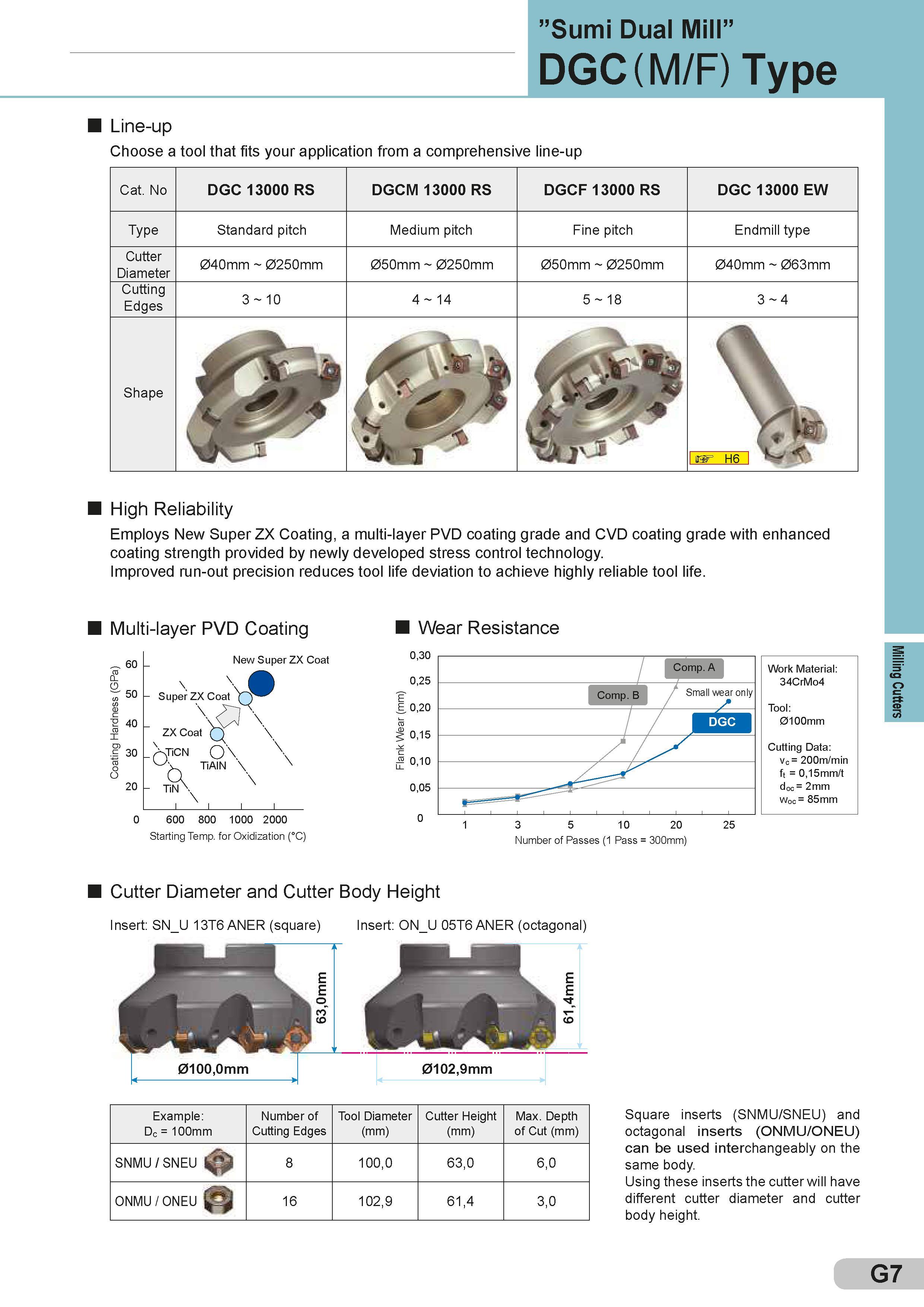

”Sumi Dual Mill” DGC (M/F) Type Line-up Choose a tool that fits your application from a comprehensive line-up Cat. No DGC 13000 RS DGCM 13000 RS DGCF 13000 RS DGC 13000 EW Type Standard pitch Medium pitch Fine pitch Endmill type Cutter Diameter 040mm 0250mm 050mm 0250mm 050mm 0250mm 040mm 063mm Cutting Edges 3 10 4 14 5 18 3 4 Shape 0 0 High Reliability Employs New Super ZX Coating, a multi-layer PVD coating grade and CVD coating grade with enhanced coating strength provided by newly developed stress control technology. Improved run-out precision reduces tool life deviation to achieve highly reliable tool life. Multi-layer PVD Coating Wear Resistance „ 60 CO Q 0 r 50 w 0 "F 40 co m O) J= 30 to c O 20 New Super ZX Coat \ \ Super ZX Coat ZX Coat \ XliCN 0\ \ TiAlN \ x Q \ TiN \ I I I I 600 800 1000 2000 Starting Temp. for Oxidization (°C) Work Material: 34CrMo4 Tool: 0100mm Cutting Data: vc = 200m/min ft = 0,15mm/t doc = 2mm woc = 85mm Cutter Diameter and Cutter Body Height Insert: SN U 13T6 ANER (square) Insert: ON U 05T6 ANER (octagonal) 0102,9mm 0 Example: Dc = 100mm Number of Cutting Edges Tool Diameter (mm) Cutter Height (mm) Max. Depth of Cut (mm) SNMU/SNEU 8 100,0 63,0 6,0 ONMU/ONEU 16 102,9 61,4 3,0 Square inserts (SNMU/SNEU) and octagonal inserts (ONMU/ONEU) can be used interchangeably on the same body. Using these inserts the cutter will have different cutter diameter and cutter body height. G7 Milling Cutters
