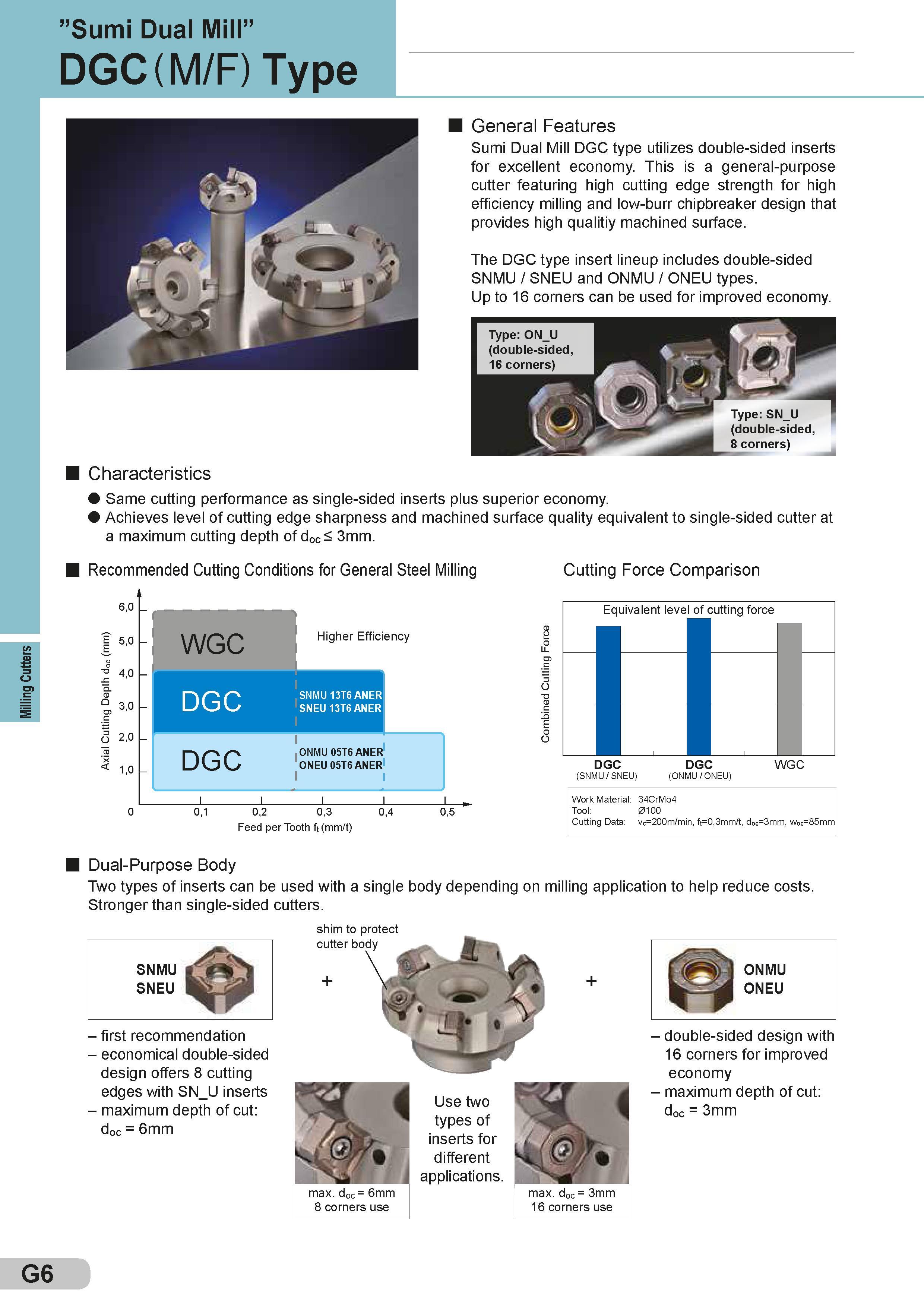

Milling Cutters ”Sumi Dual Mill” DGC (M/F, Type General Features Sumi Dual Mill DGC type utilizes double-sided inserts for excellent economy. This is a general-purpose cutter featuring high cutting edge strength for high efficiency milling and low-burr chipbreaker design that provides high qualitiy machined surface. The DGC type insert lineup includes double-sided SNMU / SNEU and ONMU / ONEU types. Up to 16 corners can be used for improved economy. Type: SN U (double-sided, 8 corners) Characteristics Same cutting performance as single-sided inserts plus superior economy. Achieves level of cutting edge sharpness and machined surface quality equivalent to single-sided cutter at a maximum cutting depth of doc < 3mm. Recommended Cutting Conditions for General Steel Milling Cutting Force Comparison 6,0 5.0 4.0 3.0 2.0 1,0 Higher Efficiency DGC SNMU 13T6 ANER SNEU 13T6 ANER DGC (ONMU / ONEU, 0,1 0,2 0,3 0,4 Feed per Tooth ft (mm/t, 0,5 Work Material: 34CrMo4 Tool: 0100 Cutting Data: vc=200m/min, ft=0,3mm/t, doc=3mm, woc=85mm Dual-Purpose Body Two types of inserts can be used with a single body depending on milling application to help reduce costs. Stronger than single-sided cutters. shim to protect cutter body first recommendation economical double-sided design offers 8 cutting edges with SN U inserts maximum depth of cut: doc = 6mm + + Use two types of inserts for different applications. ONMU ONEU - double-sided design with 16 corners for improved economy - maximum depth of cut: doc = 3mm 0 G6
