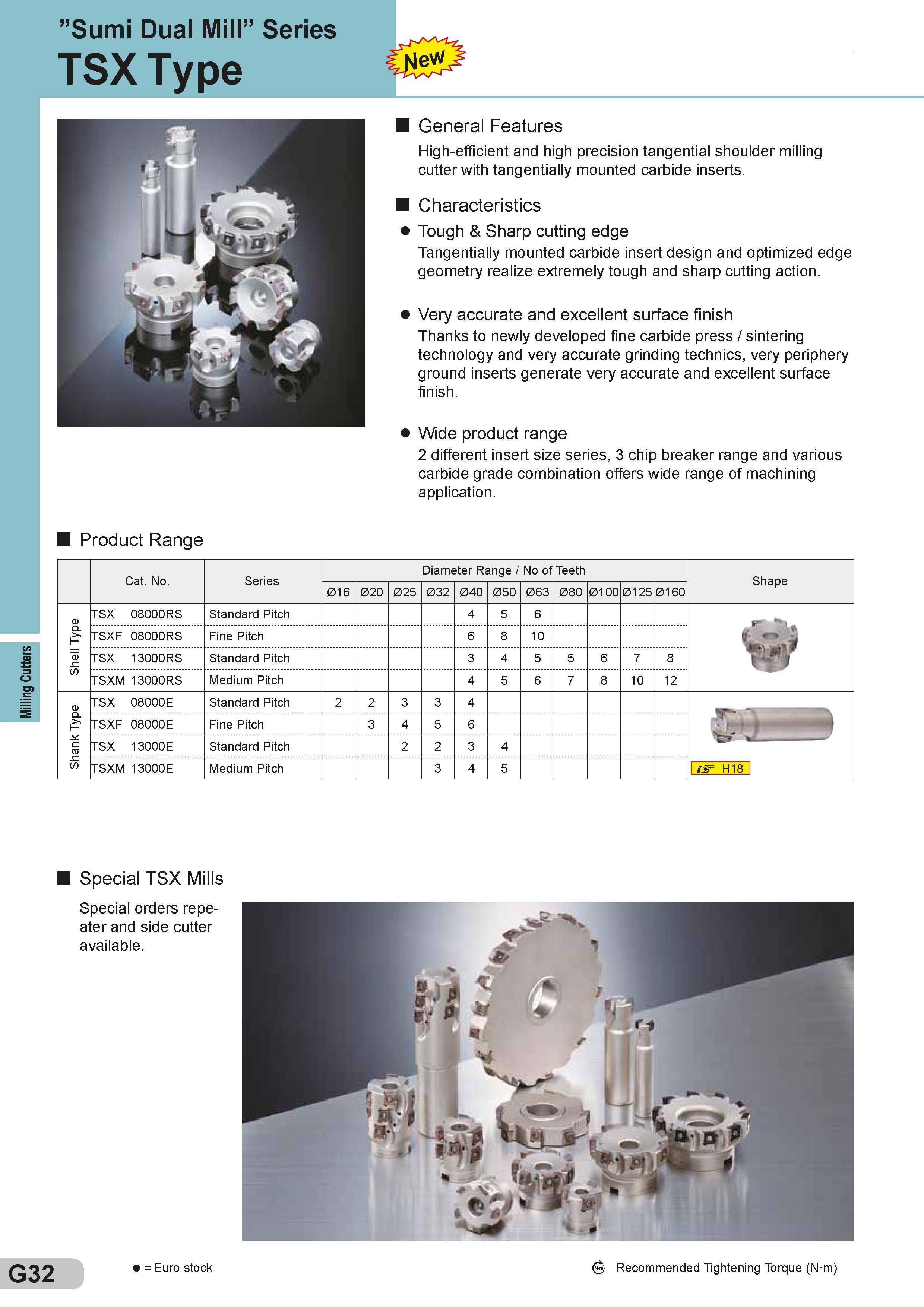

Milling Cutters ”Sumi Dual Mill” Series TSX Type General Features High-efficient and high precision tangential shoulder milling cutter with tangentially mounted carbide inserts. Characteristics Tough & Sharp cutting edge Tangentially mounted carbide insert design and optimized edge geometry realize extremely tough and sharp cutting action. Very accurate and excellent surface finish Thanks to newly developed fine carbide press / sintering technology and very accurate grinding technics, very periphery ground inserts generate very accurate and excellent surface finish. Wide product range 2 different insert size series, 3 chip breaker range and various carbide grade combination offers wide range of machining application. Product Range Cat. No. Series Diameter Range / No of Teeth Shape 016 020 025 032 040 050 063 080 0100 0125 0160 Shell Type TSX 08000RS Standard Pitch 4 5 6 -if w TSXF 08000RS Fine Pitch 6 8 10 TSX 13000RS Standard Pitch 3 4 5 5 6 7 8 TSXM 13000RS Medium Pitch 4 5 6 7 8 10 12 Shank Type TSX 08000E Standard Pitch 2 2 3 3 4 TSXF 08000E Fine Pitch 3 4 5 6 TSX 13000E Standard Pitch 2 2 3 4 TSXM 13000E Medium Pitch 3 4 5 H18 Special TSX Mills Special orders repeater and side cutter available. G32 = Euro stock Recommended Tightening Torque (N m)
