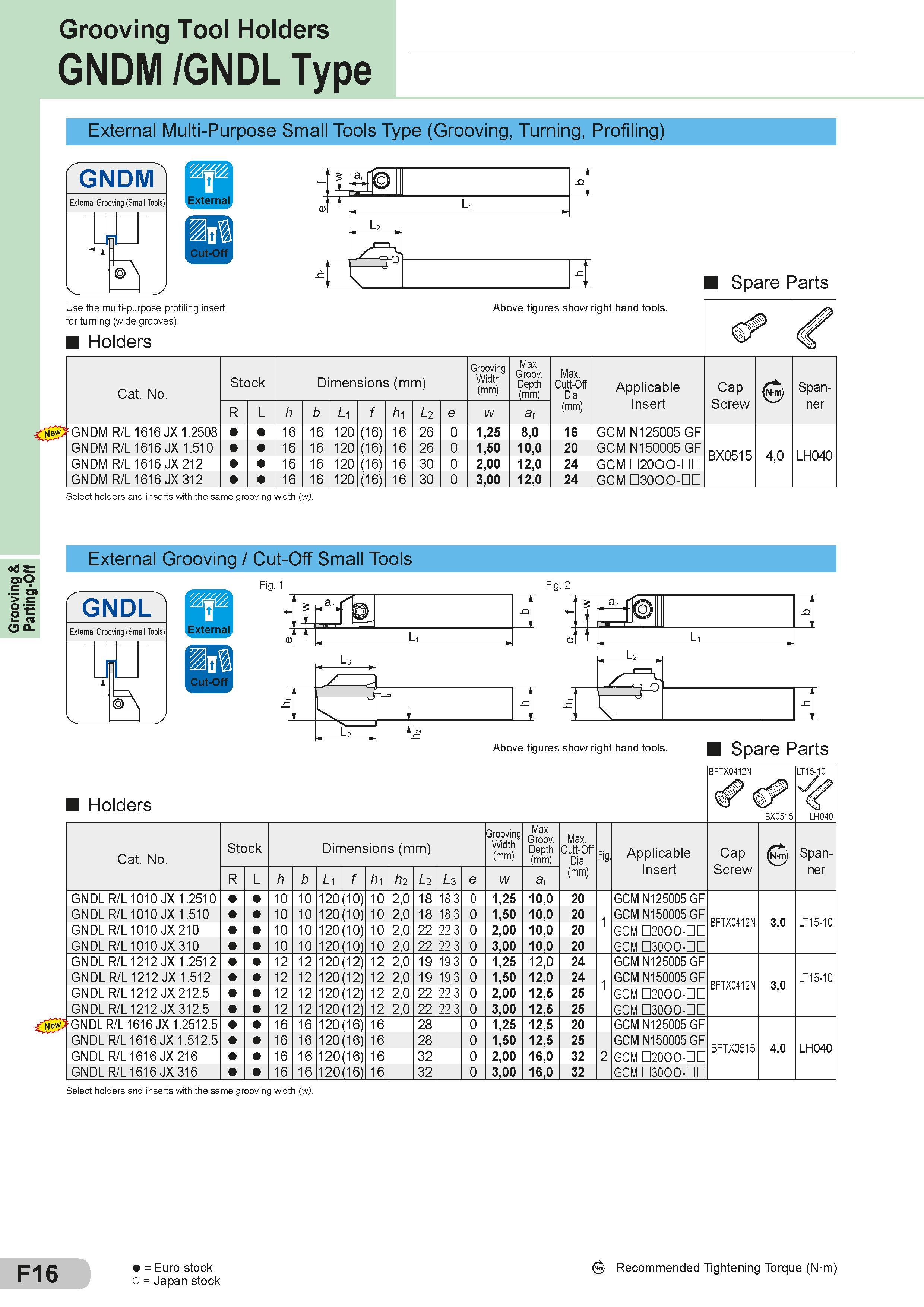

Grooving Tool Holders GNDM /GNDL Type External Multi-Purpose Small Tools Type (Grooving, Turning, Profiling) GNDM External Grooving (Small Tools) w ar P "t Li 1 I Spare Parts Запасные части Sumitomo и комплектующие Use the multi-purpose profiling insert :or turning (wide grooves). Above figures show right hand tools На эскизе сверху показано правое исполнение инструмента Holders w % Cat. No. Stock Dimensions (mm) Размеры указаны в мм Grooving Width (mm) Max. Groov. Depth (mm) Max. Cutt-Off Dia Applicable Cap m) Span- R L h b L1 f h1 L2 e w ar (mm) Insert Screw ner GNDM R/L 1616 JX 1.2508 16 16 120 (16) 16 26 0 1,25 8,0 16 GCM N125005 GF GNDM R/L 1616 JX 1.510 16 16 120 (16) 16 26 0 1,50 10,0 20 GCM N150005 GF BX0515 4,0 LH040 GNDM R/L 1616 JX 212 16 16 120 (16) 16 30 0 2,00 12,0 24 GCM 2000- GNDM R/L 1616 JX 312 16 16 120 (16) 16 30 0 3,00 12,0 24 GCM 3Q00- Select holders and inserts with the same grooving width (w). 00 3= o O .£ SB cv o Q. External Grooving / Cut-Off Small Tools Fig. 1 Fig. 2 L, Above figures show right hand tools На эскизе сверху показано правое исполнение инструмента Spare Parts Запасные части Sumitomo и комплектующие Holders BFTX0412N BX0515 LT15-10 LH040 Cat. No. Stock Dimensions (mm) Размеры указаны в мм Grooving Width (mm) Max. Groov. Depth (mm) Max. Cutt-Off Dia (mm) Fig Applicable Insert Cap Screw Span- ner R L h b L1 f h1 h2 L2 L3 e w ar GNDL R/L 1010 JX 1.2510 10 10 120 (10) 10 2,0 18 18,3 0 1,25 10,0 20 GCM N125005 GF GNDL R/L 1010 JX 1.510 10 10 120 (10) 10 2,0 18 18,3 0 1,50 10,0 20 1 GCM N150005 GF BFTX0412N 3,0 LT15-10 GNDL R/L 1010 JX 210 10 10 120 (10) 10 2,0 22 22,3 0 2,00 10,0 20 GCM 2000- GNDL R/L 1010 JX 310 10 10 120 (10) 10 2,0 22 22,3 0 3,00 10,0 20 GCM 3000- GNDL R/L 1212 JX 1.2512 12 12 120 (12) 12 2,0 19 19,3 0 1,25 12,0 24 GCM N125005 GF GNDL R/L 1212 JX 1.512 12 12 120 (12) 12 2,0 19 19,3 0 1,50 12,0 24 1 GCM N150005 GF BFTX0412N 3,0 LT15-10 GNDL R/L 1212 JX 212.5 12 12 120 (12) 12 2,0 22 22,3 0 2,00 12,5 25 GCM 2000- GNDL R/L 1212 JX 312.5 12 12 120 (12) 12 2,0 22 22,3 0 3,00 12,5 25 GCM 3000- GNDL R/L 1616 JX 1.2512.5 16 16 120 (16) 16 28 0 1,25 12,5 20 GCM N125005 GF GNDL R/L 1616 JX 1.512.5 16 16 120 (16) 16 28 0 1,50 12,5 25 GCM N150005 GF BFTX0515 4,0 LH040 GNDL R/L 1616 JX 216 16 16 120 (16) 16 32 0 2,00 16,0 32 2 GCM 2000- GNDL R/L 1616 JX 316 16 16 120 (16) 16 32 0 3,00 16,0 32 GCM 3000-
