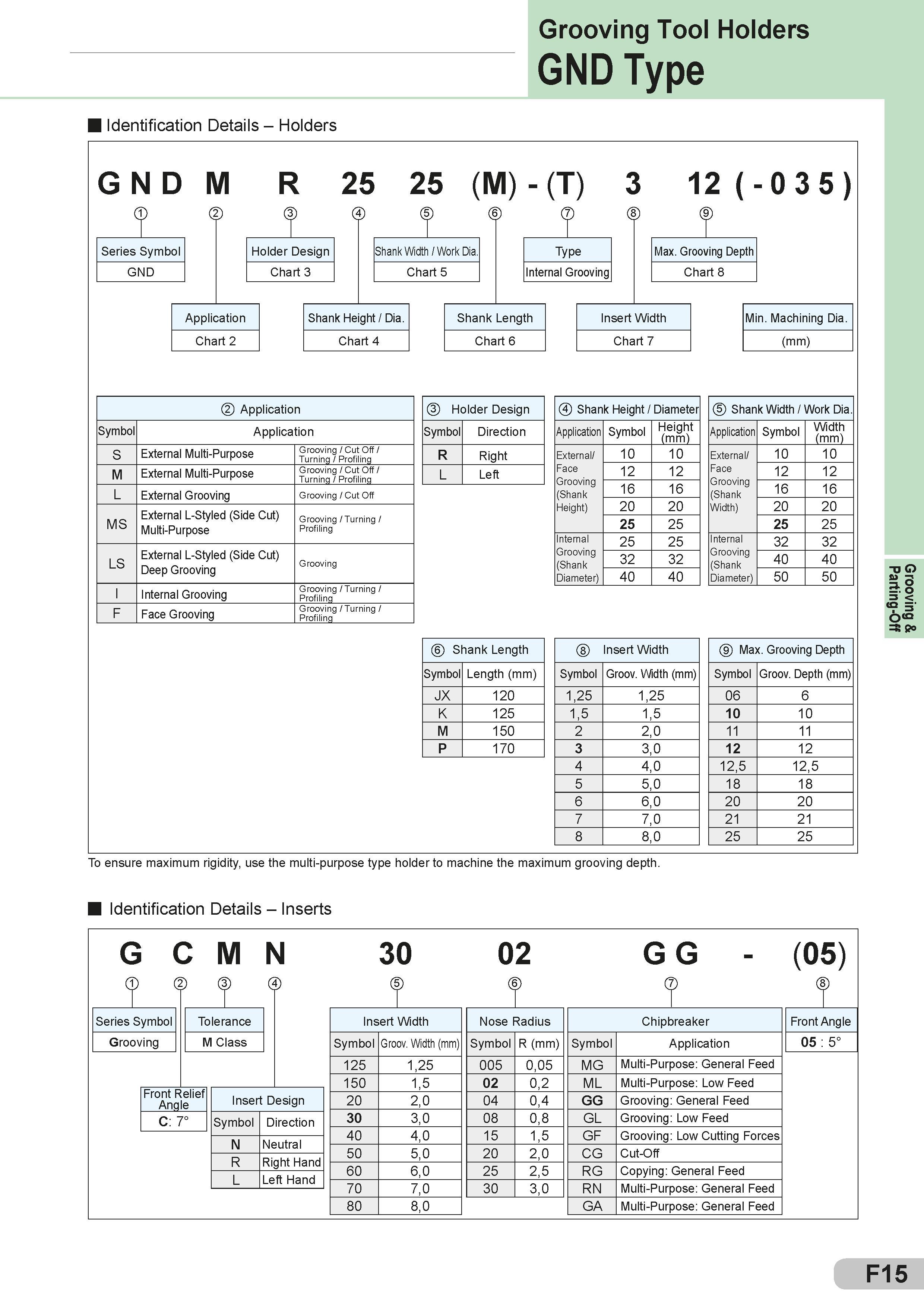

Grooving Tool Holders GND Type Identification Details - Holders G N D M R 25 25 (M) - (T) 3 12 ( - 0 3 5 ) Series Symbol GND Holder Design Chart 3 Shank Width / Work Dia. Chart 5 Type Internal Grooving Max. Grooving Depth Chart 8 Application Shank Height / Dia. Shank Length Insert Width Chart 2 Chart 4 Chart 6 Chart 7 Min. Machining Dia. (mm) (3) Holder Design Symbol Direction R Right L Left Application Symbol Application S External Multi-Purpose Grooving / Cut Off / Turninq / Profiling M External Multi-Purpose Grooving / Cut Off / Turninq / Profiling L External Grooving Grooving / Cut Off MS External L-Styled (Side Cut) Multi-Purpose Grooving / Turning / Profiling LS External L-Styled (Side Cut) Deep Grooving Grooving I Internal Grooving Grooving / Turning / Profiling F Face Grooving Grooving / Turning / Profiling Shank Height / Diameter Shank Width / Work Dia. Application Symbol Height (mm) Application Symbol Width (mm) External/ 10 10 External/ 10 10 Face Grooving (Shank Height) 12 12 Face Grooving (Shank Width) 12 12 16 16 16 16 20 20 20 20 25 25 25 25 Internal Grooving (Shank Diameter) 25 25 Internal Grooving (Shank Diameter) 32 32 32 32 40 40 40 40 50 50 Shank Length Symbol Length (mm) JX 120 K 125 M 150 P 170 Insert Width Symbol Groov. Width (mm) 1,25 1,25 1,5 1,5 2 2,0 3 3,0 4 4,0 5 5,0 6 6,0 7 7,0 8 8,0 Max. Grooving Depth Symbol Groov. Depth (mm) 06 6 10 10 11 11 12 12 12,5 12,5 18 18 20 20 21 21 25 25 To ensure maximum rigidity, use the multi-purpose type holder to machine the maximum grooving depth. Identification Details - Inserts GCMN a Series Symbol Grooving Tolerance M Class 30 Front Relief Angle Insert Design C: 7° Symbol Direction N Neutral R Right Hand L Left Hand 02 1 G G (05) Insert Width Nose Radius Chipbreaker Front Angle Symbol Groov. Width (mm) Symbol R (mm) Symbol Application 05 : 5° 125 1,25 005 0,05 MG Multi-Purpose: General Feed 150 1,5 02 0,2 ML Multi-Purpose: Low Feed 20 2,0 04 0,4 GG Grooving: General Feed 30 3,0 08 0,8 GL Grooving: Low Feed 40 4,0 15 1,5 GF Grooving: Low Cutting Forces 50 5,0 20 2,0 CG Cut-Off 60 6,0 25 2,5 RG Copying: General Feed 70 7,0 30 3,0 RN Multi-Purpose: General Feed 80 8,0 GA Multi-Purpose: General Feed F15 Grooving & Parting-Off
